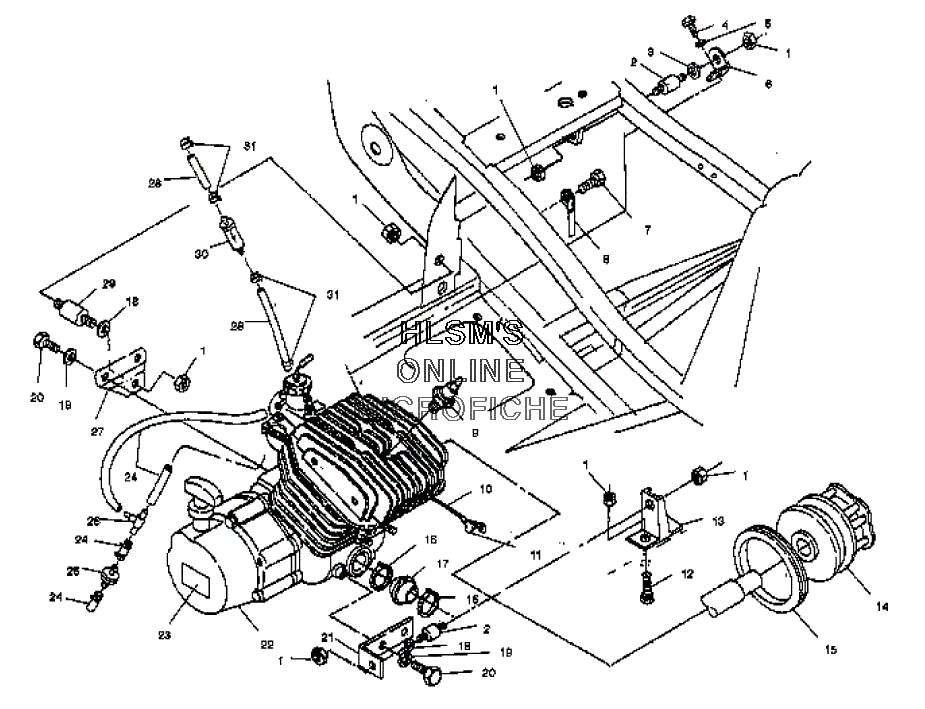

MOUNTING - ENGINE для Polaris TRAIL BLAZER 250 (A03BA25CA) (YELLOW) - 2003 года выпуска
-
№АртикулНазвание
-
17547108 NUTNUT
-
23110026 MOUNT, MOTORMOUNT, MOTOR
-
35430802 INSULATOR, MOTOR MOUNTINSULATOR, MOTOR MOUNT
-
47512315 BOLTBOLT
-
57552901 LOCK, WASHERLOCK, WASHER
-
65244119-067 BRACKET, ENGINE MOUNT (TOP/BLACK)BRACKET, ENGINE MOUNT (TOP/BLACK)
-
77512232 BOLTBOLT
-
84010132 CABLE, GROUND ENGINECABLE, GROUND ENGINE
-
93070156 SPARKPLUGSPARKPLUG
-
104010129 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
115410346 INSULATOR, CABLE SOLENOIDINSULATOR, CABLE SOLENOID
-
127515481 BOLTBOLT
-
131040687-067 MOUNT, ENGINE (FRONT/BLACK)MOUNT, ENGINE (FRONT/BLACK)
-
141322003 DRIVE CLUTCH ASSY., BASICDRIVE CLUTCH ASSY., BASIC
-
155410749 SEAL, COVER CASESEAL, COVER CASE
-
167080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
175410421 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
187555823 WASHER (OPT)WASHER (OPT)
-
197552603 WASHERWASHER
-
207512490 SCREWSCREW
-
215242896-067 BRACKET, ENGINE MOUNT (FRONT/BLACK)BRACKET, ENGINE MOUNT (FRONT/BLACK)
-
223084717 ENGINE, SHORT BLOCK (SEE FOOTNOTE)ENGINE, SHORT BLOCK (SEE FOOTNOTE)
-
237078577 DECAL, DRAIN RECOILDECAL, DRAIN RECOIL
-
248360009-600 FUEL LINE (1/8 ID, 600 CM.) (OPT)FUEL LINE (1/8 ID, 600 CM.) (OPT)
-
257051011 VENT, CHECKVALVEVENT, CHECKVALVE
-
267052005 FITTING, TEEFITTING, TEE
-
275242897-067 BRACKET, ENGINE MOUNT (REAR/BLACK)BRACKET, ENGINE MOUNT (REAR/BLACK)
-
288450003-1525 FUEL LINE (1/4 ID, 1525 CM.) (OPT)FUEL LINE (1/4 ID, 1525 CM.) (OPT)
-
293110028 MOUNT, MOTORMOUNT, MOTOR
-
302530009 FILTER, SMALL IN-LINEFILTER, SMALL IN-LINE
-
317080003 CLAMP, HOSECLAMP, HOSE
