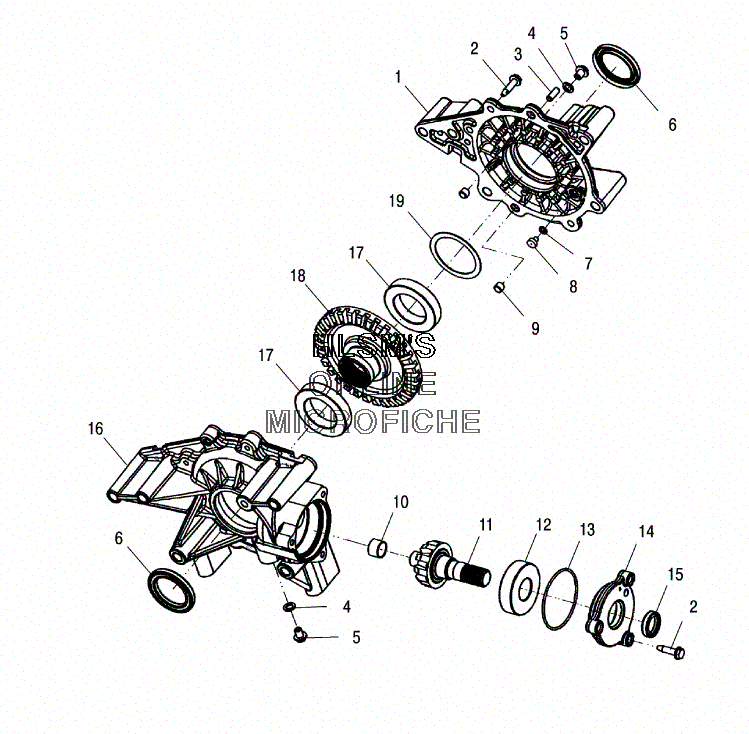

GEARCASE - REAR для Polaris SPORTSMAN 700 4X4 (A03CH68AA) (CAMO GREEN METALLIC) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3233876 COVER, OUTPUT (LEFT)
    COVER, OUTPUT (LEFT)
  • 2
    3233846 SCREW, ROLL FORMING
    SCREW, ROLL FORMING
  • 3
    3233524 TUBE, VENT
    TUBE, VENT
  • 4
    3233254 PLUG, WASHER
    PLUG, WASHER
  • 5
    3233777 PLUG, HEX FLANGE
    PLUG, HEX FLANGE
  • 6
    3233878 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 7
    3233583 SHIM (.450 X .265) (OPT.)
    SHIM (.450 X .265) (OPT.)
  • 8
    3233582 THRUST BUTTON
    THRUST BUTTON
  • 9
    3233529 PIPE, KNOCK
    PIPE, KNOCK
  • 10
    3233577 BUSHING
    BUSHING
  • 11
    3233881 SHAFT, PINION STRAIGHT BVL (10 TEETH)
    SHAFT, PINION STRAIGHT BVL (10 TEETH)
  • 12
    3233714 BEARING, BALL
    BEARING, BALL
  • 13
    3233588 O-RING
    O-RING
  • 14
    3233882 COVER, INPUT HOUSING (REAR)
    COVER, INPUT HOUSING (REAR)
  • 15
    3233785 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 16
    3233880 GEARCASE, HOUSING
    GEARCASE, HOUSING
  • 17
    3233268 BEARING, BALL
    BEARING, BALL
  • 18
    3233879 GEAR STRAIGHT BEVEL (31 TEETH)
    GEAR STRAIGHT BEVEL (31 TEETH)
  • 19
    3233581 SHIM 3.1 X 2.5 (OPT.)
    SHIM 3.1 X 2.5 (OPT.)
  • 19
    1341352 GEARCASE ASSY. (REAR)
    GEARCASE ASSY. (REAR)
