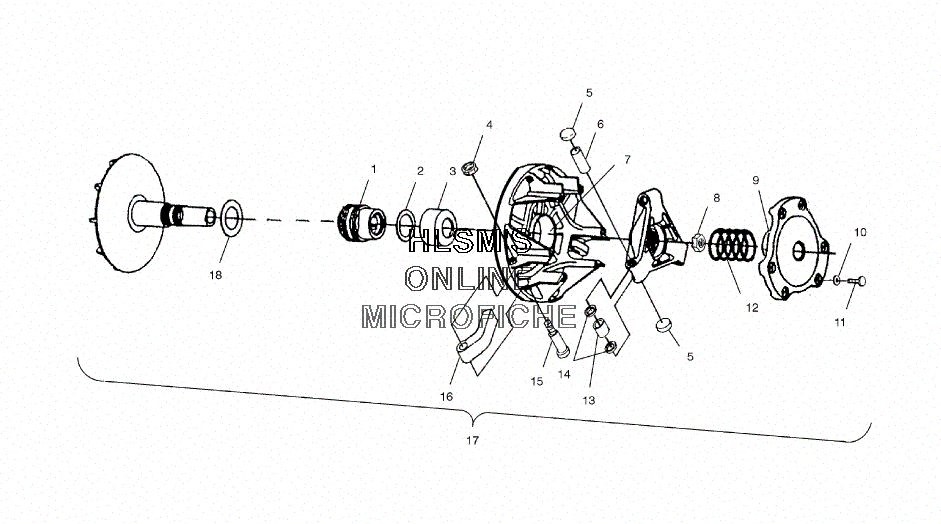

CLUTCH - DRIVE для Polaris SPORTSMAN 500 HO 4X4 (A03CH50AD) (SHADOW GRASS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1520231 CLUTCH, DRIVE 1-WAY HLRD
    CLUTCH, DRIVE 1-WAY HLRD
  • 2
    7556202 WASHER, BRASS
    WASHER, BRASS
  • 3
    5631119 SPACER, PM
    SPACER, PM
  • 4
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 5
    5431936 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 6
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 7
    3585712 BEARING
    BEARING
  • 8
    7547130 LIMITING, NUT EBS KIT
    LIMITING, NUT EBS KIT
  • 9
    3576510 BEARING, COVER
    BEARING, COVER
  • 10
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 11
    7512176 BOLT
    BOLT
  • 12
    7041157 SPRING, CLUTCH
    SPRING, CLUTCH
  • 13
    1321457 ROLLER/ BUSHING ASSY.
    ROLLER/ BUSHING ASSY.
  • 14
    5430945 WASHER
    WASHER
  • 15
    7512266 BOLT, SPECIAL
    BOLT, SPECIAL
  • 16
    5630710 WT, SHIFT 10WH
    WT, SHIFT 10WH
  • 17
    1321706 CLUTCH DRIVE, BRAKING (INCL. 1-11, 13-15, 18)
    CLUTCH DRIVE, BRAKING (INCL. 1-11, 13-15, 18)
  • 18
    7556204 WASHER, PTFE
    WASHER, PTFE
