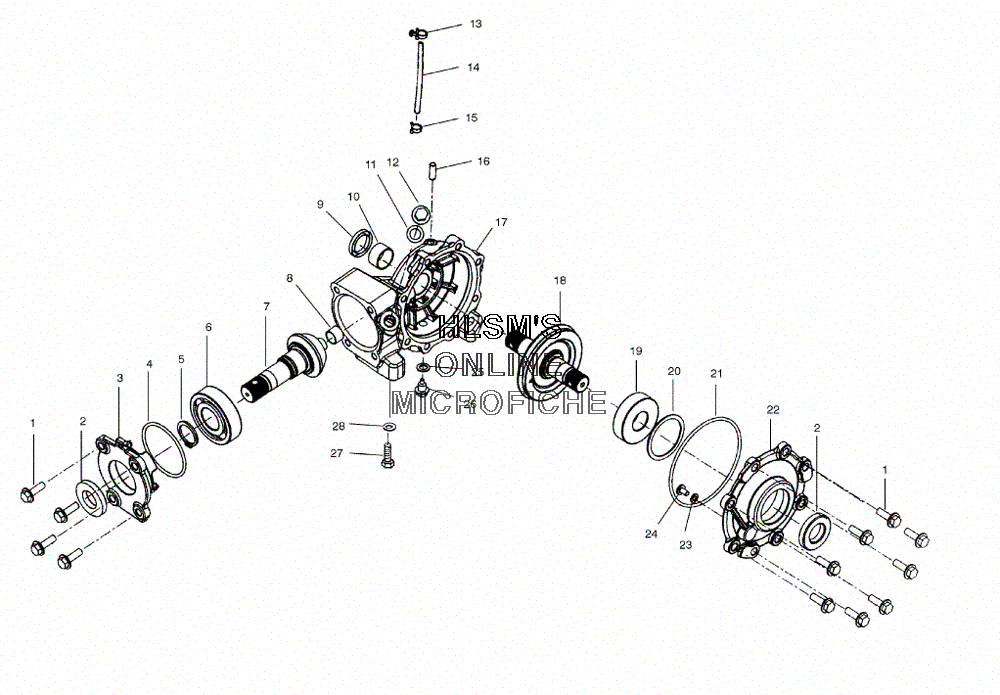

GEARCASE - FRONT для Polaris SPORTSMAN 500 HO 4X4 (A03CH50AA) (CAMO GREEN METALLIC) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3233252 SCREW
    SCREW
  • 2
    3233248 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 3
    3233701 INPUT, COVER HOUSING (FRONT)
    INPUT, COVER HOUSING (FRONT)
  • 4
    3233700 O-RING
    O-RING
  • 5
    3233699 RING, RETAINING
    RING, RETAINING
  • 6
    3233589 BEARING, BALL
    BEARING, BALL
  • 7
    3233726 PINION, INPUT (14 TEETH)
    PINION, INPUT (14 TEETH)
  • 8
    3233541 BUSHING, GARLOCK
    BUSHING, GARLOCK
  • 9
    3233319 SEAL
    SEAL
  • 10
    3233697 BUSHING, GARLOCK
    BUSHING, GARLOCK
  • 11
    3233324 WASHER
    WASHER
  • 12
    3233711 PLUG, OIL FILL
    PLUG, OIL FILL
  • 13
    7080756 CLIP, SNAP-IN
    CLIP, SNAP-IN
  • 14
    8450003-1525 FUEL, LINE (1/4 ID) (1525 CM.) (OPT.)
    FUEL, LINE (1/4 ID) (1525 CM.) (OPT.)
  • 15
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    3233524 TUBE, VENT
    TUBE, VENT
  • 17
    3233696 GEARCASE
    GEARCASE
  • 18
    3233725 SHAFT, OUTPUT (29 TEETH)
    SHAFT, OUTPUT (29 TEETH)
  • 19
    3233020 BEARING
    BEARING
  • 20
    3233554 SHIM (OPT.)
    SHIM (OPT.)
  • 21
    3233693 O-RING
    O-RING
  • 22
    3233724 COVER, OUTPUT
    COVER, OUTPUT
  • 23
    3233583 SHIM (.450 X .265) (OPT.)
    SHIM (.450 X .265) (OPT.)
  • 24
    3233582 THRUST BUTTON
    THRUST BUTTON
  • 25
    3233254 PLUG, WASHER
    PLUG, WASHER
  • 26
    3233253 PLUG, HEX FLANGE
    PLUG, HEX FLANGE
  • 27
    7512492 SCREW
    SCREW
  • 28
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 28
    1341323 GEARCASE, ASSY. (FRONT) (INCL. 1-12, 16-26)
    GEARCASE, ASSY. (FRONT) (INCL. 1-12, 16-26)
