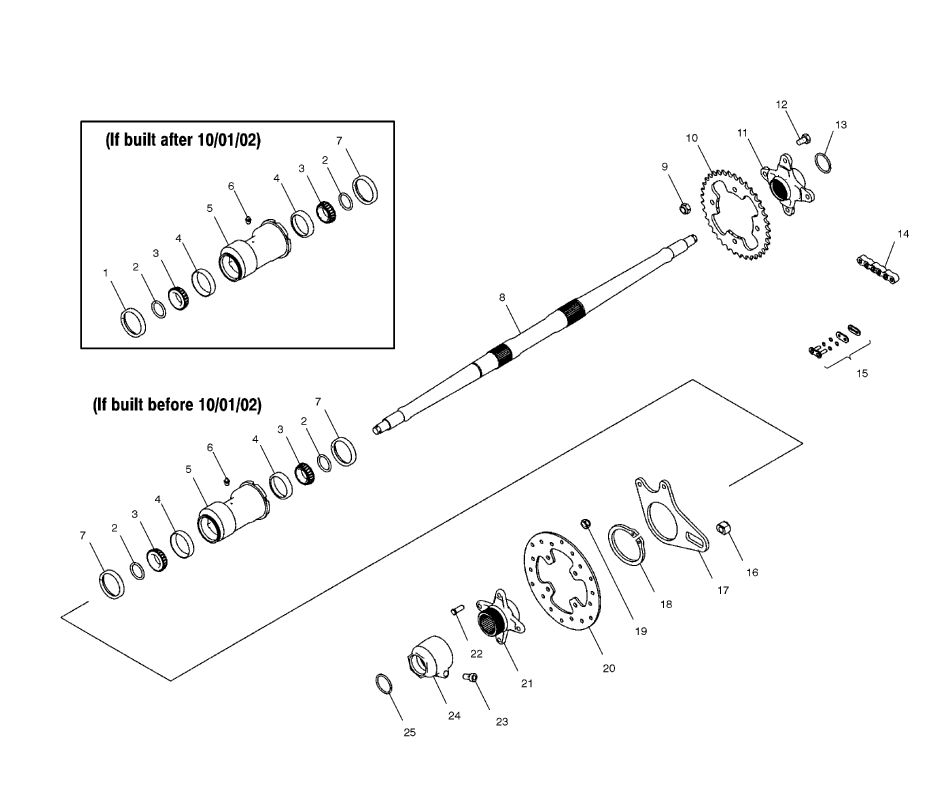

AXLE - REAR для Polaris PREDATOR 500 (A03GJ50AB) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3610105 SEAL, DOUBLE (IF BUILT AFTER 10/01/02)
    SEAL, DOUBLE (IF BUILT AFTER 10/01/02)
  • 2
    5412220 O-RING
    O-RING
  • 3
    3514393 BEARING, CONE TAPER
    BEARING, CONE TAPER
  • 4
    3514394 BEARING, CUP TAPER
    BEARING, CUP TAPER
  • 5
    5133248 HOUSING, AXLE (REAR)
    HOUSING, AXLE (REAR)
  • 6
    7080306 FITTING, LUBE W/BALL
    FITTING, LUBE W/BALL
  • 7
    3610089 SEAL, LIP (QTY. 1 USED AFTER 10/01/02)
    SEAL, LIP (QTY. 1 USED AFTER 10/01/02)
  • 8
    5133722 AXLE, REAR
    AXLE, REAR
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    3221142 SPROCKET, REAR AXLE (37 TEETH)
    SPROCKET, REAR AXLE (37 TEETH)
  • 11
    5133338 HUB, SPROCKET
    HUB, SPROCKET
  • 12
    7512405 BOLT
    BOLT
  • 13
    7670147 RING, RETAINING
    RING, RETAINING
  • 14
    3221151-094 CHAIN, O-RING 520
    CHAIN, O-RING 520
  • 15
    3225028 LINK, CONNECTOR
    LINK, CONNECTOR
  • 16
    5131759 BUSHING, CALIPER
    BUSHING, CALIPER
  • 17
    5245939 BRACKET, CALIPER MOUNT
    BRACKET, CALIPER MOUNT
  • 18
    7710516 RING, RETAINING EXTERNAL
    RING, RETAINING EXTERNAL
  • 19
    7547217 NUT
    NUT
  • 20
    5246155 DISC, BRAKE
    DISC, BRAKE
  • 21
    5133340 HUB, REAR DISC
    HUB, REAR DISC
  • 22
    7512365 SCREW, CAP
    SCREW, CAP
  • 23
    7515102 SCREW
    SCREW
  • 24
    5133428 NUT, AXLE
    NUT, AXLE
  • 25
    7710405 RING, SNAP
    RING, SNAP
