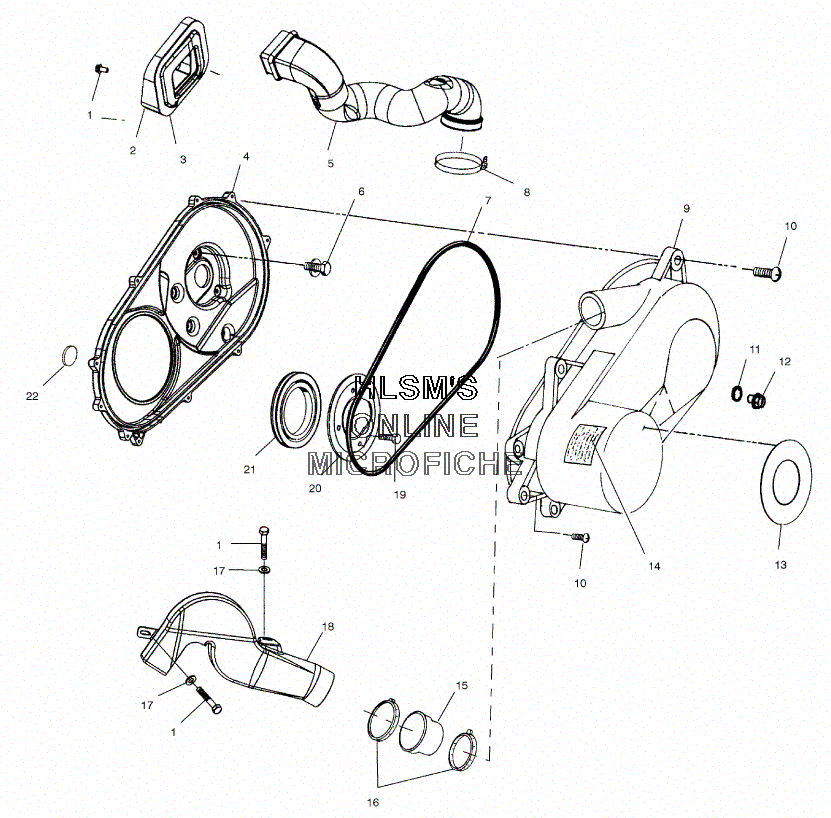

CLUTCH COVER для Polaris MAGNUM HDS 330 2X4 (A03CB32FC) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7517386 SCREW
    SCREW
  • 2
    2632116 FOAM, CLUTCH AIR INLET ASSY.
    FOAM, CLUTCH AIR INLET ASSY.
  • 3
    5433453 PLATE BACKING
    PLATE BACKING
  • 4
    2201956 CLUTCH COVER SERVICE KIT (INNER)
    CLUTCH COVER SERVICE KIT (INNER)
  • 5
    5433363 DUCT, INLET
    DUCT, INLET
  • 6
    7517599 BOLT/ WASHER
    BOLT/ WASHER
  • 7
    5521578 SEAL, CLUTCH COVER (OUTER)
    SEAL, CLUTCH COVER (OUTER)
  • 8
    7080909 CLAMP, NARROW BAND (1.77/ 2.75)
    CLAMP, NARROW BAND (1.77/ 2.75)
  • 9
    5434255-070 COVER, CLUTCH HV (OUTER/ BLACK)
    COVER, CLUTCH HV (OUTER/ BLACK)
  • 10
    7512094 SCREW
    SCREW
  • 11
    5410542 O-RING
    O-RING
  • 12
    5434264 PLUG, D
    PLUG, D
  • 13
    7074782 DECAL, AUTO.TRANSMISSION
    DECAL, AUTO.TRANSMISSION
  • 14
    7078689 DECAL, WARNING CLUTCH COVER
    DECAL, WARNING CLUTCH COVER
  • 15
    5411489 BOOT, DUCT HI FLOW
    BOOT, DUCT HI FLOW
  • 16
    7080707 CLAMP, BAND NARROW
    CLAMP, BAND NARROW
  • 17
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 18
    5434213 DUCT, AIR OUTLET
    DUCT, AIR OUTLET
  • 20
    5242046 BRACKET, CLUTCH SEAL
    BRACKET, CLUTCH SEAL
  • 21
    5410575 SEAL, COVER CASE
    SEAL, COVER CASE
  • 22
    5411795 STOPPER, CLUTCH COVER (INNER)
    STOPPER, CLUTCH COVER (INNER)
