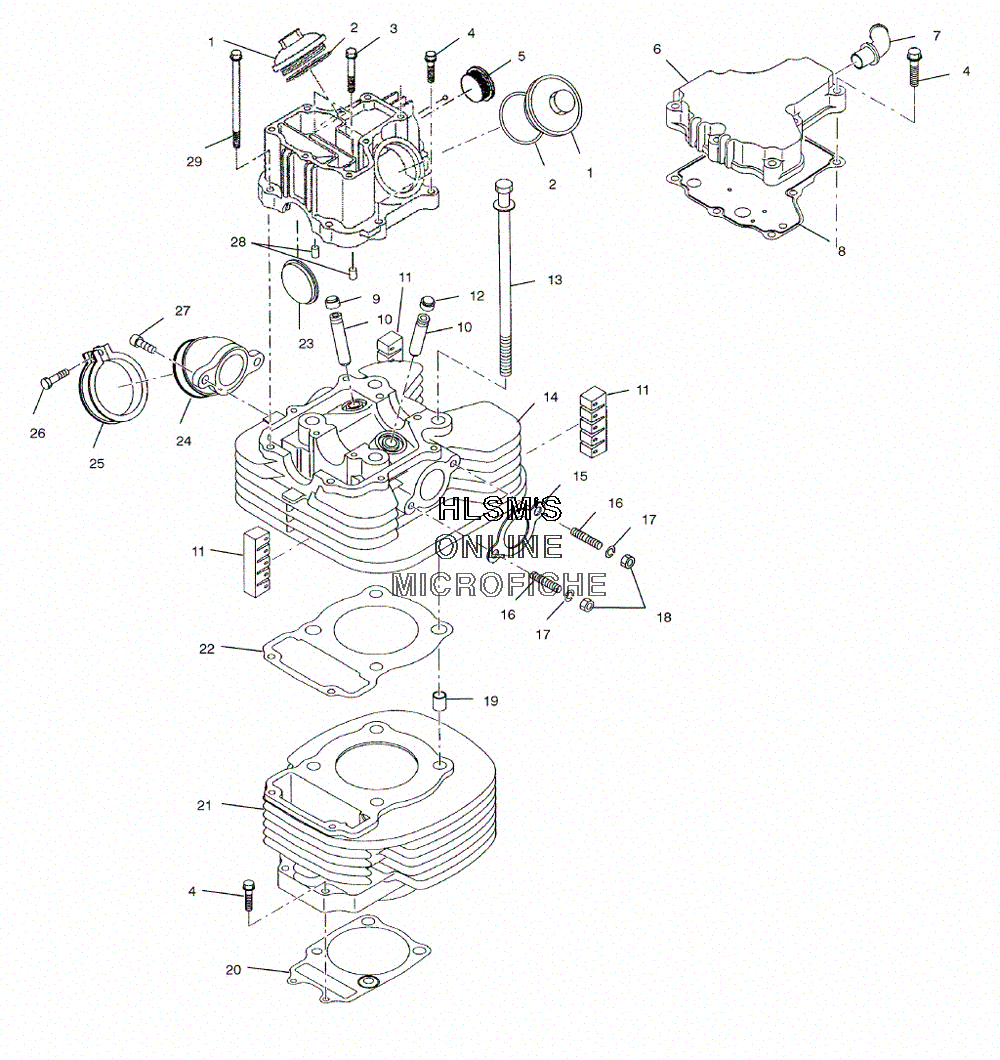

CYLINDER для Polaris MAGNUM 330 4X4 (A03CD32AC) (CAMO GREEN METALLIC) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3087259 COVER, VALVE
    COVER, VALVE
  • 2
    3086414 O-RING
    O-RING
  • 3
    3087159 BOLT, FLANGE
    BOLT, FLANGE
  • 4
    3087158 BOLT, FLANGE
    BOLT, FLANGE
  • 5
    3086417 PLUG, CYLINDER BLOCK
    PLUG, CYLINDER BLOCK
  • 6
    3087033 COVER, BREATHER
    COVER, BREATHER
  • 7
    3085850 PIPE ASSY.
    PIPE ASSY.
  • 8
    3087034 GASKET, BREATHER COVER
    GASKET, BREATHER COVER
  • 9
    3084858 SEAL, INTAKE VALVE
    SEAL, INTAKE VALVE
  • 10
    3084994 GUIDE, VALVE
    GUIDE, VALVE
  • 11
    3084798 FIN DAMPER
    FIN DAMPER
  • 12
    3084859 SEAL, EXHAUST VALVE
    SEAL, EXHAUST VALVE
  • 13
    3086418 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 14
    3087237 CYLINDER HEAD ASSY. (INCL. 3, 4, 10, 12, 14, 16)
    CYLINDER HEAD ASSY. (INCL. 3, 4, 10, 12, 14, 16)
  • 15
    3086421 GASKET, EXHAUST
    GASKET, EXHAUST
  • 16
    3085326 STUD
    STUD
  • 17
    3080530 WASHER, SPRING
    WASHER, SPRING
  • 18
    3086787 NUT
    NUT
  • 19
    3084838 PIPE KNOCK
    PIPE KNOCK
  • 20
    3086407 GASKET, CYLINDER
    GASKET, CYLINDER
  • 21
    3087236 CYLINDER UNIT
    CYLINDER UNIT
  • 22
    3087238 GASKET, HEAD
    GASKET, HEAD
  • 23
    3086416 GASKET, CAM
    GASKET, CAM
  • 24
    3087050 ADAPTER ASSY.
    ADAPTER ASSY.
  • 25
    3083166 ADAPTER BAND ASSY. (INCL. 26)
    ADAPTER BAND ASSY. (INCL. 26)
  • 26
    3081497 SCREW AND WASHER ASSY.
    SCREW AND WASHER ASSY.
  • 27
    3086786 BOLT, SOCKET HEAD
    BOLT, SOCKET HEAD
  • 28
    3086410 PIN, STRAIGHT
    PIN, STRAIGHT
  • 29
    3087160 BOLT, FLANGE
    BOLT, FLANGE
