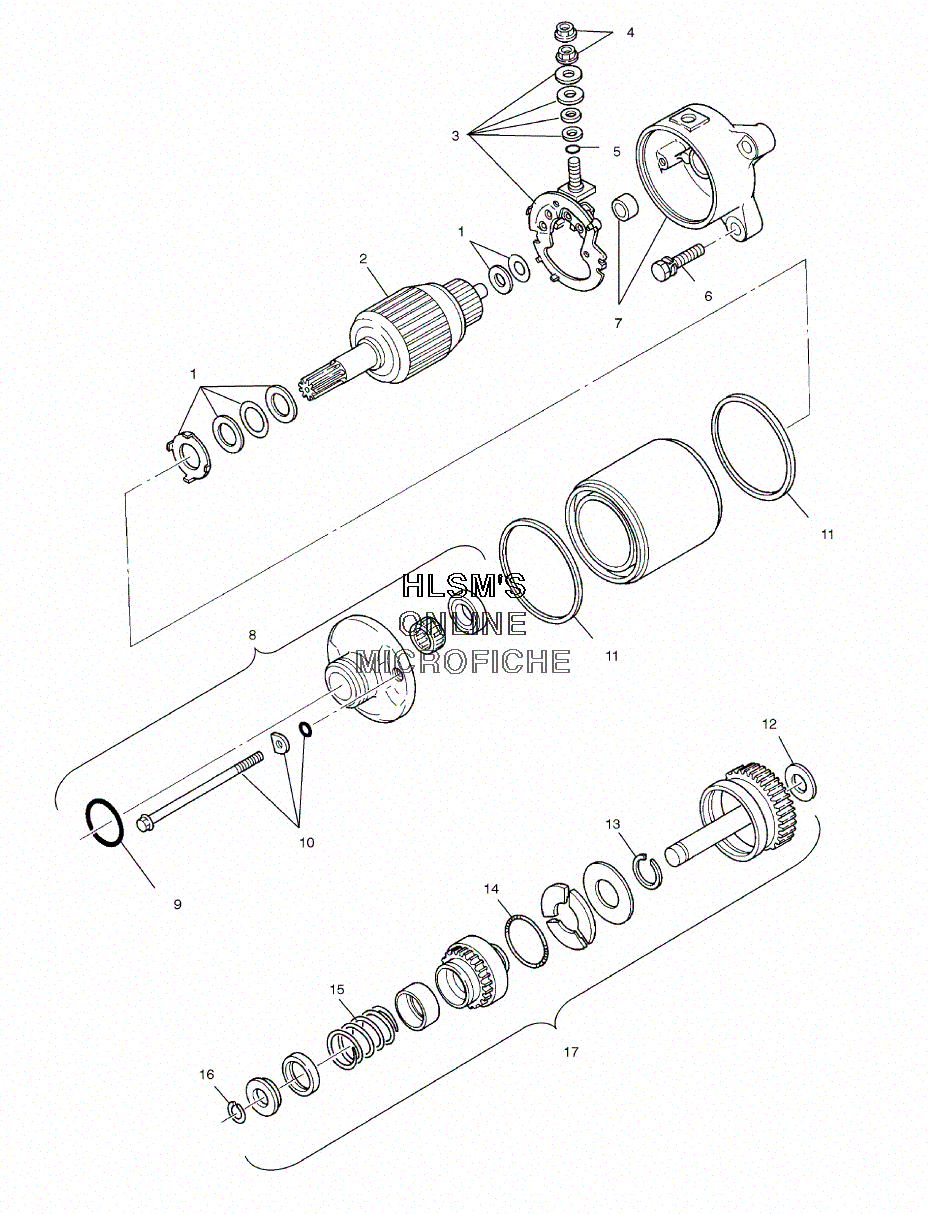

STARTING MOTOR для Polaris MAGNUM 330 4X4 (A03CD32AB) (MOSSY OAK CAMO) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3084982 WASHER SET
    WASHER SET
  • 2
    3085353 ARMATURE ASSY.
    ARMATURE ASSY.
  • 3
    3084406 BRUSH, COMPL.2 POLE
    BRUSH, COMPL.2 POLE
  • 4
    3083649 NUT, FLANGE
    NUT, FLANGE
  • 5
    3084408 O-RING
    O-RING
  • 6
    3082038 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 7
    3085034 BRACKET ASSY. (REAR)
    BRACKET ASSY. (REAR)
  • 8
    3085033 BRACKET ASSY. (FRONT) (INCL. 9)
    BRACKET ASSY. (FRONT) (INCL. 9)
  • 9
    3240114 O-RING
    O-RING
  • 10
    3084983 BOLT ASSY., SET (INCL. 5)
    BOLT ASSY., SET (INCL. 5)
  • 11
    3084405 RING, RUBBER
    RING, RUBBER
  • 12
    3083737 WASHER
    WASHER
  • 13
    3084412 CLIP
    CLIP
  • 14
    3084411 SPRING, WEIGHT
    SPRING, WEIGHT
  • 15
    3084410 SPRING, RETURN
    SPRING, RETURN
  • 16
    3084409 CLIP
    CLIP
  • 17
    3087030 ASSY., GEAR SHAFT (INCL. 12, 16)
    ASSY., GEAR SHAFT (INCL. 12, 16)
  • 17
    3084981 MOTOR, STARTING (INCL. 1, 5, 7, 11)
    MOTOR, STARTING (INCL. 1, 5, 7, 11)
