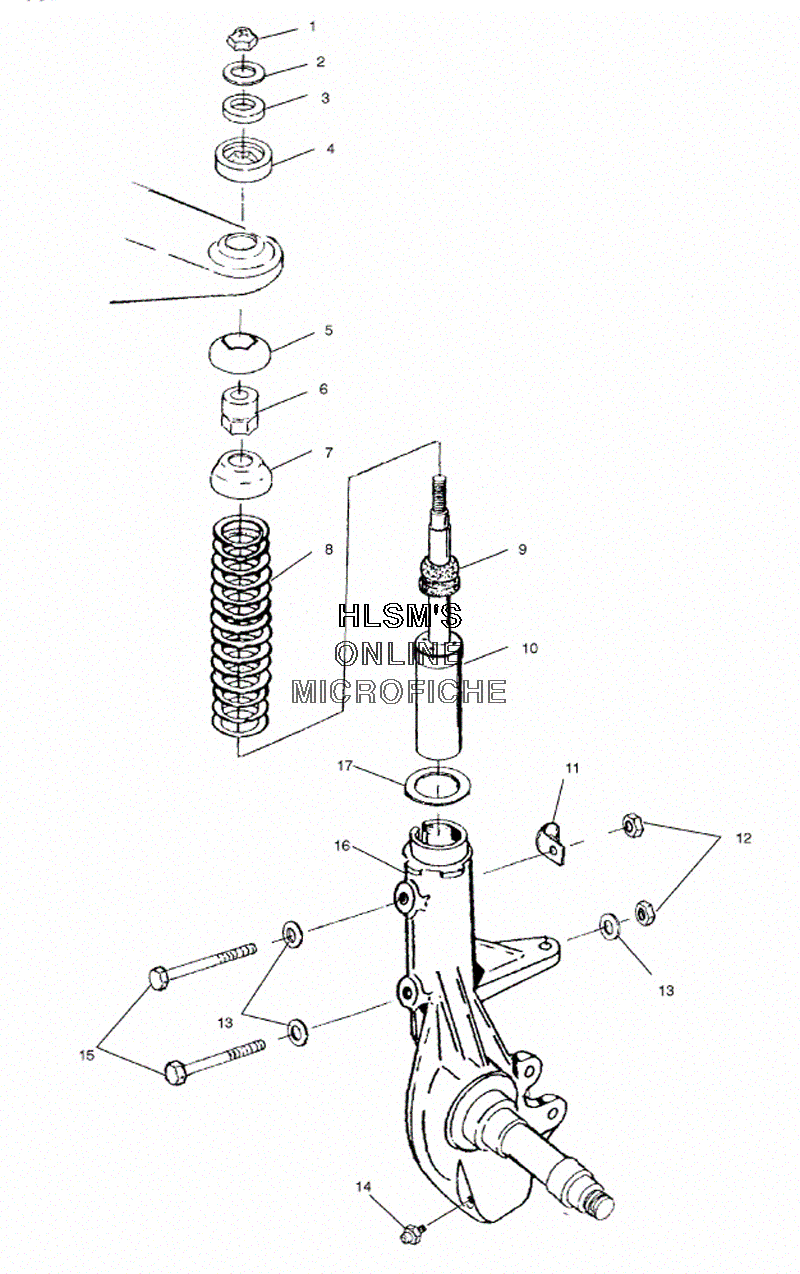

SUSPENSION - FRONT STRUT для Polaris MAGNUM 330 2X4 (A03CB32AA) - 2003 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL (TOP)PIVOT, BALL (TOP)
-
55432871 PIVOT, BALL (BOTTOM)PIVOT, BALL (BOTTOM)
-
65132062 SPACERSPACER
-
75243364 RETAINER, SPRINGRETAINER, SPRING
-
87041375-067 SPRING, COIL SHOCK (FRONT/ BLACK)SPRING, COIL SHOCK (FRONT/ BLACK)
-
95411608 BUMPER, MCU (17.80MM ID)BUMPER, MCU (17.80MM ID)
-
107041761 STRUT (FRONT) (18 X 30MM, 153.8MM)STRUT (FRONT) (18 X 30MM, 153.8MM)
-
117080367 CLAMP, CABLECLAMP, CABLE
-
127542324 NUT, NYLOKNUT, NYLOK
-
137558402 WASHER FLATWASHER FLAT
-
147080306 FITTING, LUBE.W/ BALL CK.FITTING, LUBE.W/ BALL CK.
-
157515339 BOLTBOLT
-
165131039 SUPPORT, STRUT/ SPINDLE (LEFT)SUPPORT, STRUT/ SPINDLE (LEFT)
-
165131040 SUPPORT, STRUT/ SPINDLE (RIGHT)SUPPORT, STRUT/ SPINDLE (RIGHT)
-
175211115 WASHER, SPRING RETAINERWASHER, SPRING RETAINER
