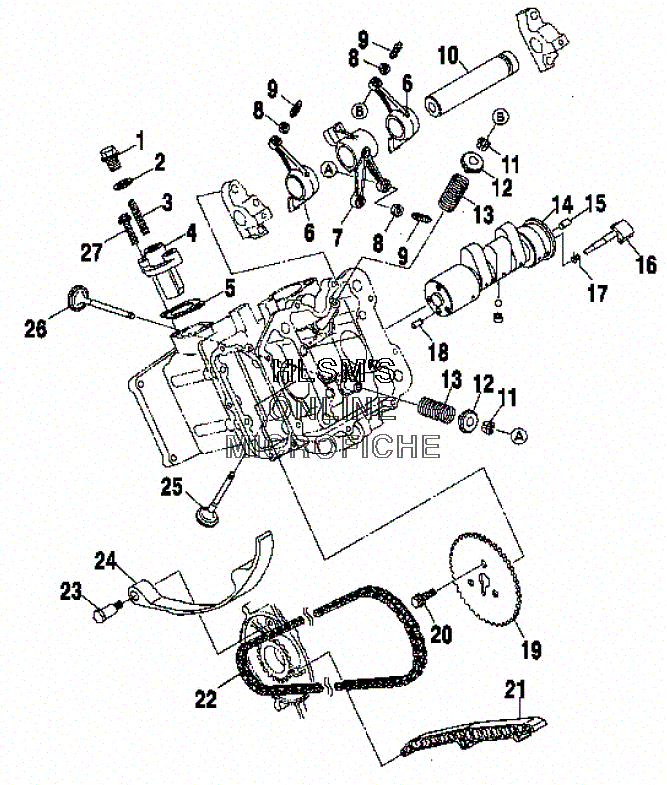

CAMSHAFT W/ VALVE ASSY. для Polaris XPEDITION 425 (A02CK42AA) (DESERT DUNE) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3084845 PLUG
    PLUG
  • 2
    3084920 GASKET, PLUG
    GASKET, PLUG
  • 3
    3086839 SPRING,TENSIONER
    SPRING,TENSIONER
  • 4
    3086813 TENSIONER,ASM [INCL. 1-3]
    TENSIONER,ASM [INCL. 1-3]
  • 5
    3084922 GASKET,TENSIONER
    GASKET,TENSIONER
  • 6
    3084910 ROCKERARM ASM,INTAKE [INCL. 8,9]
    ROCKERARM ASM,INTAKE [INCL. 8,9]
  • 7
    3084913 ROCKERARM ASM,EXHAUST * [INCL. 8,9]
    ROCKERARM ASM,EXHAUST * [INCL. 8,9]
  • 8
    3084912 NUT(10)
    NUT(10)
  • 9
    3084911 SCREW, ADJ.
    SCREW, ADJ.
  • 10
    3084909 SHAFT,ROCKER
    SHAFT,ROCKER
  • 11
    3084908 COLLET,VALVE
    COLLET,VALVE
  • 12
    3086893 RETAINER,VALVE SPRING
    RETAINER,VALVE SPRING
  • 13
    3084906 SPRING,VALVE
    SPRING,VALVE
  • 14
    3086212 CAMSHAFT [INCL. 15-18]
    CAMSHAFT [INCL. 15-18]
  • 15
    3086838 DOWEL-PIN
    DOWEL-PIN
  • 16
    3085348 LEVER, RELEASE
    LEVER, RELEASE
  • 17
    3085076 SPRING,RETURN
    SPRING,RETURN
  • 18
    3084899 PIN,DOWEL
    PIN,DOWEL
  • 19
    3084914 SPROCKET 2
    SPROCKET 2
  • 20
    3081657 BOLT AND WASHER ASM.
    BOLT AND WASHER ASM.
  • 21
    3084916 GUIDE,CHAIN
    GUIDE,CHAIN
  • 22
    3084915 CHAIN, TIMING
    CHAIN, TIMING
  • 23
    3084924 BOLT,PIVOT,LEVER
    BOLT,PIVOT,LEVER
  • 24
    3084917 LEVER
    LEVER
  • 25
    3085349 VALVE,INTAKE
    VALVE,INTAKE
  • 26
    3085412 VALVE, EXHAUST
    VALVE, EXHAUST
  • 27
    3084874 BOLT, FLANGE
    BOLT, FLANGE
