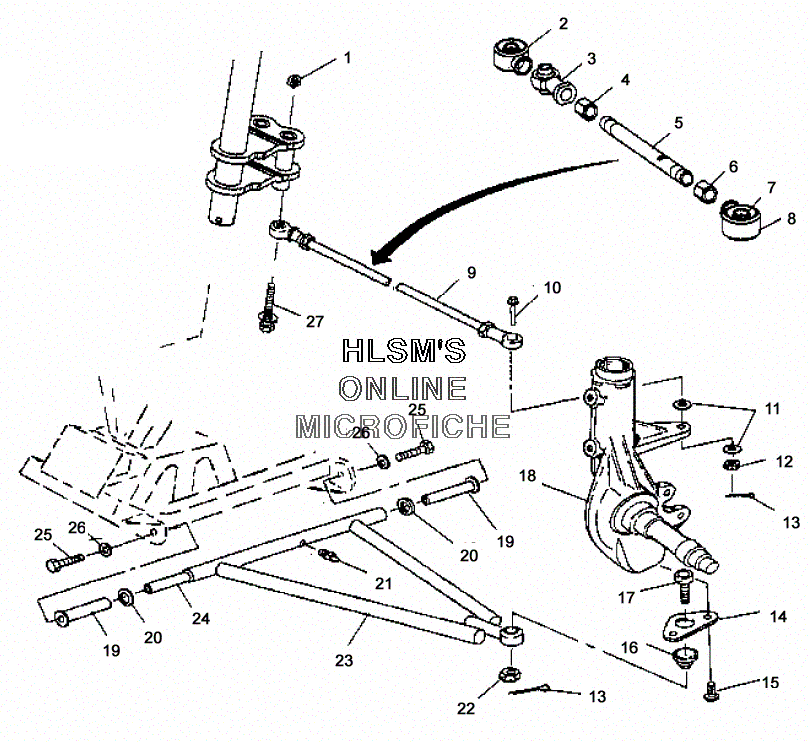

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris TRAIL BLAZER FREEDOM (A02BA25CB) (RED/BLUE) - 2002 года выпуска`

№

Артикул

Название
1

7542439 NUT,NYLOK

NUT,NYLOK

110 ₽
2

5411291 SEAL,BOOT,ROD END,1/2 IN

SEAL,BOOT,ROD END,1/2 IN

2 080 ₽
3

7061034 ROD END,RH

ROD END,RH

10 400 ₽
4

7542711 NUT-JAM

NUT-JAM

110 ₽
5

5020927 ROD,TIE

ROD,TIE

7 280 ₽
6

7547028 NUT,LH,JAM

NUT,LH,JAM

540 ₽
7

5411920 BOOT,SEAL,ROD END,10MM

BOOT,SEAL,ROD END,10MM

2 080 ₽
8

7061054 ROD,END,10MM,1/2-20LH,42 DEG

ROD,END,10MM,1/2-20LH,42 DEG

10 400 ₽
9

1820806 TIE,ROD,1/2-20X14.0,ASM. (INCL. 3-8)

TIE,ROD,1/2-20X14.0,ASM. (INCL. 3-8)

21 840 ₽
10

7517909 BOLT-M10X1.25X65,HX WASH HD

BOLT-M10X1.25X65,HX WASH HD

1 460 ₽
11

7556099 WASHER

WASHER

340 ₽
12

7547177 NUT-M10X1.25-HX-LOCK-Y

NUT-M10X1.25-HX-LOCK-Y

670 ₽
13

7661203 PIN COTTER

PIN COTTER

110 ₽
14

5240717 BRACKET,BALLJOINT

BRACKET,BALLJOINT

7 700 ₽
15

7512284 BOLT, SOCKET

BOLT, SOCKET

250 ₽
16

5410548 BOOT, RUBBER

BOOT, RUBBER

630 ₽
17

7080927 BALL-JOINT,52 DEG,ATV

BALL-JOINT,52 DEG,ATV

13 520 ₽
19

5433066 BUSHING, A-ARM LONG

BUSHING, A-ARM LONG

1 870 ₽
20

5020677 BUSHING,A-ARM SPACER

BUSHING,A-ARM SPACER

2 080 ₽
21

7080433 ZERK,FITTING,THREADED

ZERK,FITTING,THREADED

250 ₽
22

7542438 NUT, CASTLE

NUT, CASTLE

340 ₽
23

2201601 KIT-A-FRAME,LH(1541864)

KIT-A-FRAME,LH(1541864)

24 960 ₽
23

2201602 KIT-A-FRAME,RH(1541865)

KIT-A-FRAME,RH(1541865)

24 960 ₽
24

5020681 SHAFT-A-ARM(4X4)

SHAFT-A-ARM(4X4)

3 750 ₽
25

7512492 SCREW

SCREW

250 ₽
26

7552603 WASHER

WASHER

110 ₽
27

7517527 BOLT (IF BUILT BEFORE 9/24/01)

BOLT (IF BUILT BEFORE 9/24/01)

2 710 ₽
27

7517930 BOLT-3/8-24X4,HX SEM/Y .86D (IF BUILT BETWEEN 9/24/01 AND 12/03/01)

BOLT-3/8-24X4,HX SEM/Y .86D (IF BUILT BETWEEN 9/24/01 AND 12/03/01)

3 540 ₽
27

7518033 BOLT-3/8-24X4 SPECIAL FLANGE-Y (IF BUILT AFTER 12/03/01)

BOLT-3/8-24X4 SPECIAL FLANGE-Y (IF BUILT AFTER 12/03/01)

3 540 ₽
