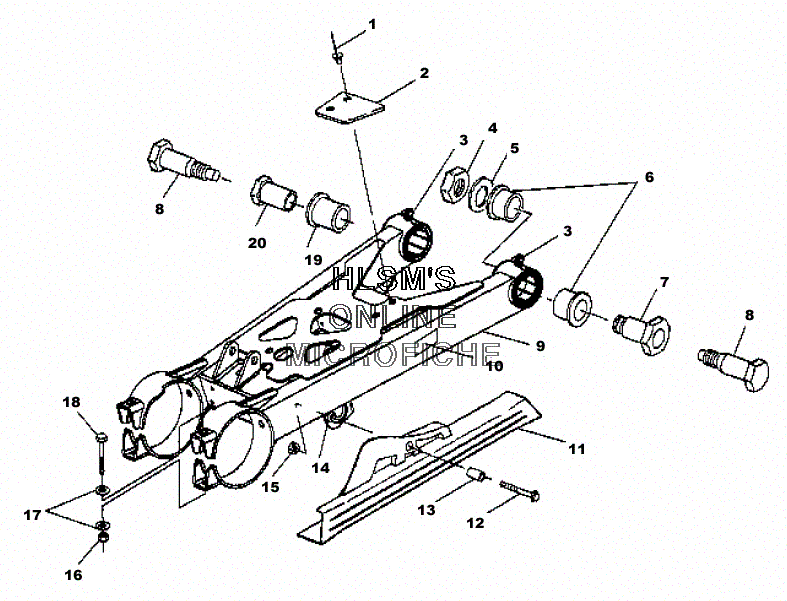

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris TRAIL BLAZER (A02BA25CD) (SONIC BLUE) - 2002 года выпуска
-
№АртикулНазвание
-
17661046 RIVET-POP,3/16(.376-.500)RIVET-POP,3/16(.376-.500)
-
25432727 GUIDE,CHAIN PADGUIDE,CHAIN PAD
-
37080510 FITTING, ZERKFITTING, ZERK
-
47547082 NUT,HEX,JAMNUT,HEX,JAM
-
57556035 WASHER,FLATWASHER,FLAT
-
65433412 BUSHING-SWINGARM,RH,HYBRID,BLKBUSHING-SWINGARM,RH,HYBRID,BLK
-
75131696 BUSHING-SWING ARM PIVOT,RHBUSHING-SWING ARM PIVOT,RH
-
85131697 BOLT,SWINGARM PIVOTBOLT,SWINGARM PIVOT
-
91580111 ARM ASM,SWING (INCL. 3,6,19)ARM ASM,SWING (INCL. 3,6,19)
-
107078572 DECAL-''CHAIN FREEPLAY'',HYBRIDDECAL-''CHAIN FREEPLAY'',HYBRID
-
115432854 GUARD,CHAIN,R.AXLEGUARD,CHAIN,R.AXLE
-
127515304 SCREW-FLANGEDSCREW-FLANGED
-
135332828 BUSHINGBUSHING
-
147558402 WASHER STEELWASHER STEEL
-
157542321 NUT LOCKNUT LOCK
-
167547066 NUT-7/16-20,NYLOK,YNUT-7/16-20,NYLOK,Y
-
177555883 WASHERWASHER
-
187512576 BOLTBOLT
-
195433411 BUSHING-SWINGARM,LH,HYBRID,BLKBUSHING-SWINGARM,LH,HYBRID,BLK
-
205131695 BUSHING, SWING ARM PIVOT, LHBUSHING, SWING ARM PIVOT, LH
