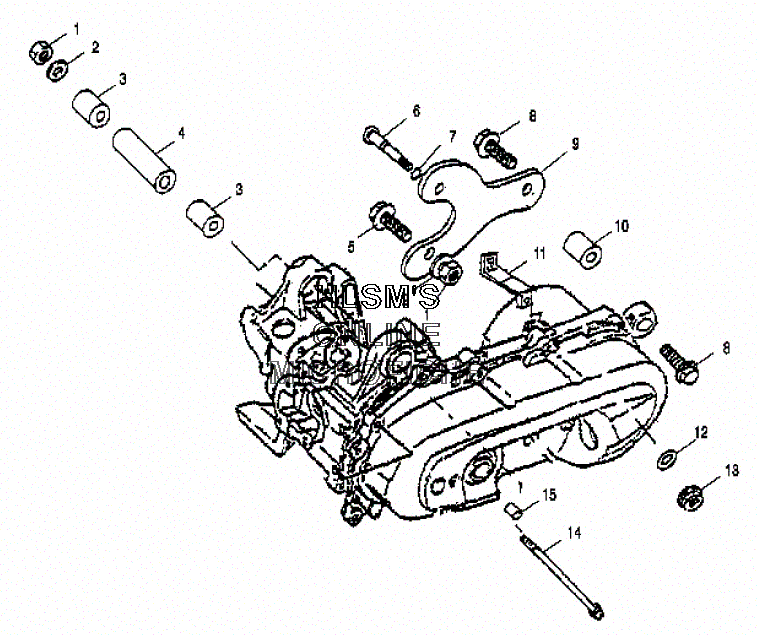

MOUNTING - ENGINE для Polaris SPORTSMAN 90 (A02FA09CA) (GREEN) - 2002 года выпуска`
-
№АртикулНазвание
-
10450271 NUT-HEXNUT-HEX
-
20450286 WASHERWASHER
-
30450284 BUSHING-RUBBERBUSHING-RUBBER
-
40450283 TUBE-FIXED,FRONT ENG.TUBE-FIXED,FRONT ENG.
-
50450270 BOLT-HEXBOLT-HEX
-
60450266 SHAFT,FIXED,ENG BRKTSHAFT,FIXED,ENG BRKT
-
70450709 O-RINGO-RING
-
80450684 BOLT-HEX WASHERBOLT-HEX WASHER
-
90450269 BRACKET,ENGINEBRACKET,ENGINE
-
100450132 BUSHING-RUBBERBUSHING-RUBBER
-
110450287 PLATE,FIXED,OIL TANKPLATE,FIXED,OIL TANK
-
120450192 WASHERWASHER
-
130450268 NUT-FLANGENUT-FLANGE
-
140450285 BOLT-HEXBOLT-HEX
-
150450278 COLLARCOLLAR
