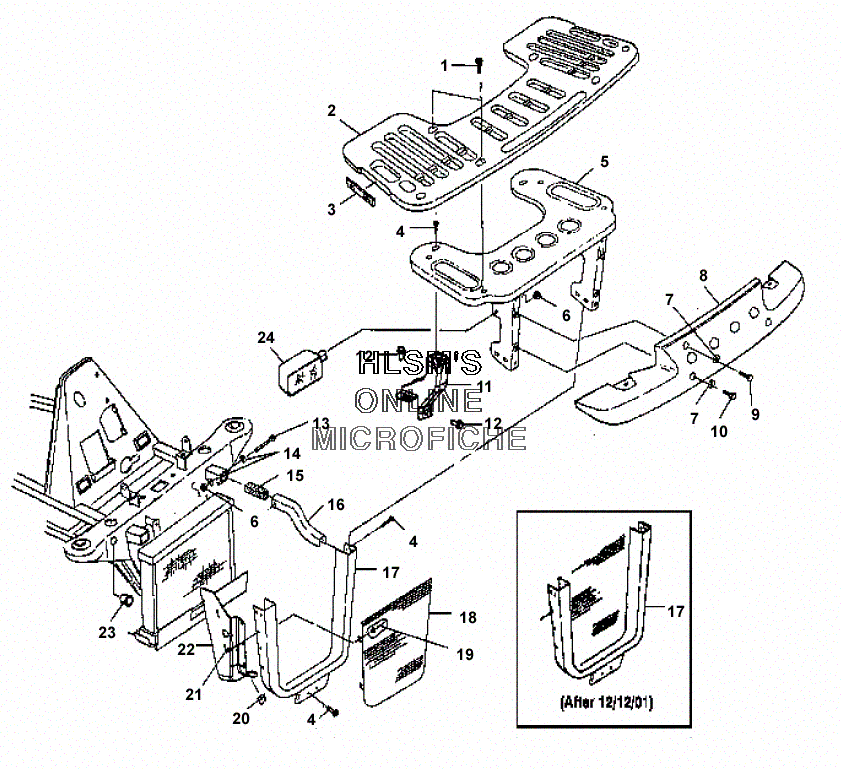

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 6X6 (A02CL50AA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7517685 SCREW
    SCREW
  • 2
    2632340-070 ASM-RACK,FRONT,6X6,BLK [INCL. REF. 3 AND WARNING DECAL]
    ASM-RACK,FRONT,6X6,BLK [INCL. REF. 3 AND WARNING DECAL]
  • 3
    7079926 DECAL-REFLECT.6.75,AMBER
    DECAL-REFLECT.6.75,AMBER
  • 4
    7515399 SCREW
    SCREW
  • 5
    2200775 WELD-FRONT RACK SUPPORT,BLK
    WELD-FRONT RACK SUPPORT,BLK
  • 6
    7542324 NUT
    NUT
  • 7
    7555954 WASHER
    WASHER
  • 8
    5432155-070 BUMPER,BLK.
    BUMPER,BLK.
  • 9
    7515391 BOLT
    BOLT
  • 10
    7515390 BOLT
    BOLT
  • 11
    1013744-067 WELD-SUPPORT RACK,FRONT,LH,BLK
    WELD-SUPPORT RACK,FRONT,LH,BLK
  • 11
    1013746-067 WELD-SUPPORT,RACK,FRONT,RH,BLK
    WELD-SUPPORT,RACK,FRONT,RH,BLK
  • 12
    7512232 BOLT
    BOLT
  • 13
    7512329 BOLT
    BOLT
  • 14
    7558402 WASHER STEEL
    WASHER STEEL
  • 15
    5810467 PLUG, FRAME
    PLUG, FRAME
  • 16
    5244729-067 EXTENSION-FRAME,LH,BLK
    EXTENSION-FRAME,LH,BLK
  • 16
    5244730-067 EXTENSION-FRAME,RH,BLK
    EXTENSION-FRAME,RH,BLK
  • 17
    1013772-067 WELD-BRUSH GUARD,BLK
    WELD-BRUSH GUARD,BLK
  • 18
    5240591-067 GRILL,BRUSHGUARD,BLK. [IF BUILT BEFORE 12/12/01]
    GRILL,BRUSHGUARD,BLK. [IF BUILT BEFORE 12/12/01]
  • 19
    7621330 RIVET, POP [IF BUILT BEFORE 12/12/01]
    RIVET, POP [IF BUILT BEFORE 12/12/01]
  • 20
    7670094 NUT
    NUT
  • 21
    7512097 SCREW
    SCREW
  • 22
    5433923 SHIELD-RADIATOR,SIDE,LH
    SHIELD-RADIATOR,SIDE,LH
  • 22
    5433924 SHEILD-RADIATOR,SIDE,RH
    SHEILD-RADIATOR,SIDE,RH
  • 23
    7547069 NUTSERT,HEX
    NUTSERT,HEX
  • 24
    2431014 H/L ASM,LH,35W
    H/L ASM,LH,35W
  • 24
    2431015 H/L ASM,RH,35W
    H/L ASM,RH,35W
  • 24
    4030059 BULB,H/L,27W.HOBBS
    BULB,H/L,27W.HOBBS
