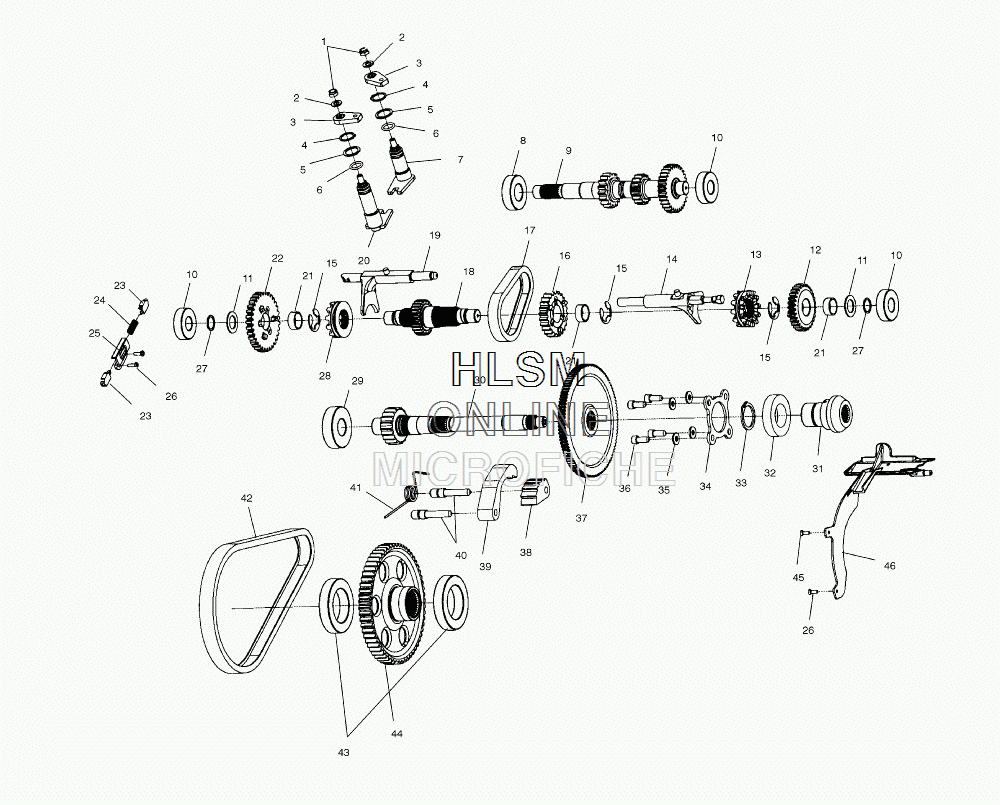

GEARCASE - INTERNAL COMPONENTS для Polaris SPORTSMAN 500 DESERT (A02CH50FA) (C.E.W. CAMO) - 2002 года выпуска

  • №
    Артикул
    Название
  • -
    1341360 ASM., GEARCASE (INCL. 1-37 AND ALL ON GEARCASE (CASES AND SNORKEL)
    ASM., GEARCASE (INCL. 1-37 AND ALL ON GEARCASE (CASES AND SNORKEL)
  • 1
    3233055 NUT
    NUT
  • 2
    3233054 WASHER
    WASHER
  • 3
    3233153 BELLCRANK, HLR
    BELLCRANK, HLR
  • 4
    3233045 RING, RETAINING
    RING, RETAINING
  • 5
    3233040 WASHER
    WASHER
  • 6
    3233548 O-RING
    O-RING
  • 7
    3233774 SHAFT, SHIFT
    SHAFT, SHIFT
  • 8
    3233019 BEARING
    BEARING
  • 9
    3233571 SHAFT, INPUT, 31T, HCR
    SHAFT, INPUT, 31T, HCR
  • 10
    3233018 BEARING
    BEARING
  • 11
    3233176 WASHER, THRUST
    WASHER, THRUST
  • 12
    3233744 GEAR, 30T
    GEAR, 30T
  • 13
    3233743 ENGAGEMENT DOG, HIGH
    ENGAGEMENT DOG, HIGH
  • 14
    3233664 FORK, SHIFT, H/R
    FORK, SHIFT, H/R
  • 15
    3233720 RING, RETAINING
    RING, RETAINING
  • 16
    3233719 SPROCKET, 24T
    SPROCKET, 24T
  • 17
    3233036 CHAIN, SILENT, 34P
    CHAIN, SILENT, 34P
  • 18
    3233742 SHAFT, REVERSE, HCR
    SHAFT, REVERSE, HCR
  • 19
    3233775 FORK, SHIFT, LOW
    FORK, SHIFT, LOW
  • 20
    3233661 SHAFT, SHIFT
    SHAFT, SHIFT
  • 21
    3233718 BEARING, NEEDLE
    BEARING, NEEDLE
  • 22
    3233745 GEAR, 36T
    GEAR, 36T
  • 23
    3233308 PIN, INTERLOCK
    PIN, INTERLOCK
  • 24
    3233189 SPRING, INTERLOCK
    SPRING, INTERLOCK
  • 25
    3233309 BRACKET, INTERLOCK
    BRACKET, INTERLOCK
  • 26
    3233747 SCREW
    SCREW
  • 27
    3233177 RING, RETAINING
    RING, RETAINING
  • 28
    3233732 ENGAGEMENT DOG, LOW
    ENGAGEMENT DOG, LOW
  • 29
    3233020 BEARING, BALL
    BEARING, BALL
  • 30
    3233715 SHAFT, CENTER DRIVE
    SHAFT, CENTER DRIVE
  • 31
    3233365 PINION, 16T, SPIRAL BEVEL
    PINION, 16T, SPIRAL BEVEL
  • 32
    3233265 BEARING
    BEARING
  • 33
    3233364 RING, RETAINING
    RING, RETAINING
  • 34
    3233263 COVER, BEARING, CENTER DRIVE
    COVER, BEARING, CENTER DRIVE
  • 35
    7552901 WASHER
    WASHER
  • 36
    3233262 SCREW
    SCREW
  • 37
    3233360 GEAR, OUTPUT, 100T, HCR
    GEAR, OUTPUT, 100T, HCR
  • 38
    3233434 CHAIN TENSIONER, CAM
    CHAIN TENSIONER, CAM
  • 39
    3233433 CHAIN TENSIONER, SHOE
    CHAIN TENSIONER, SHOE
  • 40
    3233432 PIN, DOWEL
    PIN, DOWEL
  • 41
    3233431 SPRING, TORSION
    SPRING, TORSION
  • 42
    3233430 CHAIN, SILENT
    CHAIN, SILENT
  • 43
    3233268 BEARING
    BEARING
  • 44
    3233670 SPROCKET, 60T
    SPROCKET, 60T
  • 45
    3233282 SCREW
    SCREW
  • 46
    3233669 DEFLECTOR, OIL
    DEFLECTOR, OIL
