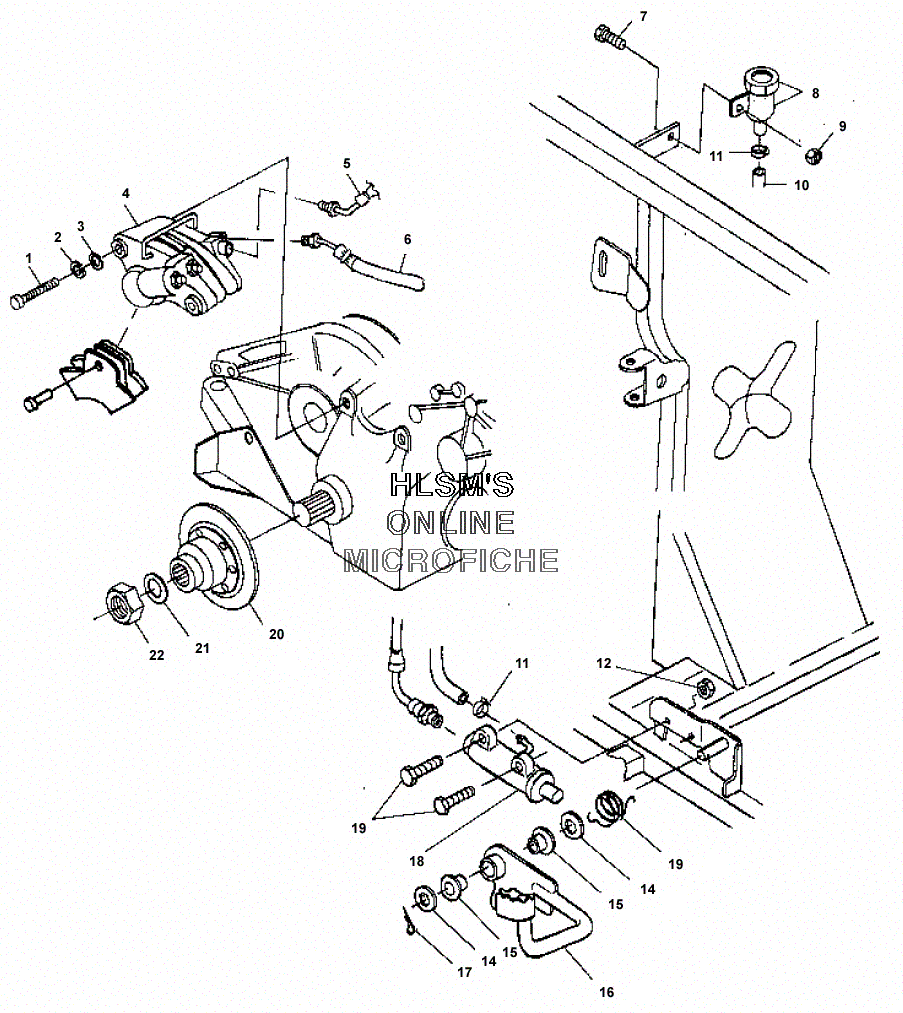

BRAKE - REAR W/ FOOT PEDAL для Polaris SPORTSMAN 400 (A02CH42AA) (OLIVE GREEN) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7515497 BOLT
    BOLT
  • 2
    7552603 WASHER
    WASHER
  • 3
    7555806 WASHER
    WASHER
  • 4
    1910553 ASM-CALIPER,BRAKE,RR,DH1P,AFT
    ASM-CALIPER,BRAKE,RR,DH1P,AFT
  • 4
    2201399 BRAKE PADS,AFT,WW REAR (INCL. SPACER AND PIN)
    BRAKE PADS,AFT,WW REAR (INCL. SPACER AND PIN)
  • 4
    2201180 KIT,SEAL,CALIPER,WW
    KIT,SEAL,CALIPER,WW
  • 4
    2201428 BLEEDER REPLACEMENT,KIT
    BLEEDER REPLACEMENT,KIT
  • 4
    2201181 PISTON,STEPPED BORE
    PISTON,STEPPED BORE
  • 5
    1910479 LINE-BRAKE,FT TO TRAN,SS
    LINE-BRAKE,FT TO TRAN,SS
  • 7
    7512240 BOLT
    BOLT
  • 8
    1930854 RESERVOIR ASM,R.BRAKE
    RESERVOIR ASM,R.BRAKE
  • 9
    7542153 NUT
    NUT
  • 10
    1910315 HOSE,RESERVOIR,1/4ID,22IN.
    HOSE,RESERVOIR,1/4ID,22IN.
  • 11
    7080003 CLAMP,HOSE
    CLAMP,HOSE
  • 12
    7542122 NUT-LOCK
    NUT-LOCK
  • 13
    7041750 SPRING,TORSION,BRAKE
    SPRING,TORSION,BRAKE
  • 14
    7555919 WASHER
    WASHER
  • 15
    5431107 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 16
    1910280-067 ROD,BRAKE,BLK.
    ROD,BRAKE,BLK.
  • 17
    7661401 COTTER PIN
    COTTER PIN
  • 18
    1910301 CYLINDER,MASTER,BRAKE,REAR
    CYLINDER,MASTER,BRAKE,REAR
  • 19
    7512247 BOLT
    BOLT
  • 20
    1910440 DISC,ASM,BRAKE,DOM,1050
    DISC,ASM,BRAKE,DOM,1050
  • 21
    7571620 WASHER, SLOTTED
    WASHER, SLOTTED
  • 22
    7547046 NUT,NYLOC
    NUT,NYLOC
