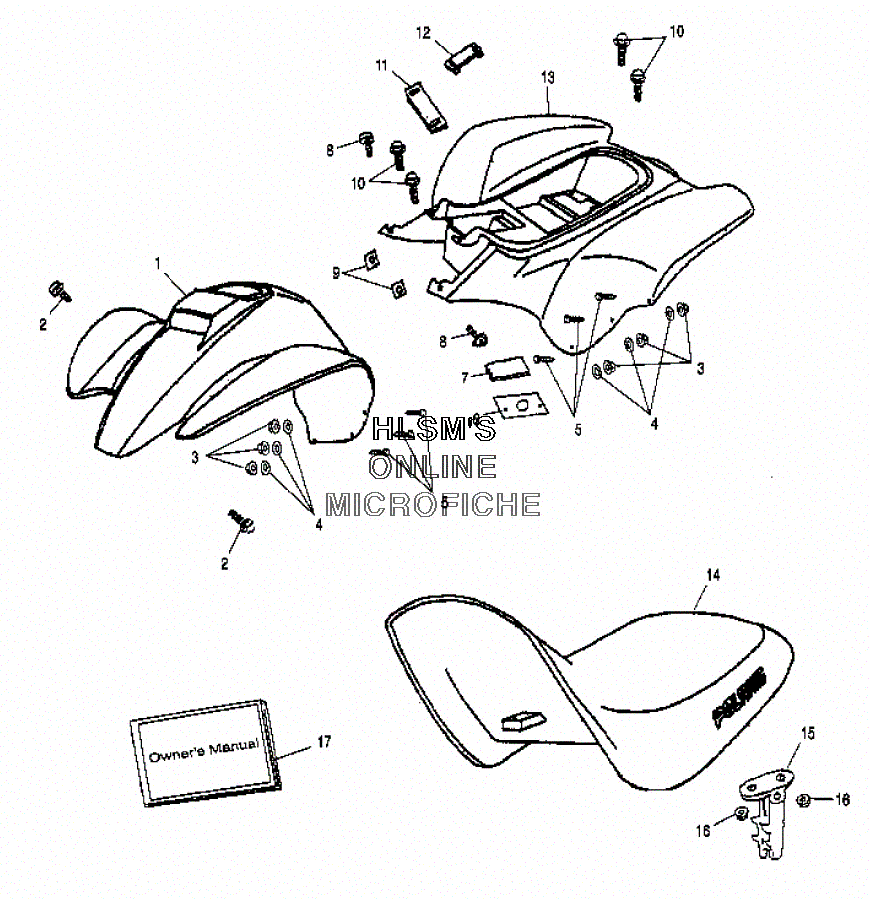

FENDER - FRONT / REAR W/ SEAT для Polaris SCRAMBLER 90X (A02EA09CC) (YELLOW) - 2002 года выпуска
-
№АртикулНазвание
-
10451005 CAB, FRONT (YELLOW)CAB, FRONT (YELLOW)
-
20450824 BOLT-W/WSHR,HEXBOLT-W/WSHR,HEX
-
30450741 NUT,LOCKNUT,LOCK
-
40450710 WASHER-PLAINWASHER-PLAIN
-
50450667 BOLT,PHILLIPSBOLT,PHILLIPS
-
60450345 PAD,FOIL,PROTECTORPAD,FOIL,PROTECTOR
-
70450346 FOAM,BATTERY PADFOAM,BATTERY PAD
-
80450297 BOLT-PANBOLT-PAN
-
90450342 NUT-U-PLATENUT-U-PLATE
-
100450340 BOLT-HEXBOLT-HEX
-
110450897 STRAP BATTERYSTRAP BATTERY
-
120450898 STRAP TOOL BOXSTRAP TOOL BOX
-
130451006 CAB, REAR (YELLOW)CAB, REAR (YELLOW)
-
140451007 ASSY., SEAT, RED/BLACKASSY., SEAT, RED/BLACK
-
150450356 HOOK,SEATHOOK,SEAT
-
160450880 NUT-FLG W/SERRNUT-FLG W/SERR
-
179917080 MAN-OWN,02 YOUTH MODELSMAN-OWN,02 YOUTH MODELS
