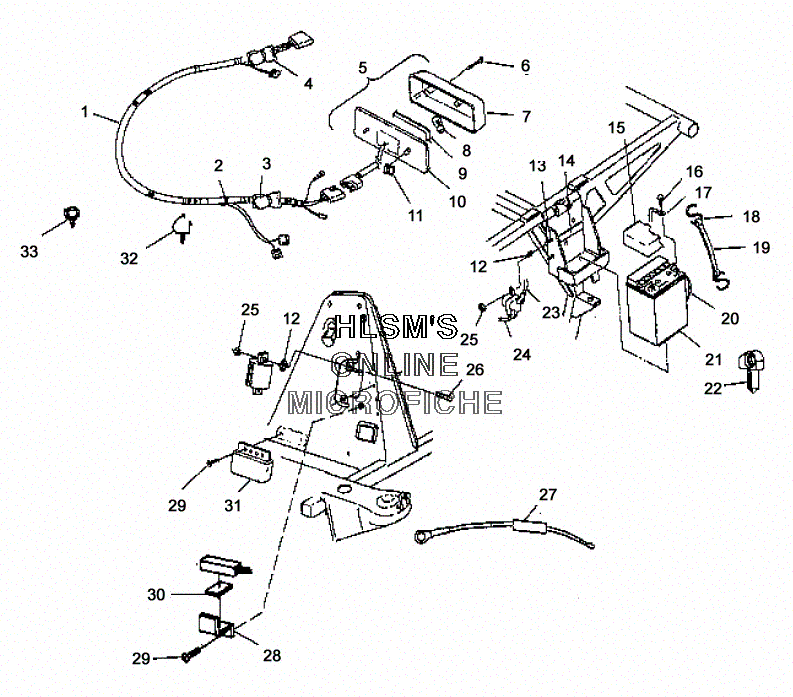

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris SCRAMBLER 500 4X4 FREEDOM (A02BG50AC) - 2002 года выпуска
-
№АртикулНазвание
-
12460943 HARNESS-MAIN,SCR 500 4X4HARNESS-MAIN,SCR 500 4X4
-
27080138 STRAP PANDUITSTRAP PANDUIT
-
32434012 CKT.BREAKER,20 AMP.CKT.BREAKER,20 AMP.
-
42201795 KIT-CIRCUT BREAKER,FANKIT-CIRCUT BREAKER,FAN
-
52410319 ASSY., TAILLIGHT, 12V, SERIES FIL (INCL. 6-10)ASSY., TAILLIGHT, 12V, SERIES FIL (INCL. 6-10)
-
67512088 SCREW,TAIL LIGHTSCREW,TAIL LIGHT
-
74032085 LENS,STOP AND T/L.LENS,STOP AND T/L.
-
84030043 BULB,TAILLIGHTBULB,TAILLIGHT
-
94032086 GASKET,T/L AND STOP/LGASKET,T/L AND STOP/L
-
104032087 BACKING (STOP AND TAIL)BACKING (STOP AND TAIL)
-
117670093 CLIP, RETAINERCLIP, RETAINER
-
127571602 WASHERWASHER
-
137512027 SCREWSCREW
-
145810290 PAD, BATTERYPAD, BATTERY
-
155431769 COVER,BATTERYCOVER,BATTERY
-
162200361 BOLT,BATT,KIT (SHORT)BOLT,BATT,KIT (SHORT)
-
174010095 CABLE,BATT/ENG. (BLACK)CABLE,BATT/ENG. (BLACK)
-
187010032 HOOK, BATT.HOOK, BATT.
-
195410424 STRAP,BATTERY HOLDDOWNSTRAP,BATTERY HOLDDOWN
-
205432077 TUBE,BATTERY VENTTUBE,BATTERY VENT
-
214140006 BATTERYBATTERY
-
227670102 CLIP,SILENCER,CLIP,SILENCER,
-
234010094 CABLE,BATT/SOLENOID,REDCABLE,BATT/SOLENOID,RED
-
244010093 CABLE,SOL/STARTERCABLE,SOL/STARTER
-
257541925 NUTNUT
-
267512007 SCREWSCREW
-
272202147 KIT-FUSIBLE LINKKIT-FUSIBLE LINK
-
285246378 BRKT-CDI,DIGITALBRKT-CDI,DIGITAL
-
297512024 SCREW,SCREW,
-
305810317 PAD,FUELTANK BRACKET.PAD,FUELTANK BRACKET.
-
314010195 LIMITER-RPM,HUB GROUND,LR83-3LIMITER-RPM,HUB GROUND,LR83-3
-
327670109 CLIP, ROUTINGCLIP, ROUTING
-
334020149 CLIP, ROSEBUDCLIP, ROSEBUD
