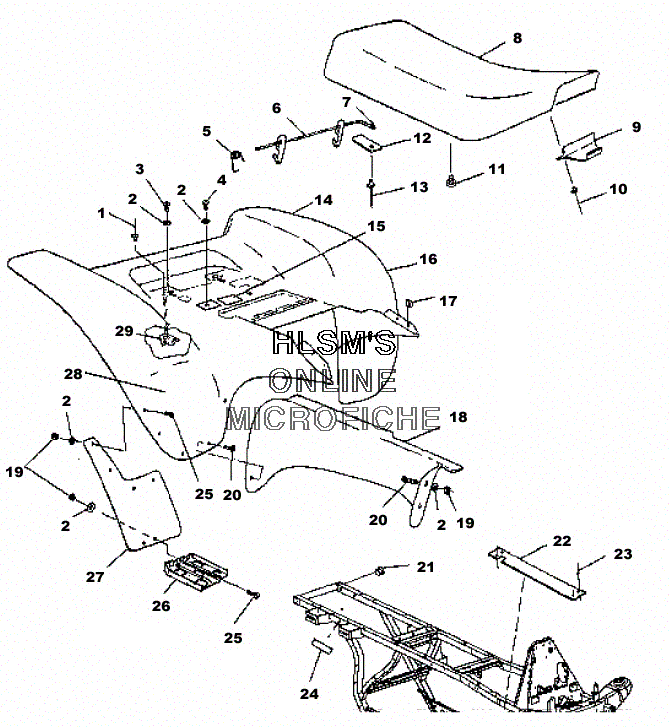

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 500 2X4 (A02BA50AB) (BLACK METALIC) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7621472 RIVET
    RIVET
  • 2
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 3
    7512232 BOLT
    BOLT
  • 4
    7512242 SCREW
    SCREW
  • 5
    7041607 SPRING,LATCH,LIGHT
    SPRING,LATCH,LIGHT
  • 6
    1040412-067 LATCH, SEATBACK
    LATCH, SEATBACK
  • 7
    5411392 CAP,SEATLATCH,GEN 3
    CAP,SEATLATCH,GEN 3
  • 8
    2682888 SEAT, ASMSCR 500 2X4 ''X''
    SEAT, ASMSCR 500 2X4 ''X''
  • 8
    2682889 SEAT-COVER,SCR 500 2X4 ''X''
    SEAT-COVER,SCR 500 2X4 ''X''
  • 9
    5431986 TONGUE,SEAT
    TONGUE,SEAT
  • 10
    7621479 RIVET
    RIVET
  • 11
    5412067 BUMPER-RUBBER
    BUMPER-RUBBER
  • 12
    5211033 BRACKET,LEVER RETAINER
    BRACKET,LEVER RETAINER
  • 13
    7621403 BLIND RIVET
    BLIND RIVET
  • 14
    5810991 FOIL, REAR CAB, SMALL
    FOIL, REAR CAB, SMALL
  • 15
    7079902 DECAL-4 STRK,CARB/FILTER INFO
    DECAL-4 STRK,CARB/FILTER INFO
  • 16
    5434014-177 CAB-REAR,GEN 3,CDS,BLK MET
    CAB-REAR,GEN 3,CDS,BLK MET
  • 17
    7670057 NUT, SPEED
    NUT, SPEED
  • 18
    2632274 SHIELD,MUFFLER/FOIL ASM,GEN3
    SHIELD,MUFFLER/FOIL ASM,GEN3
  • 18
    5811113 FOIL,FOAM
    FOIL,FOAM
  • 19
    7542122 NUT-LOCK
    NUT-LOCK
  • 20
    7517264 SCREW
    SCREW
  • 21
    5432831 PLUG,ENDCAP,RIBBED
    PLUG,ENDCAP,RIBBED
  • 22
    5241403-067 GUARD-CLUTCH, BLK
    GUARD-CLUTCH, BLK
  • 23
    7661637 RIVET,INTERLOCK,Z
    RIVET,INTERLOCK,Z
  • 24
    7079925 DECAL-REFLECT.2.88,RED
    DECAL-REFLECT.2.88,RED
  • 25
    7512282 BOLT, BLACK
    BOLT, BLACK
  • 27
    5812134 MUDFLAP-REAR,HYBRID,LH
    MUDFLAP-REAR,HYBRID,LH
  • 27
    5850148 MUDFLAP,RH,R.HYBRID
    MUDFLAP,RH,R.HYBRID
  • 28
    5810957 FOIL, REAR CAB
    FOIL, REAR CAB
  • 29
    5220880 BRKT,R.HOLDDOWN
    BRKT,R.HOLDDOWN
