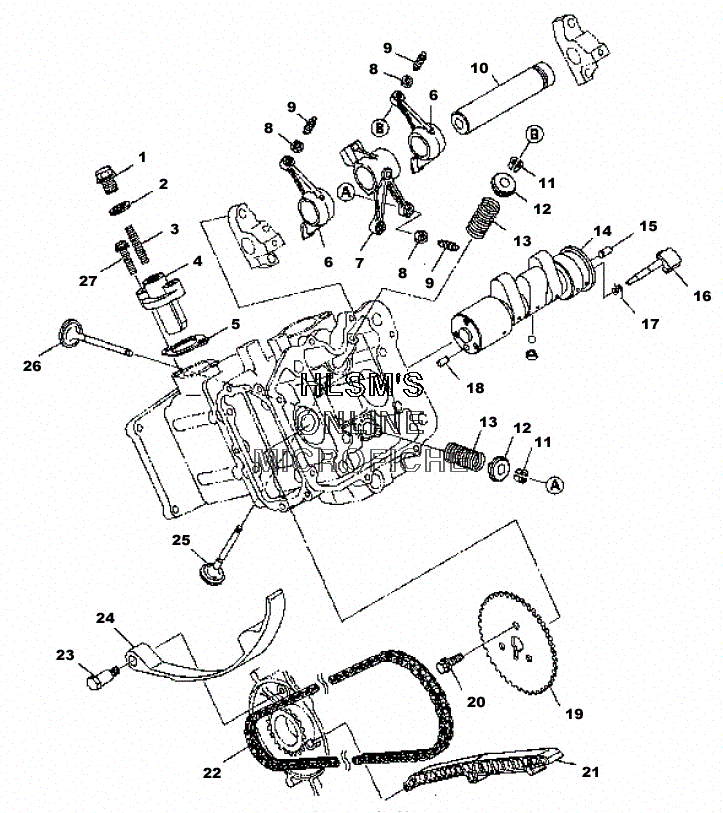

CAMSHAFT W/ VALVE ASSY. для Polaris MAGNUM VL HDS (A02CD50FB) - 2002 года выпуска`
-
№АртикулНазвание
-
13084845 PLUGPLUG
-
23084920 GASKET, PLUGGASKET, PLUG
-
33086839 SPRING,TENSIONERSPRING,TENSIONER
-
43086813 TENSIONER,ASM (INCL. 1-3)TENSIONER,ASM (INCL. 1-3)
-
53084922 GASKET,TENSIONERGASKET,TENSIONER
-
63084910 ROCKERARM ASM,INTAKE (INCL. 8,9)ROCKERARM ASM,INTAKE (INCL. 8,9)
-
73084913 ROCKERARM ASM,EXHAUST (INCL. 8,9)ROCKERARM ASM,EXHAUST (INCL. 8,9)
-
83084912 NUTNUT
-
93084911 SCREW, ADJ.SCREW, ADJ.
-
103084909 SHAFT,ROCKERSHAFT,ROCKER
-
113084908 COLLET,VALVECOLLET,VALVE
-
123086893 RETAINER,VALVE SPRINGRETAINER,VALVE SPRING
-
133084906 SPRING,VALVESPRING,VALVE
-
143086212 CAMSHAFT (INCL. 15-18)CAMSHAFT (INCL. 15-18)
-
153086838 DOWEL-PINDOWEL-PIN
-
163085348 LEVER, RELEASELEVER, RELEASE
-
173085076 SPRING,RETURNSPRING,RETURN
-
183084899 PIN,DOWELPIN,DOWEL
-
193084914 SPROCKET 2SPROCKET 2
-
203081657 BOLT AND WASHER ASM.BOLT AND WASHER ASM.
-
213084916 GUIDE,CHAINGUIDE,CHAIN
-
223084915 CHAIN, TIMINGCHAIN, TIMING
-
233084924 BOLT,PIVOT,LEVERBOLT,PIVOT,LEVER
-
243084917 LEVERLEVER
-
253085349 VALVE,INTAKEVALVE,INTAKE
-
263085412 VALVE, EXHAUSTVALVE, EXHAUST
-
273084874 BOLT, FLANGEBOLT, FLANGE
