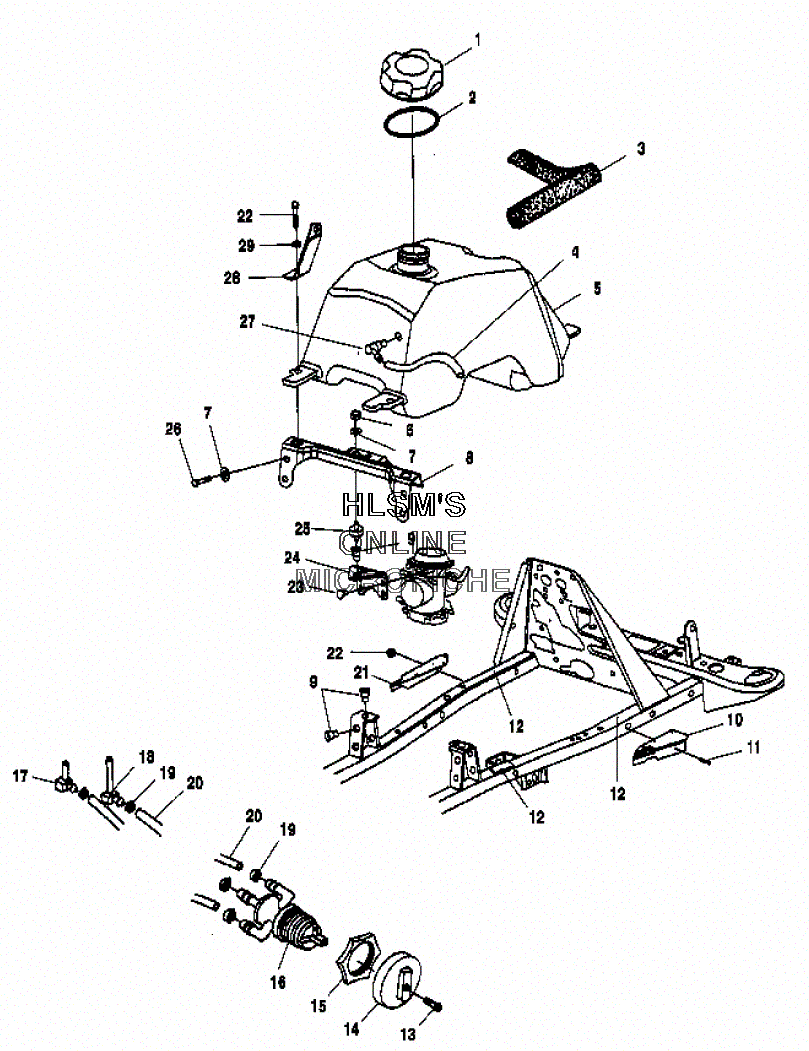

FUEL TANK AND CARBURETOR MOUNTING для Polaris MAGNUM 325 2X4 HDS (A02CB32FC) (GUN METAL) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP,GAS TANK (INCLUDES GASKET
    CAP,GAS TANK (INCLUDES GASKET
  • 2
    5812123 GASKET,GAS CAP
    GASKET,GAS CAP
  • 3
    5811942 FOAM,SEAL,25''
    FOAM,SEAL,25''
  • 4
    8360009-600 FUEL LINE,1/8 ID,600 CM.
    FUEL LINE,1/8 ID,600 CM.
  • 5
    2520183 TANK-FUEL,ASM. (INCL. 19,20,29)
    TANK-FUEL,ASM. (INCL. 19,20,29)
  • 6
    7542105 NUT HEX
    NUT HEX
  • 6
    7552605 WASHER
    WASHER
  • 7
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 8
    5245671-067 BRKT,CARB SUPPORT,BLK
    BRKT,CARB SUPPORT,BLK
  • 9
    7547069 NUTSERT,HEX
    NUTSERT,HEX
  • 10
    5245533-067 SHIELD-SPLASH,RH,BLK
    SHIELD-SPLASH,RH,BLK
  • 11
    7517386 SCREW,
    SCREW,
  • 12
    5810317 PAD,FUELTANK BRKT.
    PAD,FUELTANK BRKT.
  • 13
    7517505 SCREW
    SCREW
  • 14
    5432559 KNOB,FUEL VALVE
    KNOB,FUEL VALVE
  • 15
    5432733 NUT,FUELVALVE,ATV
    NUT,FUELVALVE,ATV
  • 16
    7052161 VALVE,3-WAY
    VALVE,3-WAY
  • 17
    7052146 FITTING,FUEL OUT,MAIN,Y
    FITTING,FUEL OUT,MAIN,Y
  • 18
    7052149 FITTING,FUEL OUT,RES.,Z
    FITTING,FUEL OUT,RES.,Z
  • 19
    7080003 CLAMP,HOSE
    CLAMP,HOSE
  • 20
    8450040-600 FUEL LINE,1/4 ID(600 CM.)
    FUEL LINE,1/4 ID(600 CM.)
  • 21
    5245394-067 SHIELD-SPLASH,LH,BLK
    SHIELD-SPLASH,LH,BLK
  • 22
    7512277 BOLT
    BOLT
  • 23
    3084205 SCREW AND WASHER
    SCREW AND WASHER
  • 24
    5245674-067 MOUNT CARB 325,BLK
    MOUNT CARB 325,BLK
  • 25
    3110050 MOUNT,CARB.
    MOUNT,CARB.
  • 26
    7512276 BOLT
    BOLT
  • 27
    5431053 VENT, TANK
    VENT, TANK
  • 28
    5222154-067 BRKT,LH.R.FUELCOVER,BLK.
    BRKT,LH.R.FUELCOVER,BLK.
  • 28
    5222155-067 BRKT,RH.R.FUELCOVER,BLK.
    BRKT,RH.R.FUELCOVER,BLK.
  • 29
    7558301 WASHER
    WASHER
