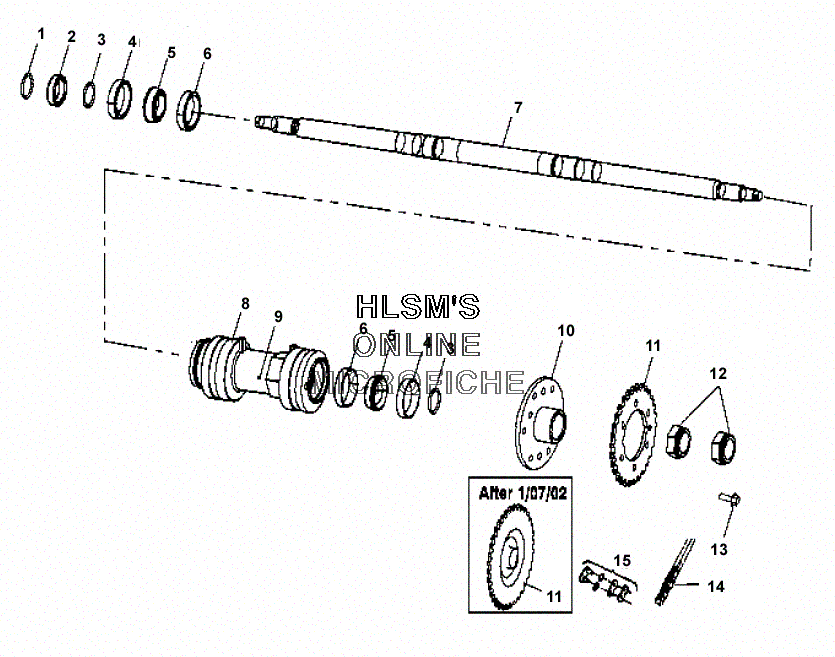

DRIVE - REAR AXLE для Polaris BIG BOSS 6X6 INTERNATION (A02CL50DA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7710405 RING, SNAP
    RING, SNAP
  • 2
    5132464 SPACER,BEARING
    SPACER,BEARING
  • 3
    5410889 O RING
    O RING
  • 4
    3610070 SEAL,LIP
    SEAL,LIP
  • 5
    3554518 BEARING,CONE,TAPERED
    BEARING,CONE,TAPERED
  • 6
    3554517 BEARING,CUP,TAPERED
    BEARING,CUP,TAPERED
  • 7
    5132497 AXLE-REAR,6X6
    AXLE-REAR,6X6
  • 8
    5132875 HOUSING-AXLE,REAR[MACH] 6X6
    HOUSING-AXLE,REAR[MACH] 6X6
  • 9
    7080306 FITTING,LUBE.W/BALL CK.
    FITTING,LUBE.W/BALL CK.
  • 10
    1380171 HUB,SPROCKET [IF BUILT BEFORE 1/07/02]
    HUB,SPROCKET [IF BUILT BEFORE 1/07/02]
  • 11
    3222047 SPROCKET, 30T [IF BUILT BEFORE 1/07/02]
    SPROCKET, 30T [IF BUILT BEFORE 1/07/02]
  • 11
    3221140 SPROCKET-HUB,30 TOOTH [IF BUILT AFTER 1/07/02]
    SPROCKET-HUB,30 TOOTH [IF BUILT AFTER 1/07/02]
  • 12
    5020468 NUT, JAM
    NUT, JAM
  • 13
    7515488 BOLT [IF BUILT BEFORE 1/07/02]
    BOLT [IF BUILT BEFORE 1/07/02]
  • 14
    3224055 DRIVECHAIN ASM, 116P
    DRIVECHAIN ASM, 116P
  • 15
    3225024 CONNECTOR LINK
    CONNECTOR LINK
