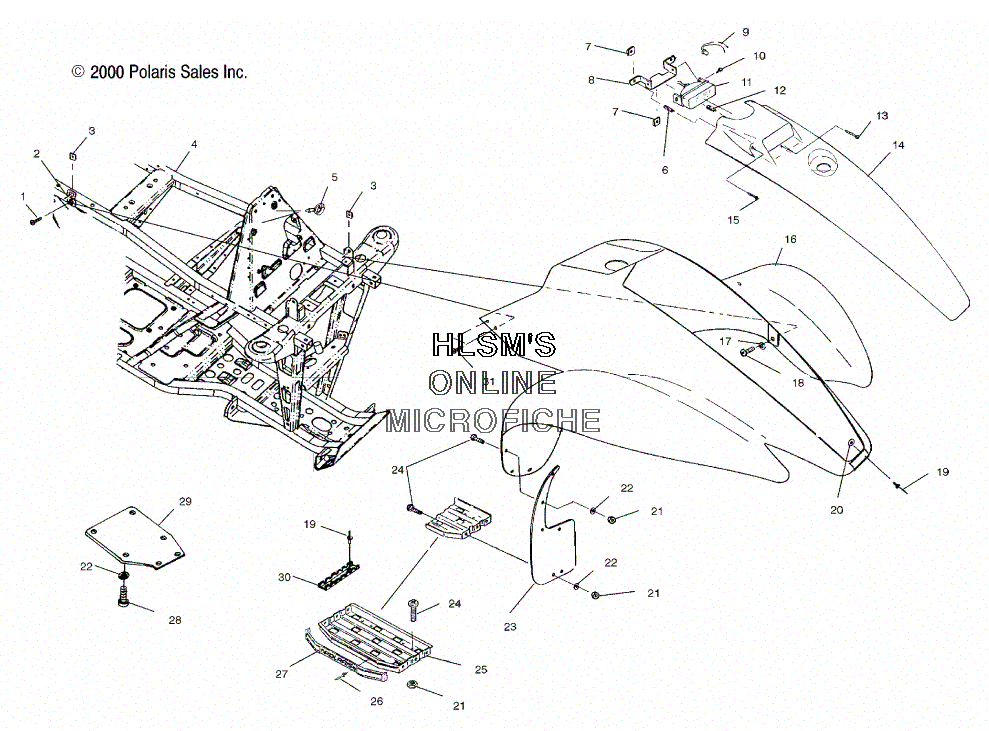

FENDER - FRONT W/ SIDE PANELS для Polaris TRAIL BLAZER (A01BA25CA) (WHITE) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7517386 SCREW
    SCREW
  • 2
    5244482-067 BRACKET, FENDER MOUNT, GEN III (LEFT/BLACK)
    BRACKET, FENDER MOUNT, GEN III (LEFT/BLACK)
  • 2
    5244483-067 BRACKET, FENDER MOUNT, GEN III (RIGHT/BLACK)
    BRACKET, FENDER MOUNT, GEN III (RIGHT/BLACK)
  • 3
    7670060 NUT, SPEED
    NUT, SPEED
  • 4
    1013309-067 FRAME, MAIN (BLACK)
    FRAME, MAIN (BLACK)
  • 5
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 6
    4032093 SPRING, ADJ, (.9 IN)
    SPRING, ADJ, (.9 IN)
  • 7
    7670095 MOUNT ASSY., HEADLIGHT
    MOUNT ASSY., HEADLIGHT
  • 8
    5241436-067 MOUNT ASSY., HEADLIGHT
    MOUNT ASSY., HEADLIGHT
  • 9
    4030056 BULB HEADLIGHT (SPORT)
    BULB HEADLIGHT (SPORT)
  • 10
    7512084 SCREW
    SCREW
  • 11
    4010206 HEADLIGHT-2X5, SINGLE BEAM, 55W (INCL. 9)
    HEADLIGHT-2X5, SINGLE BEAM, 55W (INCL. 9)
  • 12
    4032094 SPRING, ADJUST (2.5 IN)
    SPRING, ADJUST (2.5 IN)
  • 13
    7511886 SCREW
    SCREW
  • 14
    5432179-053 COVER, FRONT (MED.YELLOW)
    COVER, FRONT (MED.YELLOW)
  • 15
    7511887 SCREW,
    SCREW,
  • 16
    2631988-133 FENDER, FRONT GEN III (WHITE) (W/WARNING DECALS) (BUILT BEFORE 11/13/00)
    FENDER, FRONT GEN III (WHITE) (W/WARNING DECALS) (BUILT BEFORE 11/13/00)
  • 16
    2632424-133 FENDER, FRONT GEN III (WHITE) (W/WARNING DECALS) (BUILT AFTER 11/13/00)
    FENDER, FRONT GEN III (WHITE) (W/WARNING DECALS) (BUILT AFTER 11/13/00)
  • 17
    7558301 WASHER (BUILT BEFORE 12/04/00)
    WASHER (BUILT BEFORE 12/04/00)
  • 18
    7522026 SCREW (BUILT BEFORE 12/04/00)
    SCREW (BUILT BEFORE 12/04/00)
  • 18
    7517916 SCREW (BUILT AFTER 12/04/00)
    SCREW (BUILT AFTER 12/04/00)
  • 19
    7621472 RIVET
    RIVET
  • 20
    7558201 WASHER, FLAT
    WASHER, FLAT
  • 21
    7542122 NUT, LOCK
    NUT, LOCK
  • 22
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 23
    5811831 MUDFLAP, FRONT (LEFT)
    MUDFLAP, FRONT (LEFT)
  • 23
    5850150 MUDFLAP, FRONT (RIGHT)
    MUDFLAP, FRONT (RIGHT)
  • 24
    7512282 BOLT, BLACK
    BOLT, BLACK
  • 25
    1013249-067 FOOTPAD, CDS STEEL (BLACK)
    FOOTPAD, CDS STEEL (BLACK)
  • 26
    7661825 RIVET
    RIVET
  • 27
    5431484 TRIM, FOOTREST
    TRIM, FOOTREST
  • 28
    7515179 SCREW
    SCREW
  • 29
    5432763 GUARD, ROCK
    GUARD, ROCK
  • 30
    5242525-067 BRACKET, HEEL CLEAT (BLACK)
    BRACKET, HEEL CLEAT (BLACK)
  • 31
    7517685 SCREW
    SCREW
