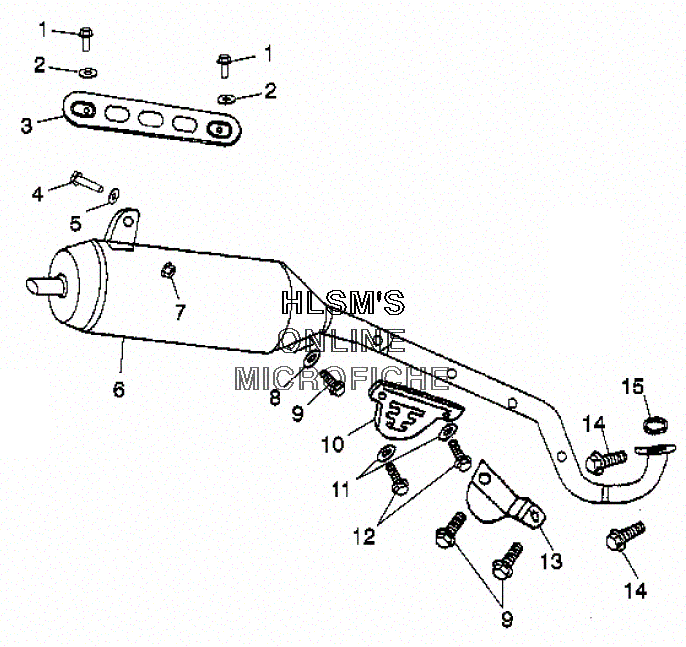

EXHAUST SYSTEM для Polaris SPORTSMAN 90 (A01FA09CA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0450658 BOLT, PHILLIPS, PAN
    BOLT, PHILLIPS, PAN
  • 2
    0450126 GASKET
    GASKET
  • 3
    0450657 PROTECTOR
    PROTECTOR
  • 4
    0450684 BOLT, HEXAGON WASHER
    BOLT, HEXAGON WASHER
  • 5
    0450279 WASHER
    WASHER
  • 6
    0450121 EXHAUST PIPE, ASSY. (INCL. 1, 3,6, 13,15)
    EXHAUST PIPE, ASSY. (INCL. 1, 3,6, 13,15)
  • 6
    0450656 PIPE, EXHAUST
    PIPE, EXHAUST
  • 7
    0450282 NUT, LOCK
    NUT, LOCK
  • 8
    0450659 GASKET
    GASKET
  • 9
    0450325 BOLT, HEXAGON
    BOLT, HEXAGON
  • 10
    0450859 GUARD EXHAUST PIPE
    GUARD EXHAUST PIPE
  • 11
    0450126 GASKET
    GASKET
  • 12
    0450860 BOLT, PAN PHILLIPS
    BOLT, PAN PHILLIPS
  • 13
    0450128 PLATE, FIXED, EXHAUST PIPE
    PLATE, FIXED, EXHAUST PIPE
  • 14
    0450123 BOLT, HEXAGON, WASHER
    BOLT, HEXAGON, WASHER
  • 15
    0450122 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
