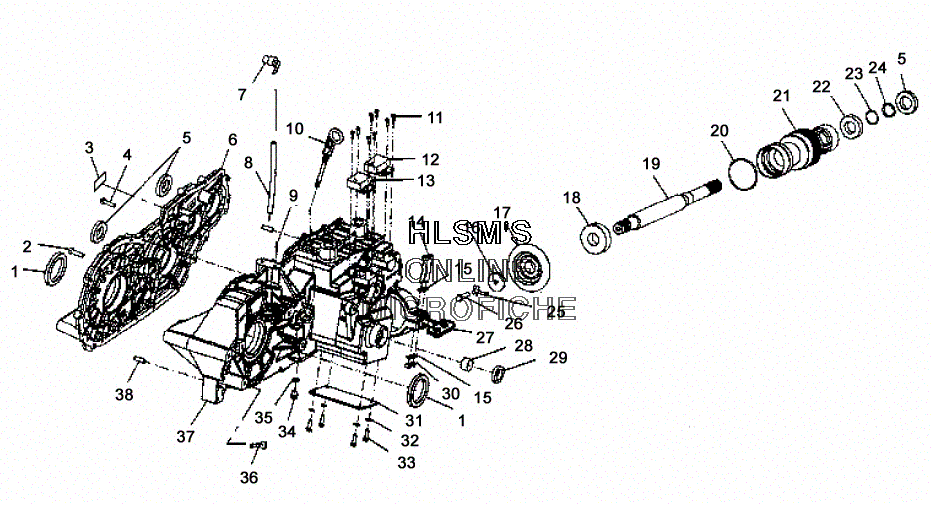

GEARCASE - CASE AND SNORKLE для Polaris SPORTSMAN 500 HO (A01CH50AB) (PORCHE RED) - 2001 года выпуска
-
№АртикулНазвание
-
13233256 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
23233026 SCREWSCREW
-
33233636 DECAL, SWITCHDECAL, SWITCH
-
43233252 SCREWSCREW
-
53233248 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
63233778 GEARCASE (LEFT)GEARCASE (LEFT)
-
77052095 FITTING (90 DEG)FITTING (90 DEG)
-
88360009-600 FUEL LINE (1/8 ID 600 CM.) (OPT)FUEL LINE (1/8 ID 600 CM.) (OPT)
-
93233037 VENTVENT
-
103233475 DIPSTICKDIPSTICK
-
113233749 SCREWSCREW
-
123233617 SWITCH, GEAR INDICATION 2 PSTNSWITCH, GEAR INDICATION 2 PSTN
-
133233635 SWITCH, GEAR INDICATION 3 PSTNSWITCH, GEAR INDICATION 3 PSTN
-
143233442 BOLTBOLT
-
163233352 WASHERWASHER
-
173233476 GEAR, SNORKEL (31 TEETH)GEAR, SNORKEL (31 TEETH)
-
193233446 SHAFT, SNORKELSHAFT, SNORKEL
-
203233302 O-RINGO-RING
-
213233750 TUBE, SNORKELTUBE, SNORKEL
-
223233305 BEARING, BALLBEARING, BALL
-
233233353 SPACER (1.180X.995X.010)SPACER (1.180X.995X.010)
-
233233354 SPACER (1.180X.995X.025)SPACER (1.180X.995X.025)
-
233233355 SPACER (1.180X.995X.040)SPACER (1.180X.995X.040)
-
233233356 SPACER (1.180X.995X.005)SPACER (1.180X.995X.005)
-
233233357 SPACER (1.180X.995X.008)SPACER (1.180X.995X.008)
-
243233306 RING, RETAININGRING, RETAINING
-
253233444 BOLT, LOCK SNORKEL GEARBOLT, LOCK SNORKEL GEAR
-
263233351 BOLTBOLT
-
273233779 SPACER, SNORKLE CLAMPSPACER, SNORKLE CLAMP
-
283233292 BUSHINGBUSHING
-
293233293 SEALSEAL
-
303233291 NUT, FLEXLOCKNUT, FLEXLOCK
-
313233294 PLATE, COVERPLATE, COVER
-
323233295 WASHER, LOCKWASHER, LOCK
-
333233296 SCREWSCREW
-
343233777 PLUG, HEX FLANGEPLUG, HEX FLANGE
-
353233254 PLUG, WASHERPLUG, WASHER
-
367517844 SCREWSCREW
-
373233776 GEARCASE (RIGHT)GEARCASE (RIGHT)
-
383233247 PIN, DOWELPIN, DOWEL
