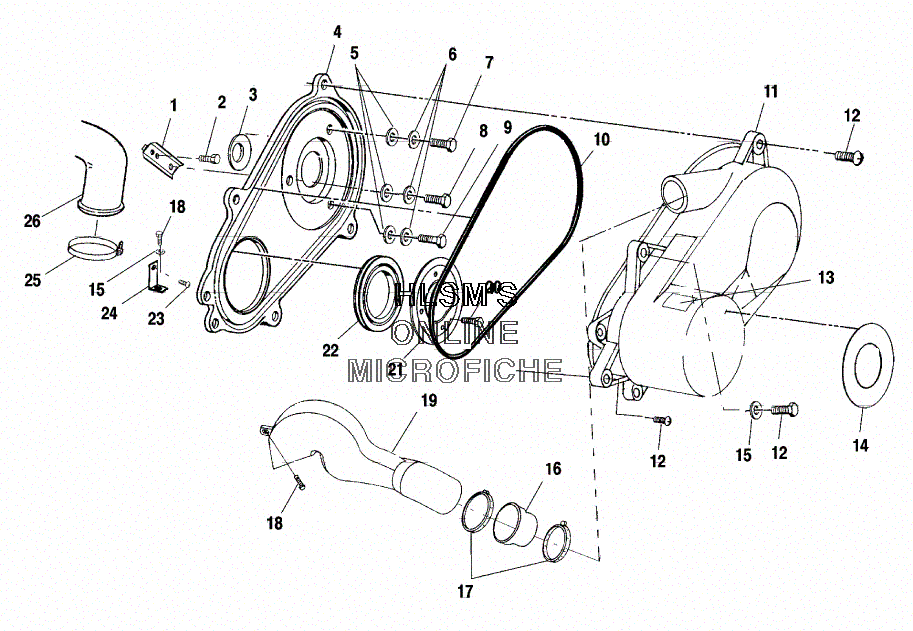

CLUTCH COVER для Polaris SPORTSMAN 400 (A01CH42AC) (MEDIUM (YELLOW) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1040519-067 BRACKET, REAR CLUTCH CVR (BLACK)
    BRACKET, REAR CLUTCH CVR (BLACK)
  • 2
    7512240 BOLT
    BOLT
  • 3
    5410489 SEAL, COVER CASE
    SEAL, COVER CASE
  • 4
    2201851 COVER, INNER CLUTCH KIT SVC 863 (INCL. 12,23)
    COVER, INNER CLUTCH KIT SVC 863 (INCL. 12,23)
  • 5
    7555748 WASHER
    WASHER
  • 6
    7552605 WASHER
    WASHER
  • 7
    7512247 BOLT
    BOLT
  • 8
    7512277 BOLT
    BOLT
  • 9
    7512278 BOLT
    BOLT
  • 10
    5521301 SEAL, CLUTCH COVER
    SEAL, CLUTCH COVER
  • 11
    5433451-070 COVER, CLUTCH OUTER HV (BLACK)
    COVER, CLUTCH OUTER HV (BLACK)
  • 12
    7512094 SCREW
    SCREW
  • 13
    7078689 DECAL
    DECAL
  • 14
    7074782 DECAL, AUTO.TRANSMISSION
    DECAL, AUTO.TRANSMISSION
  • 15
    7555935 WASHER
    WASHER
  • 16
    5411489 BOOT, DUCT HI-FLOW
    BOOT, DUCT HI-FLOW
  • 17
    7080761 STRAP, PANDUIT 14''
    STRAP, PANDUIT 14''
  • 18
    7512232 BOLT
    BOLT
  • 19
    5433980 DUCT, CLUTCH OUTLET (16.6)
    DUCT, CLUTCH OUTLET (16.6)
  • 21
    5240409-067 BRACKET, CLUTCH SEAL
    BRACKET, CLUTCH SEAL
  • 22
    5410575 SEAL, COVER CASE
    SEAL, COVER CASE
  • 23
    7512095 SCREW
    SCREW
  • 24
    5241156-067 BRACKET, CLUTCH COVER (BLACK)
    BRACKET, CLUTCH COVER (BLACK)
  • 25
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
