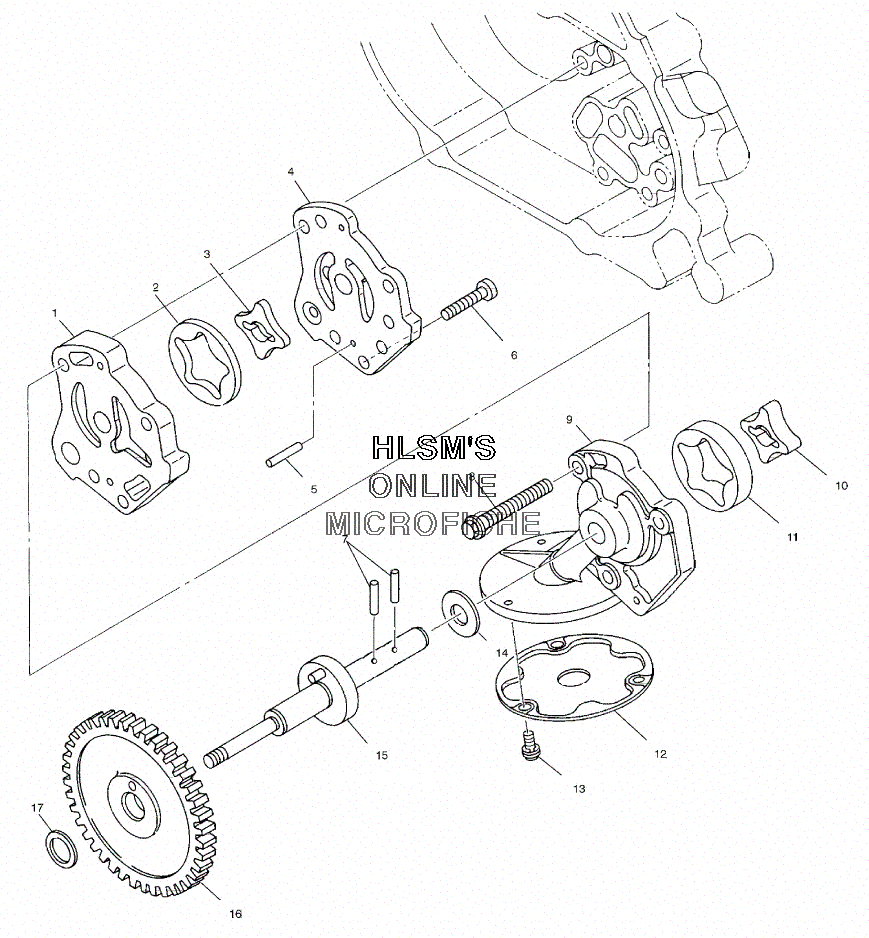

OIL PUMP для Polaris SPORTSMAN 400 (A01CH42AB) (PORCHE RED) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3084946 CASE #2, OILPUMP
    CASE #2, OILPUMP
  • 2
    3084949 ROTOR, OUTER FEED
    ROTOR, OUTER FEED
  • 3
    3084948 ROTOR, INNER FEED
    ROTOR, INNER FEED
  • 4
    3084944 PUMP, OIL (INCL. 1-7,9-15)
    PUMP, OIL (INCL. 1-7,9-15)
  • 4
    3084945 CASE #1, OIL PUMP
    CASE #1, OIL PUMP
  • 5
    3084955 PIN, DOWEL
    PIN, DOWEL
  • 6
    3085535 SCREW
    SCREW
  • 7
    3084954 PIN, DOWEL
    PIN, DOWEL
  • 8
    3084962 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 9
    3084947 CASE #3, OIL PUMP
    CASE #3, OIL PUMP
  • 10
    3084950 ROTOR, INNER SCAV
    ROTOR, INNER SCAV
  • 11
    3084951 ROTOR, OUTER
    ROTOR, OUTER
  • 12
    3084956 STRAINER UNIT, OIL
    STRAINER UNIT, OIL
  • 13
    3084205 SCREW AND WASHER
    SCREW AND WASHER
  • 14
    3084953 WASHER
    WASHER
  • 15
    3084952 SHAFT, PUMP
    SHAFT, PUMP
  • 16
    3084958 GEAR 2, PUMP
    GEAR 2, PUMP
  • 17
    3084959 SPACER (0.8) (OPT)
    SPACER (0.8) (OPT)
  • 17
    3084960 SPACER (1.0) (OPT)
    SPACER (1.0) (OPT)
  • 17
    3084961 SPACER (1.2) (OPT)
    SPACER (1.2) (OPT)
