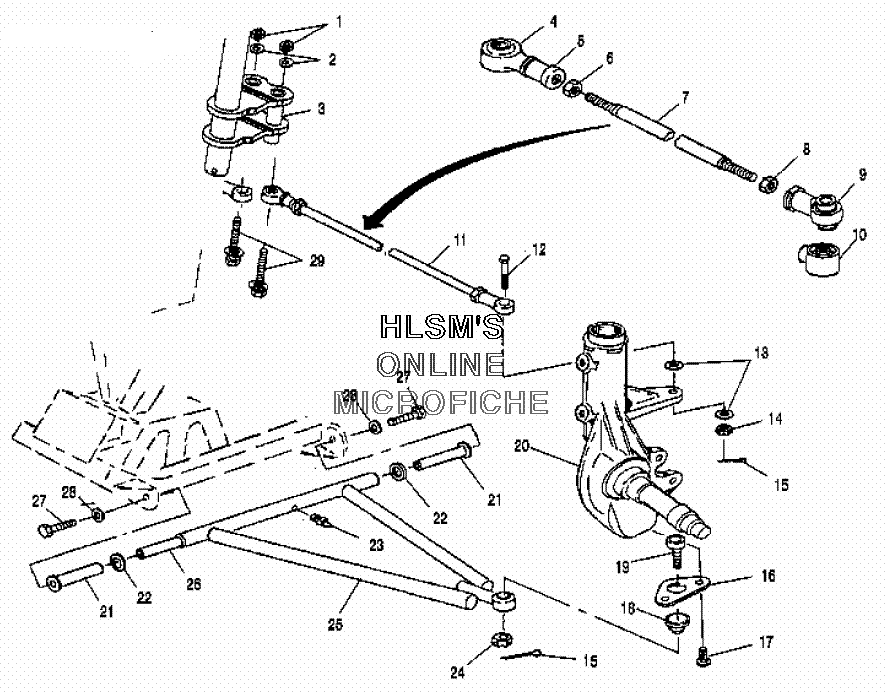

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris SCRAMBLER 500 2X4 (A01BA50AA) - 2001 года выпуска`
-
№АртикулНазвание
-
17542403 NUT, LOCKNUT, LOCK
-
27558403 WASHER WROUGHTWASHER WROUGHT
-
35333367 BUSHINGBUSHING
-
45411291 SEAL, BOOT ROD END (1/2 IN)SEAL, BOOT ROD END (1/2 IN)
-
57061034 ROD END (RIGHT)ROD END (RIGHT)
-
67542711 NUT, JAMNUT, JAM
-
75020927 ROD, TIEROD, TIE
-
87547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
97061054 ROD, END 42 DEG (10MM,1/2-20,LEFT)ROD, END 42 DEG (10MM,1/2-20,LEFT)
-
105411920 BOOT, SEAL ROD END (10MM)BOOT, SEAL ROD END (10MM)
-
111820806 TIE, ROD ASSY.TIE, ROD ASSY.
-
127517674 BOLT, HEX WASH HDBOLT, HEX WASH HD
-
137556099 WASHERWASHER
-
147546904 NUT, CASTLENUT, CASTLE
-
157661203 PIN COTTERPIN COTTER
-
165240717 BRACKET, BALLJOINTBRACKET, BALLJOINT
-
177512284 BOLT, SOCKETBOLT, SOCKET
-
185410548 BOOT, RUBBERBOOT, RUBBER
-
197080927 BALL, JOINT 52 DEGBALL, JOINT 52 DEG
-
215433066 BUSHING, A ARM LONGBUSHING, A ARM LONG
-
225020677 BUSHING, A-ARM SPACERBUSHING, A-ARM SPACER
-
237080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
247542438 NUT, CASTLENUT, CASTLE
-
252201601 A-FRAME, KIT (LEFT) (1541454)A-FRAME, KIT (LEFT) (1541454)
-
252201602 A-FRAME, KIT (RIGHT) (1541455)A-FRAME, KIT (RIGHT) (1541455)
-
265020681 SHAFT, A-ARMSHAFT, A-ARM
-
277512492 SCREWSCREW
-
287552603 WASHERWASHER
-
297517527 BOLT (AA)BOLT (AA)
