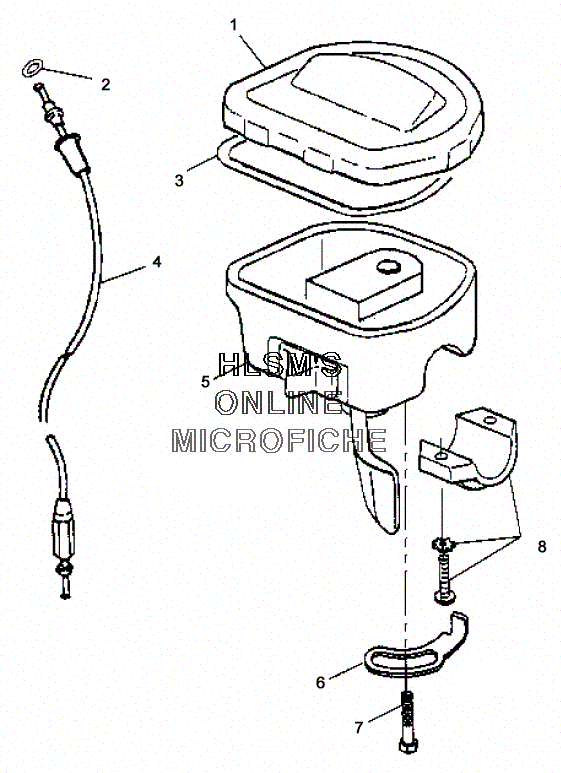

HANDLEBAR - THROTTLE ASSY. W/ CABLE для Polaris MAGNUM 325 4X4 (A01CD32AB) (MOSSY OAK CAMO) - 2001 года выпуска
-
№АртикулНазвание
-
15434113 COVER, THROTTLE CONTROLCOVER, THROTTLE CONTROL
-
25410193 O-RINGO-RING
-
35411439 O-RINGO-RING
-
47080969 CABLE, THROTTLE 1/4 TURN 991 MMCABLE, THROTTLE 1/4 TURN 991 MM
-
52010205 THROTTLE CONTROL, ASSY. (AWD) (INCL.8)THROTTLE CONTROL, ASSY. (AWD) (INCL.8)
-
82010191 ASSY., THROTTLE CLAMPASSY., THROTTLE CLAMP
