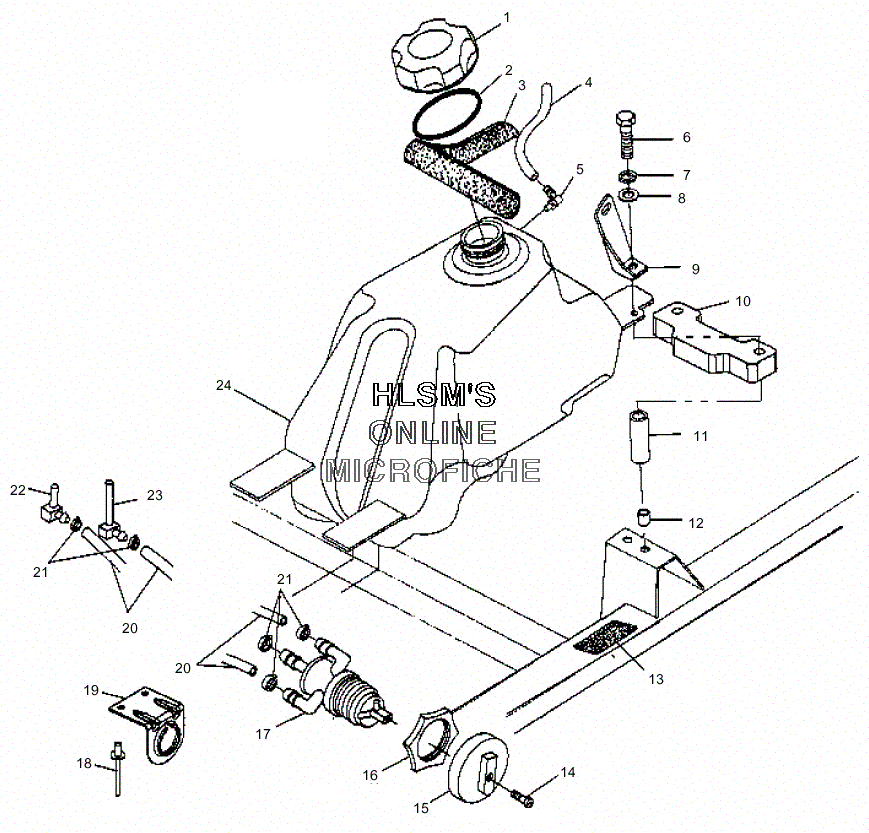

FUEL TANK для Polaris MAGNUM 325 2X4 (A01CB32AB) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 2
    5812123 GASKET, GAS CAP
    GASKET, GAS CAP
  • 3
    5811899 FOAM, SEAL (17'')
    FOAM, SEAL (17'')
  • 4
    8360009-600 FUEL LINE (1/8 ID, 600 CM) (OPT)
    FUEL LINE (1/8 ID, 600 CM) (OPT)
  • 5
    5431053 VENT, TANK
    VENT, TANK
  • 6
    7517451 BOLT
    BOLT
  • 7
    7552801 LOCK WASHER
    LOCK WASHER
  • 8
    7558301 WASHER
    WASHER
  • 9
    5222154-067 BRACKET, FUELCOVER (LEFT/REAR/BLACK)
    BRACKET, FUELCOVER (LEFT/REAR/BLACK)
  • 9
    5222155-067 BRACKET, FUELCOVER (RIGHT/REAR/BLACK)
    BRACKET, FUELCOVER (RIGHT/REAR/BLACK)
  • 10
    5811796 FOAM, INTAKE SPLASH
    FOAM, INTAKE SPLASH
  • 11
    5333936 SPACER
    SPACER
  • 12
    7547069 NUTSERT, HEX
    NUTSERT, HEX
  • 13
    5810317 PAD, FUELTANK BRACKET
    PAD, FUELTANK BRACKET
  • 14
    7517505 SCREW
    SCREW
  • 15
    5432559 KNOB, FUELVALVE
    KNOB, FUELVALVE
  • 16
    5432733 NUT, FUELVALVE
    NUT, FUELVALVE
  • 17
    7052161 VALVE, 3-WAY
    VALVE, 3-WAY
  • 18
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 19
    5240577-067 BRACKET, FUELVALVE (BLACK)
    BRACKET, FUELVALVE (BLACK)
  • 20
    8450040-600 FUEL LINE (1/4 ID, 600 CM.) (OPT)
    FUEL LINE (1/4 ID, 600 CM.) (OPT)
  • 21
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    7052149 FITTING, FUEL OUT RES. Z
    FITTING, FUEL OUT RES. Z
  • 23
    7052146 FITTING, FUEL OUT MAIN Y
    FITTING, FUEL OUT MAIN Y
  • 24
    2520183 TANK, FUEL ASSY. (INCL. 5,22,23)
    TANK, FUEL ASSY. (INCL. 5,22,23)
