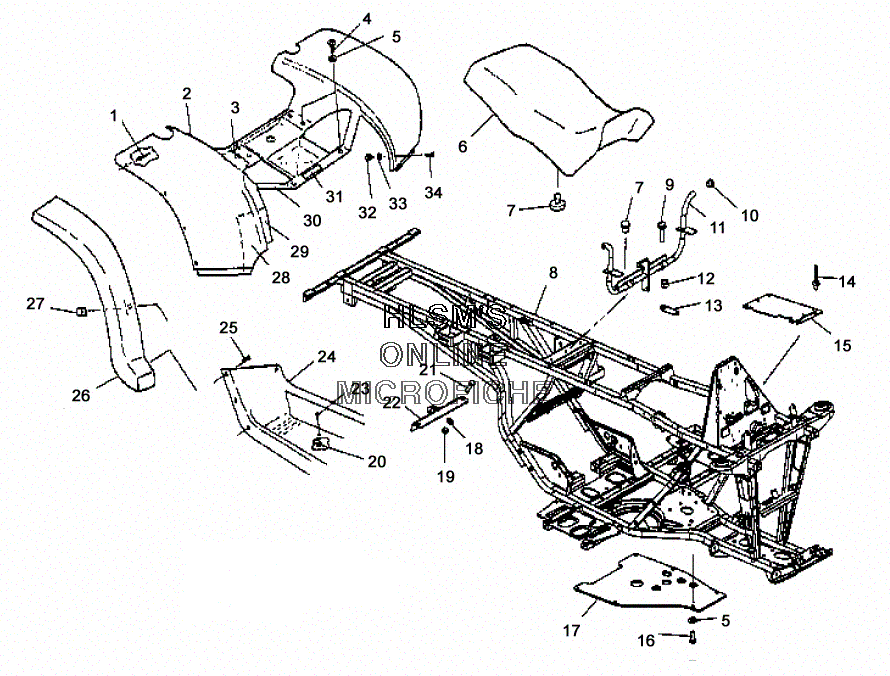

FENDER - REAR W/ SEAT для Polaris BIG BOSS INTERNATION (A01CL50DA) - 2001 года выпуска
-
№АртикулНазвание
-
17661645 RIVETRIVET
-
25433428-195 FENDER, REAR (EB GREEN)FENDER, REAR (EB GREEN)
-
35811107 FOIL, REAR FENDER (REAR)FOIL, REAR FENDER (REAR)
-
47512242 SCREWSCREW
-
57555859 WASHER, FLATWASHER, FLAT
-
62682701-070 SEAT (BLACK) (INCL. 7)SEAT (BLACK) (INCL. 7)
-
62682519-070 COVER, SEAT 6X6 SVC (BLACK)COVER, SEAT 6X6 SVC (BLACK)
-
65811104 FOIL, SEATBASE LARGEFOIL, SEATBASE LARGE
-
65811105 FOIL, SEATBASE SMALLFOIL, SEATBASE SMALL
-
75412067 BUMPER, RUBBERBUMPER, RUBBER
-
81013323-067 FRAME (BLACK)FRAME (BLACK)
-
97512111 BOLTBOLT
-
105432798 PLUG, NYLONPLUG, NYLON
-
111013307-067 LEVER, BOX (BLACK)LEVER, BOX (BLACK)
-
127542153 NUTNUT
-
137041879 SPRING, LATCH RETURNSPRING, LATCH RETURN
-
147661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
155242953-067 GUARD, CLUTCH (BLACK)GUARD, CLUTCH (BLACK)
-
167515179 SCREWSCREW
-
175432763 GUARD, ROCKGUARD, ROCK
-
187555734 WASHERWASHER
-
197542324 NUTNUT
-
207542122 NUT, LOCKNUT, LOCK
-
217512392 BOLTBOLT
-
221040293-067 MOUNT, REAR STRUTMOUNT, REAR STRUT
-
237512279 SCREWSCREW
-
245432221-070 FOOTWELL, NYLON (LEFT/BLACK)FOOTWELL, NYLON (LEFT/BLACK)
-
245433196-070 FOOTWELL, CDS NYLON (RIGHT/BLACK)FOOTWELL, CDS NYLON (RIGHT/BLACK)
-
257512232 BOLTBOLT
-
265433429 GRD, MUD REAR (LEFT/BLACK)GRD, MUD REAR (LEFT/BLACK)
-
265433430 GRD, MUD REAR (RIGHT/BLACK)GRD, MUD REAR (RIGHT/BLACK)
-
277670057 NUT, SPEEDNUT, SPEED
-
285811111 FOIL, FOAMFOIL, FOAM
-
295811106 FOIL, FR REAR FENDERFOIL, FR REAR FENDER
-
305811087 FOIL, FOAM (6X1)FOIL, FOAM (6X1)
-
317079902 DECAL, 4 STRK CARB/FILTER INFODECAL, 4 STRK CARB/FILTER INFO
-
327541925 NUTNUT
-
337555792 WASHERWASHER
-
347512085 SCREWSCREW
