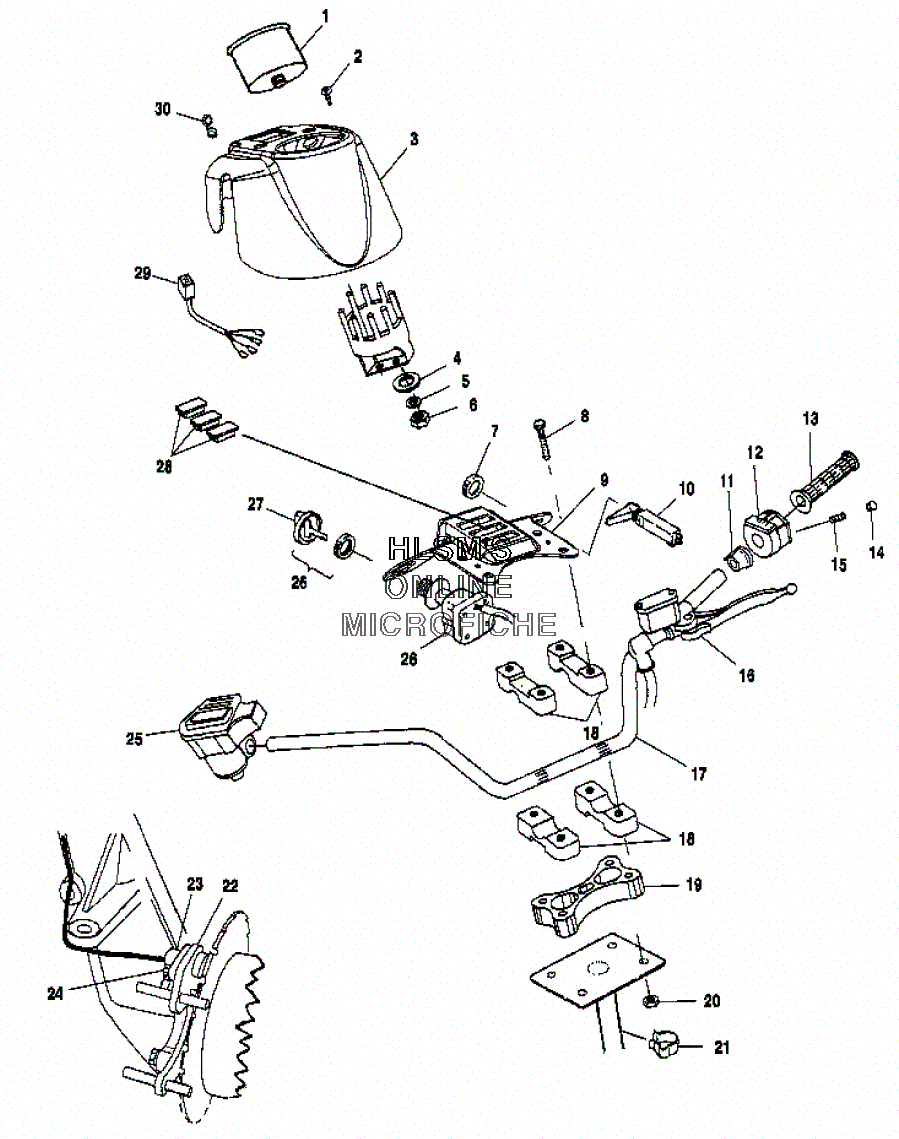

HANDLEBAR W/ HEADLIGHT для Polaris XPEDITION 425 (A00CK42AA) (DESERT DUNE) - 2000 года выпуска
-
№АртикулНазвание
-
13280298 SPEEDOMETER, XPED 6-PULSE ASSY.SPEEDOMETER, XPED 6-PULSE ASSY.
-
27512024 SCREWSCREW
-
35433183-070 PANEL, INST (BLACK)PANEL, INST (BLACK)
-
47558212 WASHER, FL-YWASHER, FL-Y
-
57555868 WASHER, LOCK (SS)WASHER, LOCK (SS)
-
67541933 NUT, BRASSNUT, BRASS
-
77080229 NUTNUT
-
87517224 SCREWSCREW
-
95241698-067 BRACKET, ACCESS. INST. PANEL (BLACK)BRACKET, ACCESS. INST. PANEL (BLACK)
-
107080726 CABLE, CHOKE W/ADJUSTERCABLE, CHOKE W/ADJUSTER
-
115432926 SPACER, SWITCH (LEFT)SPACER, SWITCH (LEFT)
-
124010262 SWITCH, HANDLEBAR H/L/O REV/ORSWITCH, HANDLEBAR H/L/O REV/OR
-
135431030 GRIP, HANDLEBARGRIP, HANDLEBAR
-
145432952 PLUG, HOLEPLUG, HOLE
-
157517625 SCREW, SETSCREW, SET
-
175224715-067 HANDLEBAR, TUBE (BLACK)HANDLEBAR, TUBE (BLACK)
-
185630629 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
195630633 BLOCK, RISER (GEN 4)BLOCK, RISER (GEN 4)
-
207542122 NUT, LOCKNUT, LOCK
-
217080631 CLIP, CABLE RETAINCLIP, CABLE RETAIN
-
224040081 SPEEDOMETER SENSOR LG, KIT (BUILT BEFORE 8/09/99)SPEEDOMETER SENSOR LG, KIT (BUILT BEFORE 8/09/99)
-
224010298 SENSOR, HALLEFFECT (INCL. 23) (BUILT AFTER 8/09/99)SENSOR, HALLEFFECT (INCL. 23) (BUILT AFTER 8/09/99)
-
235132382 CAP, HALL SENSOR (USED WITH 4010298 ONLY)CAP, HALL SENSOR (USED WITH 4010298 ONLY)
-
247517658 SCREWSCREW
-
264110264 SWITCH, IGNITION (INCL. KEY)SWITCH, IGNITION (INCL. KEY)
-
265433733 NUT, IGNITION SWITCH HOBBSNUT, IGNITION SWITCH HOBBS
-
264010278 KEY BLANK (6700 AND 6800 SERIES) (SEE NOTE)KEY BLANK (6700 AND 6800 SERIES) (SEE NOTE)
-
264010321 KEY BLANK (2700 AND 2800 SERIES) (SEE NOTE)KEY BLANK (2700 AND 2800 SERIES) (SEE NOTE)
-
275433534 KEY COVER, KEYSWITCHKEY COVER, KEYSWITCH
-
284040054 INDIC., ''NEUT./REV.''INDIC., ''NEUT./REV.''
-
284040053 INDIC., ''HOT TEMPERATURE''INDIC., ''HOT TEMPERATURE''
-
285430467 INDIC.INDIC.
-
292460728 HARNESS, HEADLIGHT PODHARNESS, HEADLIGHT POD
-
305432420 COVER, SCREW HINGED (BLACK)COVER, SCREW HINGED (BLACK)
