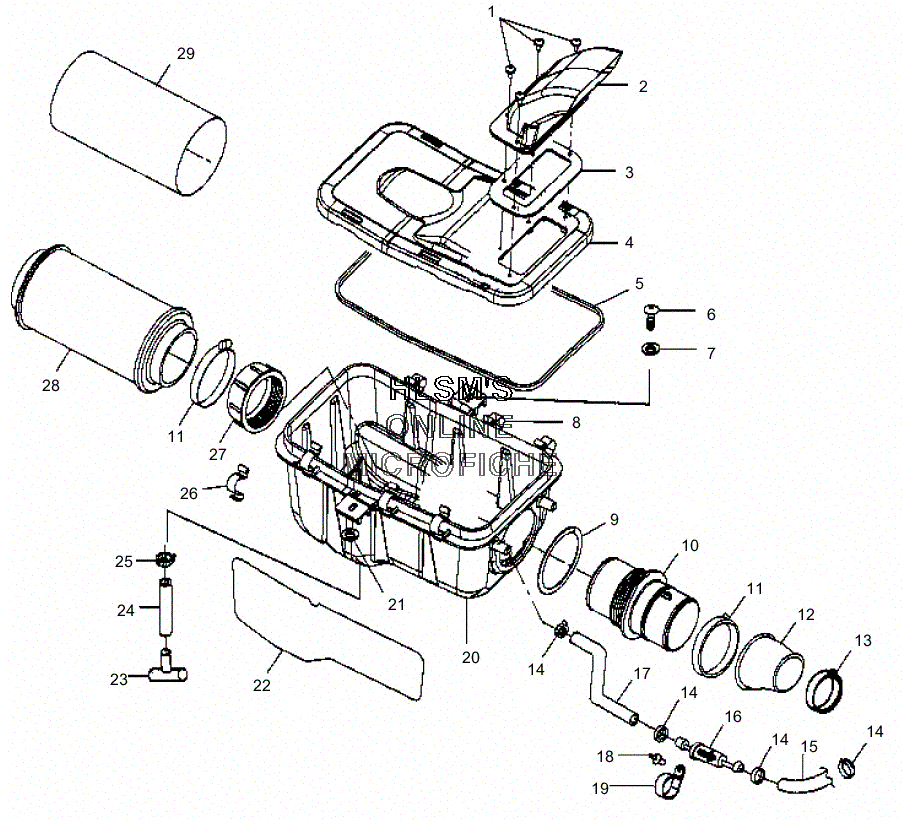

AIR BOX ASSY. для Polaris XPEDITION 425 2 (A00CK42AB) (PORCHE RED) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7517541 SCREW, SEMS
    SCREW, SEMS
  • 2
    5432859 DUCT, INLET AIRBOX COVER
    DUCT, INLET AIRBOX COVER
  • 3
    5411422 GASKET, INTAKE
    GASKET, INTAKE
  • 4
    5432868 COVER, AIRBOX
    COVER, AIRBOX
  • 5
    5811482 SEAL, AIRBOX COVER
    SEAL, AIRBOX COVER
  • 6
    7515179 SCREW
    SCREW
  • 7
    7558301 WASHER
    WASHER
  • 8
    5243694 CLIP, AIRBOX LOWPROFILE
    CLIP, AIRBOX LOWPROFILE
  • 9
    5830128 GASKET, CARBURETOR IN.DUCT
    GASKET, CARBURETOR IN.DUCT
  • 10
    5432473 DUCT, CARBURETOR INLET
    DUCT, CARBURETOR INLET
  • 11
    7080413 CLAMP, BAND NARROW
    CLAMP, BAND NARROW
  • 12
    5411539 BOOT, CARBURETOR
    BOOT, CARBURETOR
  • 13
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 14
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    5411723 HOSE, BREATHER FORMED (.38 I.D)
    HOSE, BREATHER FORMED (.38 I.D)
  • 16
    2530029 FILTER, BREATHER IN LINE
    FILTER, BREATHER IN LINE
  • 17
    5411724 HOSE, BREATHER FORMED (.38 I.D.)
    HOSE, BREATHER FORMED (.38 I.D.)
  • 18
    7670114 RIVET, PRESS IN
    RIVET, PRESS IN
  • 19
    7080653 CLAMP, HOSE NYLON (1'')
    CLAMP, HOSE NYLON (1'')
  • 20
    5433678 BOX, AIR INTAKE 4-STRK
    BOX, AIR INTAKE 4-STRK
  • 21
    5431863 INSULATOR
    INSULATOR
  • 22
    5811650 FOIL, AIRBOX
    FOIL, AIRBOX
  • 23
    5432377 PLUG, TRAP
    PLUG, TRAP
  • 24
    8450059-150 FUEL LINE (OPT)
    FUEL LINE (OPT)
  • 25
    7080650 CLAMP, HOSE
    CLAMP, HOSE
  • 26
    5242044 CLIP, AIR BOX
    CLIP, AIR BOX
  • 27
    5432601 COLLAR, CARBURETOR INLET
    COLLAR, CARBURETOR INLET
  • 28
    7080595 FILTER, AIR INTAKE
    FILTER, AIR INTAKE
  • 29
    5811633 FILTER, PRECLEAN. SLEEVE
    FILTER, PRECLEAN. SLEEVE
