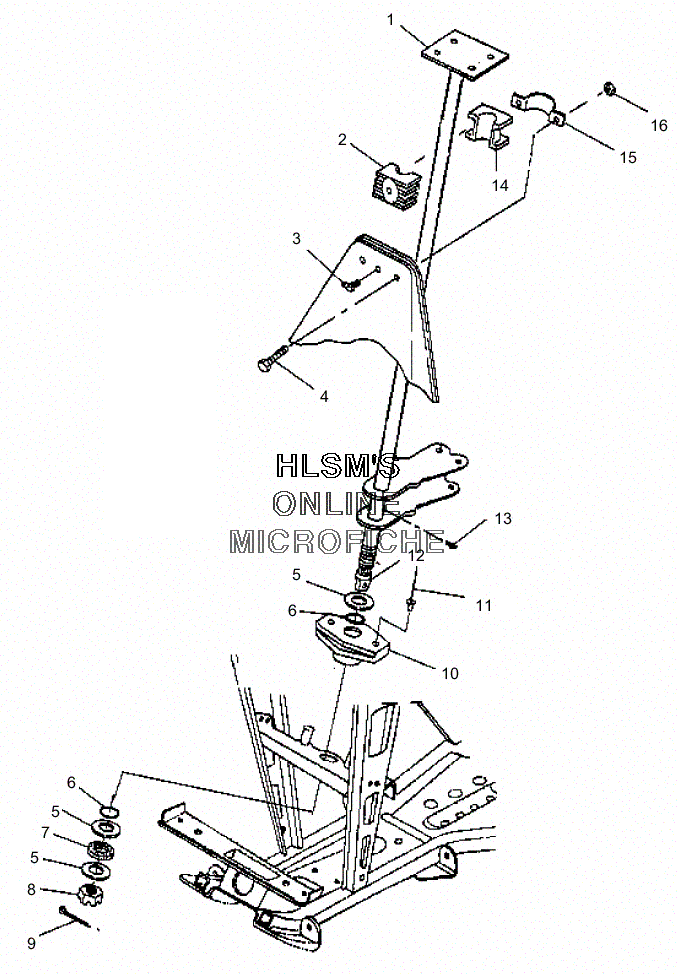

STEERING POST для Polaris XPEDITION 325 (A00CK32AA) - 2000 года выпуска`
-
№АртикулНазвание
-
11843067 POST, STEERING (4X4) (INCL. 12,13)POST, STEERING (4X4) (INCL. 12,13)
-
25433415 BUSHING, STEERING CONSOLEBUSHING, STEERING CONSOLE
-
37080424 FITTING, LUBEFITTING, LUBE
-
47515321 BOLTBOLT
-
57555878 BUSHINGBUSHING
-
65410772 O-RINGO-RING
-
75431571 SPACER, STEERING POSTSPACER, STEERING POST
-
87543203 NUT, HEXAGON SLOTTEDNUT, HEXAGON SLOTTED
-
97661633 PIN, COTTERPIN, COTTER
-
105431570 BUSHING, STEERING (LOWER)BUSHING, STEERING (LOWER)
-
117661632 RIVET, MONOBOLTRIVET, MONOBOLT
-
125431574 PLUG, GREASE STEERINGPLUG, GREASE STEERING
-
137080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
145433416 BUSHING, STEERING (UPPER)BUSHING, STEERING (UPPER)
-
155222999-067 BRACKET, STEERING BUSHING (UPPER/BLACK)BRACKET, STEERING BUSHING (UPPER/BLACK)
-
167542324 NUTNUT
