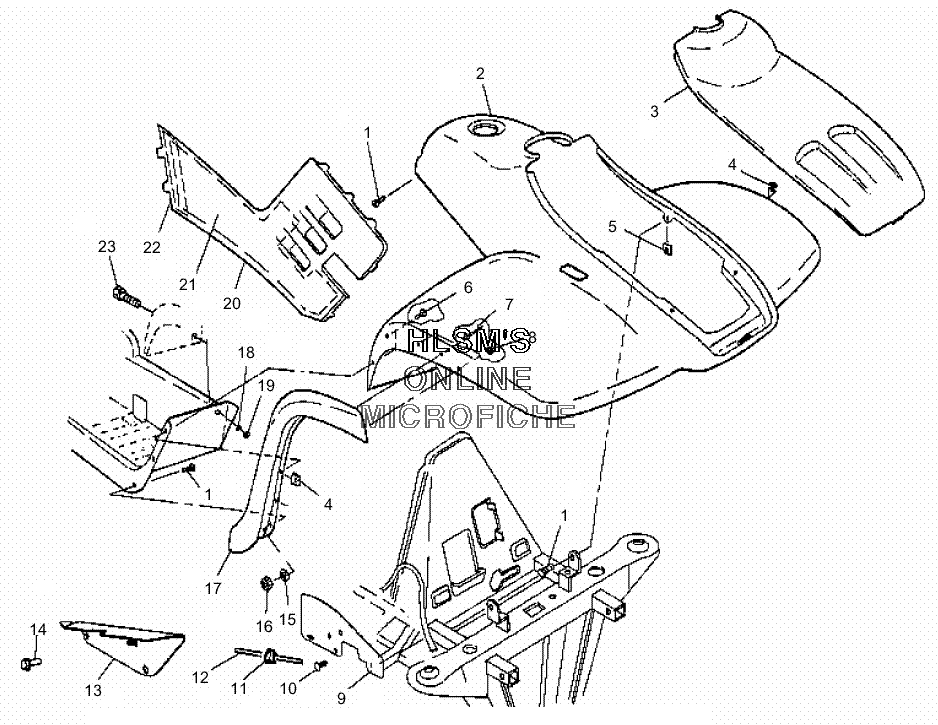

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 500 (A00CH50AH) ()PORCHE RED) - 2000 года выпуска`
-
№АртикулНазвание
-
17512232 BOLTBOLT
-
22631987-191 FENDER, SVC (FRONT/OLIVE GREEN)FENDER, SVC (FRONT/OLIVE GREEN)
-
22631987-136 FENDER, SVC (FRONT/PORCHE RED)FENDER, SVC (FRONT/PORCHE RED)
-
22631987-053 FENDER, ASSY. SVC (FRONT/MD.YELLOW)FENDER, ASSY. SVC (FRONT/MD.YELLOW)
-
22632306-283 FENDER, ASSY. SVC (FRONT/BREAK UP CAMO)FENDER, ASSY. SVC (FRONT/BREAK UP CAMO)
-
35432088-136 COVER (FRONT/P.RED)COVER (FRONT/P.RED)
-
47670085 CLIP, SPRINGCLIP, SPRING
-
57670057 NUT, SPEEDNUT, SPEED
-
67517312 SCREWSCREW
-
77661645 RIVETRIVET
-
87670068 NUT, PUSH-ONNUT, PUSH-ON
-
95811917 SHIELD, DEFLECTORSHIELD, DEFLECTOR
-
107670090 CLIP, PLASTIC DART (NYLON)CLIP, PLASTIC DART (NYLON)
-
117670109 CLIP, ROUTINGCLIP, ROUTING
-
125411778 HOSE (OPT)HOSE (OPT)
-
135244913-067 GUARD, SPLASH SPORTMAN (LEFT/BLACK)GUARD, SPLASH SPORTMAN (LEFT/BLACK)
-
135244914-067 GUARD, SPLASH SPORTMAN (RIGHT/BLACK)GUARD, SPLASH SPORTMAN (RIGHT/BLACK)
-
147517685 SCREWSCREW
-
157555931 WASHERWASHER
-
167542122 NUT, LOCKNUT, LOCK
-
175431798-070 GUARD, MUD (FRONT/LEFT/BLACK)GUARD, MUD (FRONT/LEFT/BLACK)
-
175431799-070 GUARD, MUD (FRONT/RIGHT/BLACK)GUARD, MUD (FRONT/RIGHT/BLACK)
-
187541925 NUTNUT
-
197555792 WASHERWASHER
-
205431809-136 PANEL (LEFT/SIDE/P.RED)PANEL (LEFT/SIDE/P.RED)
-
202620085-136 PANEL/FOIL ASSY (RIGHT/P.RED)PANEL/FOIL ASSY (RIGHT/P.RED)
-
215810996 FOIL, FOAM (SIDEPANEL)FOIL, FOAM (SIDEPANEL)
-
225811491 FOIL (RIGHT/SIDEPANEL/GEN IV)FOIL (RIGHT/SIDEPANEL/GEN IV)
-
237512085 SCREWSCREW
