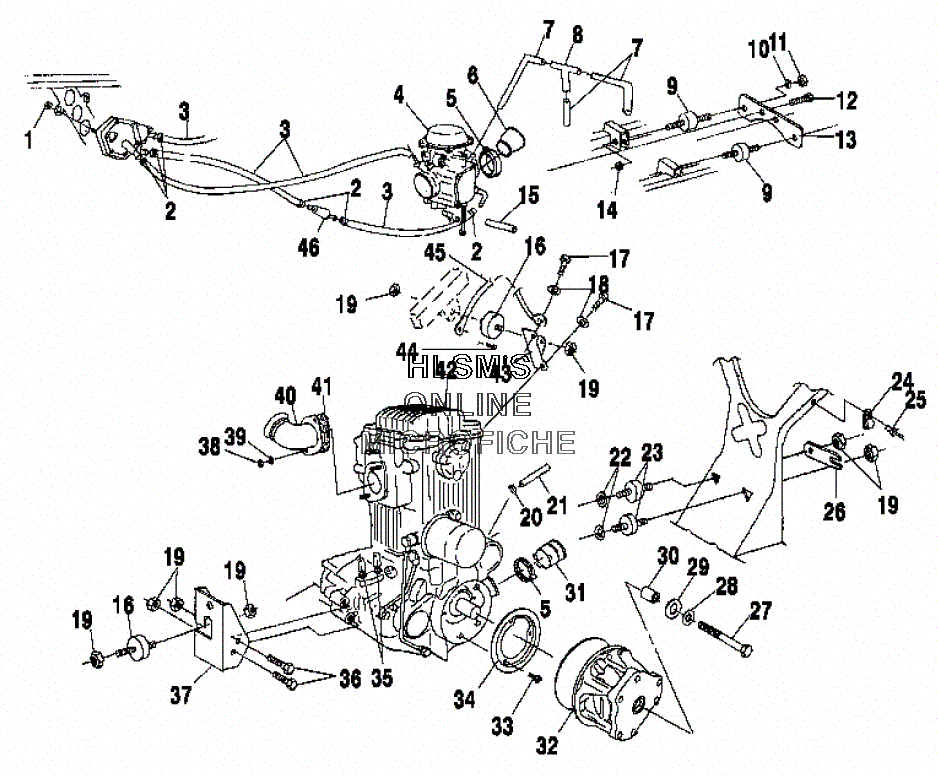

MOUNTING - ENGINE для Polaris SPORTSMAN 335 (A00CH33AE) (OLVIVE GREEN) - 2000 года выпуска
-
№АртикулНазвание
-
17546601 NUT, NYLOKNUT, NYLOK
-
27080003 CLAMP, HOSECLAMP, HOSE
-
38450040-600 FUEL LINE (1/4 ID 600 CM.) (OPT)FUEL LINE (1/4 ID 600 CM.) (OPT)
-
57080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
65410995 BOOT, CARBURETORBOOT, CARBURETOR
-
78450003-1525 FUEL LINE (1/4 ID 1525 CM.)FUEL LINE (1/4 ID 1525 CM.)
-
87052075 FITTING, TEEFITTING, TEE
-
93110032 MOUNT, RUBBERMOUNT, RUBBER
-
107552605 WASHERWASHER
-
117542105 NUT, HEXNUT, HEX
-
123084205 SCREW AND WASHERSCREW AND WASHER
-
135211626-067 STRAP, CARBURETOR MOUNT (BLACK)STRAP, CARBURETOR MOUNT (BLACK)
-
147547069 NUTSERT, HEXNUTSERT, HEX
-
158360009-600 FUEL LINE (1/8 ID 600 CM.) (OPT)FUEL LINE (1/8 ID 600 CM.) (OPT)
-
163110044 MOUNT, RUBBER TOPMOUNT, RUBBER TOP
-
177512315 BOLTBOLT
-
187552901 LOCK WASHERLOCK WASHER
-
197542411 NUT, LOCKNUT, LOCK
-
207080694 CLAMP, HOSE SPRINGCLAMP, HOSE SPRING
-
215411857 HOSE, BREATHER CRANKCASE FORMEDHOSE, BREATHER CRANKCASE FORMED
-
227555815 WASHER, FLATWASHER, FLAT
-
233110046 MOUNT, RUBBER (FRONT)MOUNT, RUBBER (FRONT)
-
247080539 CLAMP, NYLON CABLECLAMP, NYLON CABLE
-
257621462 RIVETRIVET
-
265224658-067 STRAP, FRAME SUPPORT (BLACK)STRAP, FRAME SUPPORT (BLACK)
-
277512566 BOLTBOLT
-
287575202 WASHER, LOCKWASHER, LOCK
-
295210748 WASHERWASHER
-
305430261 BUSHING - RETAINING BOLTBUSHING - RETAINING BOLT
-
315410421 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
357080474 CLAMP, HOSECLAMP, HOSE
-
367515417 BOLTBOLT
-
375241150-067 MOUNT, ENGINE (FRONT/BLACK)MOUNT, ENGINE (FRONT/BLACK)
-
383080285 NUTNUT
-
393080530 WASHER, LOCKWASHER, LOCK
-
401260771-029 MANIFOLD (BLACK)MANIFOLD (BLACK)
-
423085826 ENG.ES33PFE-01, SHORT BLOCK (SEE FOOTNOTE)ENG.ES33PFE-01, SHORT BLOCK (SEE FOOTNOTE)
-
435241453-067 MOUNT, ENGINE TOP (BLACK)MOUNT, ENGINE TOP (BLACK)
-
447512232 BOLTBOLT
-
454010132 CABLE, GROUND ENGINECABLE, GROUND ENGINE
-
462530009 FILTER, IN-LINEFILTER, IN-LINE
