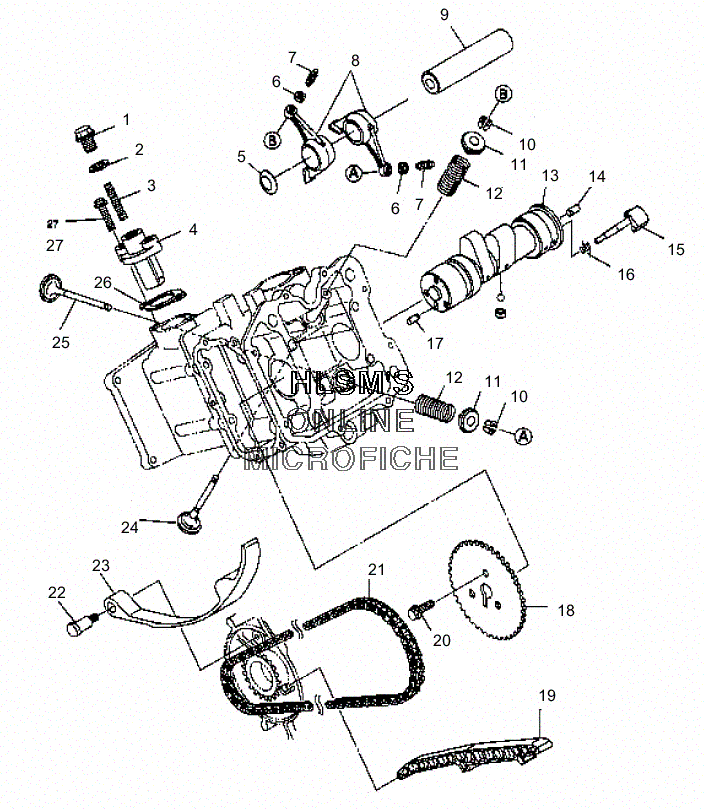

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN 335 (A00CH33AD) (PORCHE RED) - 2000 года выпуска`
-
№АртикулНазвание
-
13084845 PLUGPLUG
-
23084920 GASKET, PLUGGASKET, PLUG
-
33086839 SPRING, TENSIONERSPRING, TENSIONER
-
43086813 TENSIONER, ASSY. (INCL. 1-3)TENSIONER, ASSY. (INCL. 1-3)
-
53085836 WASHER, WAVEWASHER, WAVE
-
63084912 NUTNUT
-
73084911 SCREW, ADJUSTINGSCREW, ADJUSTING
-
83084910 ROCKERARM ASSY., INTAKE (INCL. 6,7)ROCKERARM ASSY., INTAKE (INCL. 6,7)
-
93085780 SHAFT, ROCKERSHAFT, ROCKER
-
103084908 COLLET, VALVECOLLET, VALVE
-
113084907 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
123084906 SPRING, VALVESPRING, VALVE
-
133085853 CAMSHAFT (INCL. 14-17)CAMSHAFT (INCL. 14-17)
-
143086838 DOWEL, PINDOWEL, PIN
-
153085348 LEVER, RELEASELEVER, RELEASE
-
163085076 SPRING, RETURNSPRING, RETURN
-
173084899 PIN, DOWELPIN, DOWEL
-
183084914 SPROCKET 2SPROCKET 2
-
193084916 GUIDE, CHAINGUIDE, CHAIN
-
203081657 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
213084915 CHAIN, TIMINGCHAIN, TIMING
-
223084924 BOLT, PIVOT LEVERBOLT, PIVOT LEVER
-
233084917 LEVERLEVER
-
243085778 VALVE, INTAKEVALVE, INTAKE
-
253086441 VALVE, EXHAUSTVALVE, EXHAUST
-
263084922 GASKET, TENSIONERGASKET, TENSIONER
-
273084874 BOLT, FLANGEBOLT, FLANGE
