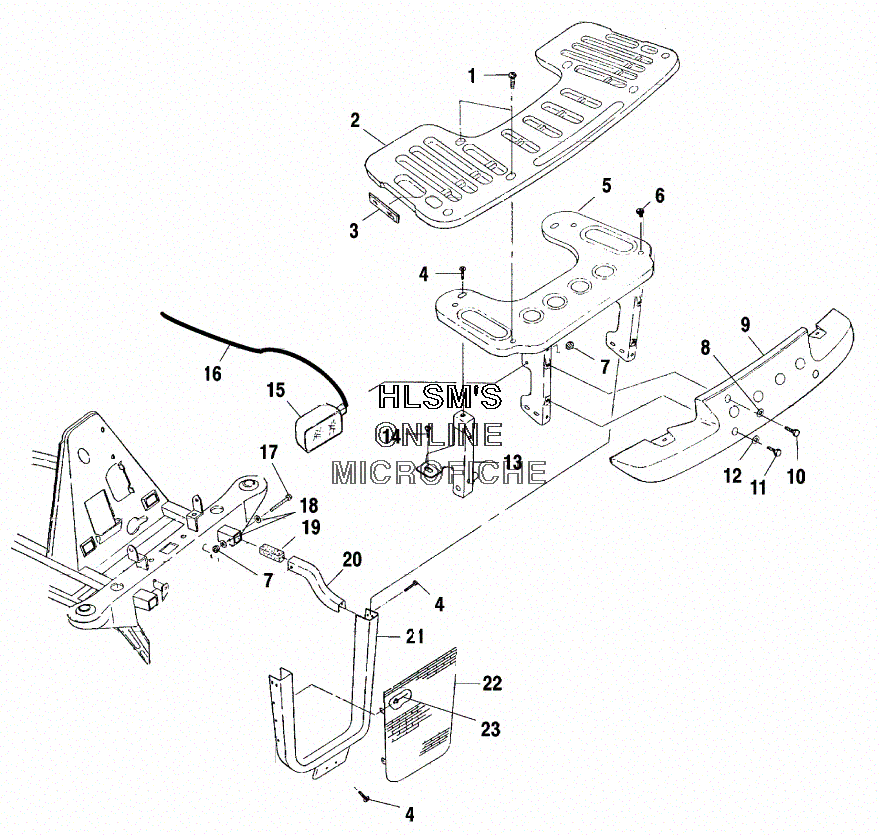

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 335 (A00CH33AB) (PORCHE RED) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7517685 SCREW
    SCREW
  • 2
    2670180 RACK, FRONT (BLACK) (INCL. 3 AND WARNING DECAL)
    RACK, FRONT (BLACK) (INCL. 3 AND WARNING DECAL)
  • 3
    2670071 REFLECTOR (AMBER)
    REFLECTOR (AMBER)
  • 4
    7515399 SCREW
    SCREW
  • 5
    2200775 FRONT, RACK MOUNT (BLACK)
    FRONT, RACK MOUNT (BLACK)
  • 6
    7547069 NUTSERT, HEXAGON
    NUTSERT, HEXAGON
  • 7
    7542324 NUT
    NUT
  • 8
    7558403 WASHER, WROUGHT
    WASHER, WROUGHT
  • 9
    5432155-070 BUMPER (BLACK)
    BUMPER (BLACK)
  • 10
    7515391 BOLT
    BOLT
  • 11
    7515390 BOLT
    BOLT
  • 12
    7555954 WASHER
    WASHER
  • 13
    1040554-067 SUPPORT, FRONT RACK (LEFT/BLACK)
    SUPPORT, FRONT RACK (LEFT/BLACK)
  • 13
    1040555-067 SUPPORT, FRONT RACK (RIGHT/BLACK)
    SUPPORT, FRONT RACK (RIGHT/BLACK)
  • 14
    7512232 BOLT
    BOLT
  • 15
    2431014 HEADLIGHT ASSY. (LEFT) (35W)
    HEADLIGHT ASSY. (LEFT) (35W)
  • 15
    2431015 HEADLIGHT ASSY. (RIGHT) (35W)
    HEADLIGHT ASSY. (RIGHT) (35W)
  • 15
    4030059 BULB, HEADLIGHT (27W) HOBBS
    BULB, HEADLIGHT (27W) HOBBS
  • 16
    2460610 HARNESS, HEADLIGHT LO
    HARNESS, HEADLIGHT LO
  • 17
    7515384 BOLT
    BOLT
  • 18
    7558402 WASHER, STEEL
    WASHER, STEEL
  • 19
    5810467 PLUG, FRAME
    PLUG, FRAME
  • 20
    5244623-067 EXTENSION, FRAME (LEFT/BLACK)
    EXTENSION, FRAME (LEFT/BLACK)
  • 20
    5244624-067 EXTENSION, FRAME (RIGHT/BLACK)
    EXTENSION, FRAME (RIGHT/BLACK)
  • 21
    5241583-067 GUARD, BRUSH (BLACK)
    GUARD, BRUSH (BLACK)
  • 22
    5240591-067 GRILL, BRUSHGUARD (BLACK)
    GRILL, BRUSHGUARD (BLACK)
  • 23
    7621330 RIVET, POP
    RIVET, POP
