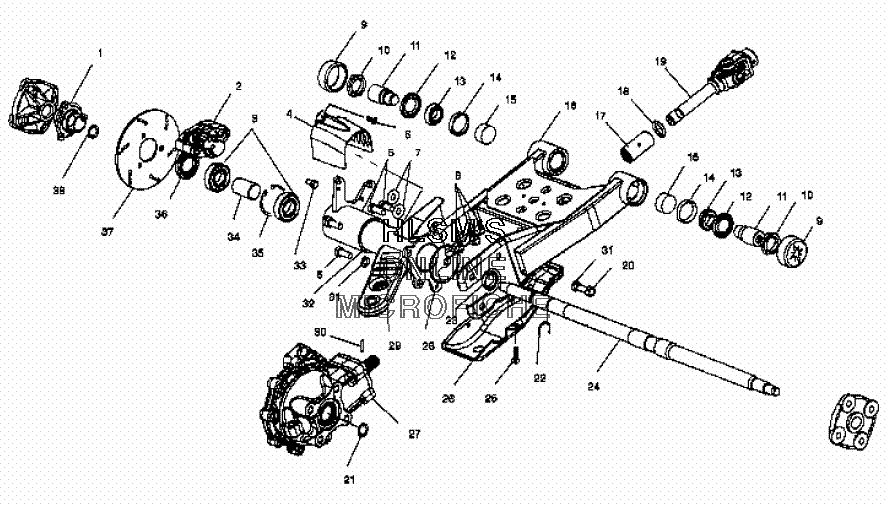

SUSPENSION - REAR SWING ARM W/ AXLE для Polaris MAGNUM 500 (A00CD50AA) - 2000 года выпуска`
-
№АртикулНазвание
-
15132152 HUB, BRAKE DISCHUB, BRAKE DISC
-
33513523 BEARING, BALL DOUBLE SEALBEARING, BALL DOUBLE SEAL
-
45411653 SHIELD, BRAKE LINE (REAR)SHIELD, BRAKE LINE (REAR)
-
57517604 BOLTBOLT
-
67512084 SCREWSCREW
-
77555721 WASHERWASHER
-
87542703 NUT FLEXNUT FLEX
-
95411532 CAP, SWING ARM PIVOTCAP, SWING ARM PIVOT
-
105131863 NUT, JAM SWING ARM PIVOTNUT, JAM SWING ARM PIVOT
-
115131864 PIVOT, SWING ARM THREADEDPIVOT, SWING ARM THREADED
-
123610072 SEAL, SWING ARM PIVOTSEAL, SWING ARM PIVOT
-
133554506 BEARING, TAPER ROLL CONEBEARING, TAPER ROLL CONE
-
143554507 BEARING, TAPER ROLL CUPBEARING, TAPER ROLL CUP
-
155411602 SEAL, SWINGARM PIVOTSEAL, SWINGARM PIVOT
-
161541323 SWING ARM (INCL. 14,15)SWING ARM (INCL. 14,15)
-
175132201 COUPLING, PROP SHAFT GREASEDCOUPLING, PROP SHAFT GREASED
-
177080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
185411092 O-RINGO-RING
-
191380137 PROPSHAFT ASSY. (REAR)PROPSHAFT ASSY. (REAR)
-
207517585 BOLTBOLT
-
215411531 O-RINGO-RING
-
227710482 RING, RETAININGRING, RETAINING
-
235131930 COLLAR, AXLE LOCK (REAR)COLLAR, AXLE LOCK (REAR)
-
245131862 AXLE (REAR)AXLE (REAR)
-
257517612 SCREWSCREW
-
261012881 SKID PLATE (REAR)SKID PLATE (REAR)
-
265242851-067 PLATE, SKID HOUSING (REAR/BLACK)PLATE, SKID HOUSING (REAR/BLACK)
-
265811716 PAD, RUBBERPAD, RUBBER
-
285411707 O-RINGO-RING
-
297078261 DECAL, HITCH (1225)DECAL, HITCH (1225)
-
307661913 PIN, SPRINGPIN, SPRING
-
317553201 LOCK WASHERLOCK WASHER
-
321012740-067 TUBE, AXLE (LEFT/BLACK) (BUILT BEFORE 3/01/00)TUBE, AXLE (LEFT/BLACK) (BUILT BEFORE 3/01/00)
-
321013193-067 AXLE TUBE, WELD (LEFT/BLACK) (BUILT AFTER 3/01/00)AXLE TUBE, WELD (LEFT/BLACK) (BUILT AFTER 3/01/00)
-
337515481 BOLTBOLT
-
345132075 SPACER, BEARINGSPACER, BEARING
-
357710471 RING, RETAINER INT.RING, RETAINER INT.
-
363610071 SEAL, AXLE (REAR)SEAL, AXLE (REAR)
-
375211849 DISC, BRAKE VENTEDDISC, BRAKE VENTED
-
385411092 O-RINGO-RING
