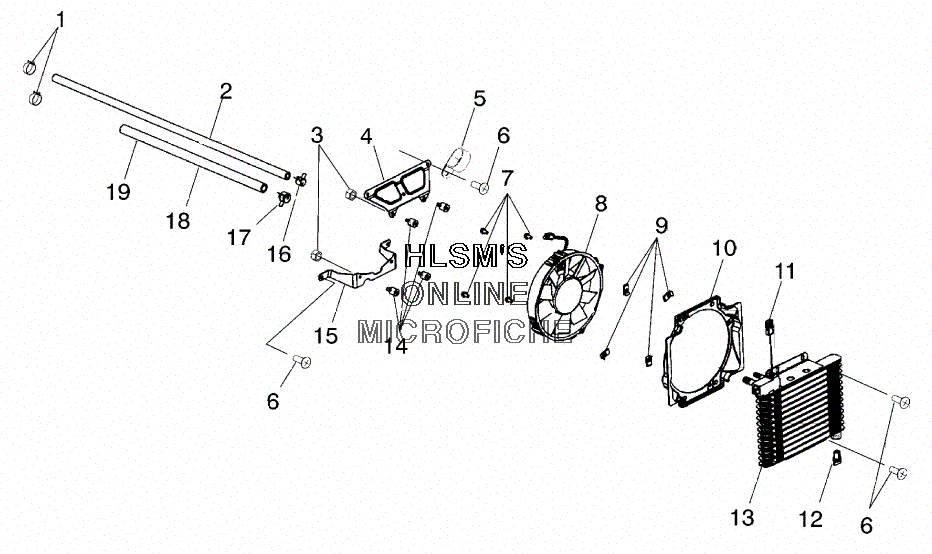

OIL COOLING (IF BUILT AFTER 1/01/00) для Polaris MAGNUM 325 4X4 HDS (A00CD32FA) - 2000 года выпуска
-
№АртикулНазвание
-
17080474 CLAMP, HOSECLAMP, HOSE
-
25411813 OIL HOSE, INTEGRATED VALVE KITOIL HOSE, INTEGRATED VALVE KIT
-
37542122 NUT, LOCKNUT, LOCK
-
45243783-067 BRKT,OIL COOLER TOP (BLACK)BRKT,OIL COOLER TOP (BLACK)
-
57080869 CLAMP-P, CUSHIONED (1.25'' I.D.)CLAMP-P, CUSHIONED (1.25'' I.D.)
-
67515158 SCREWSCREW
-
77517659 SCREWSCREW
-
82410157 FAN, MOTORFAN, MOTOR
-
97670111 CLIP, U,ZYCLIP, U,ZY
-
105433353 SHROUD, FANSHROUD, FAN
-
114010274 THERMISTERTHERMISTER
-
127052244 VALVE, PLASTIC DRAINVALVE, PLASTIC DRAIN
-
131240064 COOLER, OIL TO AIRCOOLER, OIL TO AIR
-
143021186 MOUNT, CARBURETOR (RUBBER)MOUNT, CARBURETOR (RUBBER)
-
155244069-067 BRACKET, OIL COOLER (LOWER/BLACK)BRACKET, OIL COOLER (LOWER/BLACK)
-
167080862 CLAMP, HOSE MUBEACLAMP, HOSE MUBEA
-
177080866 CLAMP, HOSE MUBEA 1/2''CLAMP, HOSE MUBEA 1/2''
-
185411768 OIL HOSE, INTEGRATED VALVE KITOIL HOSE, INTEGRATED VALVE KIT
-
198450086-07 TUBING, CONVOLUTED (5/8 ID/7CM) (OPT)TUBING, CONVOLUTED (5/8 ID/7CM) (OPT)
