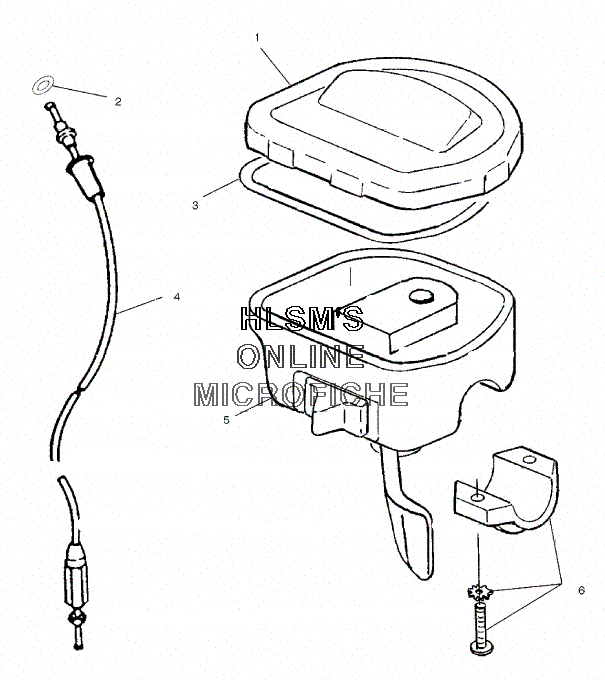

HANDLEBAR - THROTTLE ASSY. W/ CABLE для Polaris MAGNUM 325 4X4 (A00CD32AA) - 2000 года выпуска`
-
№АртикулНазвание
-
15433806 COVER, TROTTLE CONTROLCOVER, TROTTLE CONTROL
-
25410193 O RINGO RING
-
35411439 O-RINGO-RING
-
47080709 CABLE, THROTTLE, SNAP-IN, 4-CYCLE (IF BUILT BEFORE 2/10/99)CABLE, THROTTLE, SNAP-IN, 4-CYCLE (IF BUILT BEFORE 2/10/99)
-
47080857 CABLE, THROTTLE, SNAP-IN,1000MM (IF BUILT AFTER 2/10/99)CABLE, THROTTLE, SNAP-IN,1000MM (IF BUILT AFTER 2/10/99)
-
52010188 TROTTLE CONTROL ASSY, AWD (INCL.1,3,6)TROTTLE CONTROL ASSY, AWD (INCL.1,3,6)
-
62010191 THROTTLE CLAMP ASSYTHROTTLE CLAMP ASSY
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR
- BREATHER BOX
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CV JOINT - BTB
- CYLINDER
- DECALS
- DRIVESHAFT - INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FRONT - GEARCASE
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE SELECTOR MOUNTING
- HANDLEBAR
- • HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL COOLING (IF BUILT AFTER 1/01/00)
- OIL COOLING (IF BUILT BEFORE 1/01/00)
- OIL PUMP AND OIL FILTER
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- SHOCK ABSORBER
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ AXLE
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
