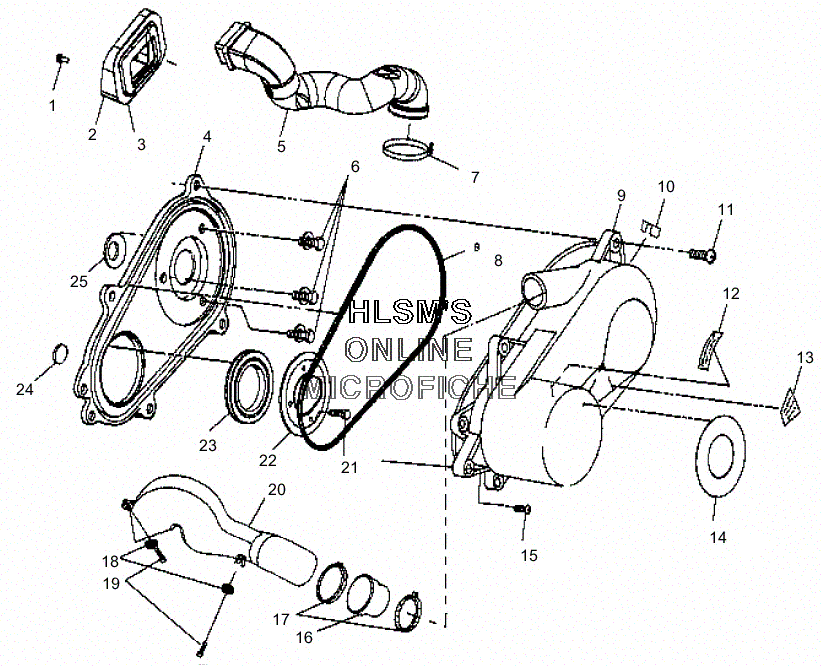

CLUTCH COVER для Polaris MAGNUM 325 2X4 (A00CB32CA) - 2000 года выпуска`
-
№АртикулНазвание
-
17512232 BOLTBOLT
-
22632116 FOAM, CLUTCH AIR INLET ASSEMBLYFOAM, CLUTCH AIR INLET ASSEMBLY
-
35433453 DUCTDUCT
-
42201520 COVER,CLUTCH INNER SVC (INCL. 8,11,15) (BUILT BEFORE 1/03/00)COVER,CLUTCH INNER SVC (INCL. 8,11,15) (BUILT BEFORE 1/03/00)
-
42201676 INNER CLUTCH COVER, SVC ASSY. (BUILT AFTER 1/03/00)INNER CLUTCH COVER, SVC ASSY. (BUILT AFTER 1/03/00)
-
55433363 DUCT, INLETDUCT, INLET
-
67517601 BOLT/WASHER, (1-1/8) (BUILT BEFORE 1/03/00)BOLT/WASHER, (1-1/8) (BUILT BEFORE 1/03/00)
-
67517599 BOLT/WASHER (.88) (IF BUILT AFTER 1/03/00)BOLT/WASHER (.88) (IF BUILT AFTER 1/03/00)
-
77080909 CLAMP, NARROW BAND (1.77/2.75) (1)CLAMP, NARROW BAND (1.77/2.75) (1)
-
85521301 SEAL, CLUTCHCOVERSEAL, CLUTCHCOVER
-
95433540 COVER, CLUTCH OUTER HV ST-801COVER, CLUTCH OUTER HV ST-801
-
95433451-328 COVER, CLUTCH OUTER HV (BLACK)COVER, CLUTCH OUTER HV (BLACK)
-
107670051 CLIP, CLUTCH COVERCLIP, CLUTCH COVER
-
117512093 SCREW (BUILT BEFORE 1/03/00)SCREW (BUILT BEFORE 1/03/00)
-
117512094 SCREW (BUILT AFTER 1/03/00)SCREW (BUILT AFTER 1/03/00)
-
127074946 DECAL (BUILT BEFORE 10/04/99)DECAL (BUILT BEFORE 10/04/99)
-
127078689 DECAL (BUILT AFTER 10/04/99)DECAL (BUILT AFTER 10/04/99)
-
137077377 DECALDECAL
-
147074782 DECAL, AUTO.TRANSMISSIONDECAL, AUTO.TRANSMISSION
-
157512094 SCREWSCREW
-
165411489 BOOT, DUCT HI-FLOWBOOT, DUCT HI-FLOW
-
177080761 STRAP, PANDUIT 14''STRAP, PANDUIT 14''
-
187558301 WASHERWASHER
-
197517386 SCREWSCREW
-
205433172 DUCT, AIR OUTLET CLUTCH (BUILT BEFORE 11/05/99)DUCT, AIR OUTLET CLUTCH (BUILT BEFORE 11/05/99)
-
205433744 DUCT, AIR OUTLET CLUTCH (BUILT AFTER 11/05/99)DUCT, AIR OUTLET CLUTCH (BUILT AFTER 11/05/99)
-
225240409-067 BRACKET CLUTCH SEALBRACKET CLUTCH SEAL
-
235410575 SEAL, COVER CASESEAL, COVER CASE
-
245411795 STOPPER, INNER CLUTCH COVERSTOPPER, INNER CLUTCH COVER
-
255410489 SEAL, COVER CASE (BUILT BEFORE 1/03/00)SEAL, COVER CASE (BUILT BEFORE 1/03/00)
-
255411901 SEAL, CLUTCH COVER TRANSMISSION (BUILT AFTER 1/03/00) 1SEAL, CLUTCH COVER TRANSMISSION (BUILT AFTER 1/03/00) 1
