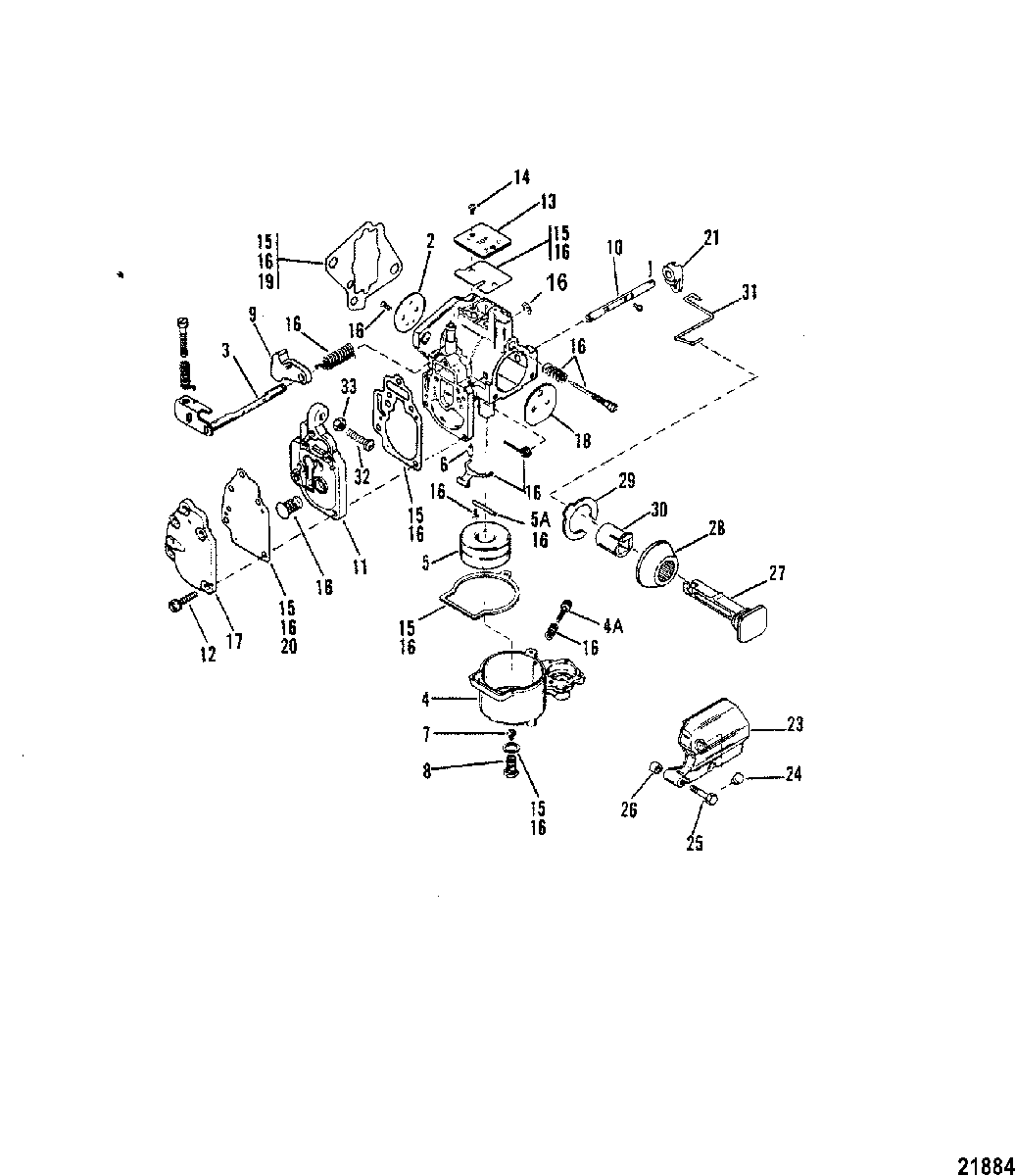

Carburetor, SeaPro/Marathon10 & 15 для Mercury - XR10 0D281000 THRU 0G760299

№

Артикул

Название
1

1392-817404T4 CARBURETOR
(WMC-42)

CARBURETOR
(WMC-42)

33 680 ₽
1

1392-817404T09 CARBURETOR
(WMC-50A-SEAPRO/MARATHON 10)

CARBURETOR
(WMC-50A-SEAPRO/MARATHON 10)

38 630 ₽
1

1392-817404T09 CARBURETOR
(WMC-50B-SEAPRO/MARATHON 10)

CARBURETOR
(WMC-50B-SEAPRO/MARATHON 10)

38 630 ₽
1

1392-851908T06 CARBURETOR
(WMC-55- SEAPRO/MARATHON 15)

CARBURETOR
(WMC-55- SEAPRO/MARATHON 15)

37 840 ₽
1

1392-851908T06 CARBURETOR
(WMC-55A- SEAPRO/MARATHON 15)

CARBURETOR
(WMC-55A- SEAPRO/MARATHON 15)

37 840 ₽
2

1395-823716 VALVE, Throttle
(WMC-42/55/55A)

VALVE, Throttle
(WMC-42/55/55A)

760 ₽
2

815133 VALVE, Throttle
(WMC-50/50A/50B)

VALVE, Throttle
(WMC-50/50A/50B)

0 ₽
3

19267 SHAFT, Throttle (INCLS. SCREW & SPRING)
(WMC-42/55/55A)

SHAFT, Throttle (INCLS. SCREW & SPRING)
(WMC-42/55/55A)

2 390 ₽
3

813022 SHAFT, Throttle (INCLS. SCREW & SPRING)
(WMC-50/50A/50B)

SHAFT, Throttle (INCLS. SCREW & SPRING)
(WMC-50/50A/50B)

3 670 ₽
4

1395-811353 BOWL, Fuel

BOWL, Fuel

0 ₽
4A

1395-811360 SCREW, Bowl Drain

SCREW, Bowl Drain

1 090 ₽
5

1395-91691 FLOAT

FLOAT

900 ₽
5A

F10064 SHAFT

SHAFT

180 ₽
6

98551 VALVE, Inlet Needle

VALVE, Inlet Needle

1 010 ₽
7

1399-4216 JET, (.064)
(WMC-42)

JET, (.064)
(WMC-42)

590 ₽
7

1395-6359 JET, (.052)
(WMC-50/50A/50B)

JET, (.052)
(WMC-50/50A/50B)

590 ₽
7

1395-6207 JET, (.072)
(WMC-55/55A)

JET, (.072)
(WMC-55/55A)

710 ₽
8

1395-9171 PLUG

PLUG

590 ₽
9

1395-811352 LEVER, Throttle
(WMC-42)

LEVER, Throttle
(WMC-42)

380 ₽
9

NSS NOT SOLD SEPARATE, Throttle Lever (Part of Reference #3)
(WMC-50/50A/50B/55/55A)

NOT SOLD SEPARATE, Throttle Lever (Part of Reference #3)
(WMC-50/50A/50B/55/55A)

0 ₽
10

1395-8113541 SHAFT, Choke

SHAFT, Choke

2 760 ₽
11

1395-9702 BODY

BODY

6 120 ₽
12

1395-9643 SCREW

SCREW

270 ₽
13

1395-9699 PLATE

PLATE

780 ₽
14

1395-9696 SCREW

SCREW

250 ₽
15

1395-97611 GASKET/DIAPHRAGM KIT

GASKET/DIAPHRAGM KIT

4 890 ₽
16

1395-8237072 REPAIR KIT

REPAIR KIT

7 560 ₽
17

1395-9637 COVER

COVER

2 480 ₽
18

1395-811806 VALVE, Choke

VALVE, Choke

670 ₽
19

27-192061 GASKET, Carburetor (USE WHERE APPLICABLE)

GASKET, Carburetor (USE WHERE APPLICABLE)

750 ₽
20

1395-9635 DIAPHRAGM/GASKET

DIAPHRAGM/GASKET

5 680 ₽
21

1395-811805 LEVER, Choke

LEVER, Choke

250 ₽
23

174421 COVER, Carburetor

COVER, Carburetor

2 590 ₽
24

19-47579 PLUG

PLUG

190 ₽
25

10-40056110 SCREW, (M5 x 30)

SCREW, (M5 x 30)

140 ₽
26

41750T INSERT

INSERT

290 ₽
27

817424 KNOB, Choke

KNOB, Choke

1 050 ₽
28

12804A1 BEZEL ASSEMBLY, Choke

BEZEL ASSEMBLY, Choke

1 610 ₽
29

53-11278 CLIP, Retaining

CLIP, Retaining

150 ₽
30

817426 INSERT, Choke Bezel

INSERT, Choke Bezel

900 ₽
31

817425 LINK, Choke

LINK, Choke

910 ₽
32

10-40056110 SCREW, (M5 x 30)

SCREW, (M5 x 30)

140 ₽
33

11-400211 NUT, (M5) Stainless Steel

NUT, (M5) Stainless Steel

210 ₽
-

27-42364A92 GASKET SET, Engine

GASKET SET, Engine

6 510 ₽
-

19072T88 POWERHEAD ASSEMBLY, Complete
SN# 9831799 & Below

POWERHEAD ASSEMBLY, Complete
SN# 9831799 & Below

210 080 ₽
-

19072T97 POWERHEAD ASSEMBLY
SN# USA-0G112450/BEL-9831800 & Up

POWERHEAD ASSEMBLY
SN# USA-0G112450/BEL-9831800 & Up

404 050 ₽
