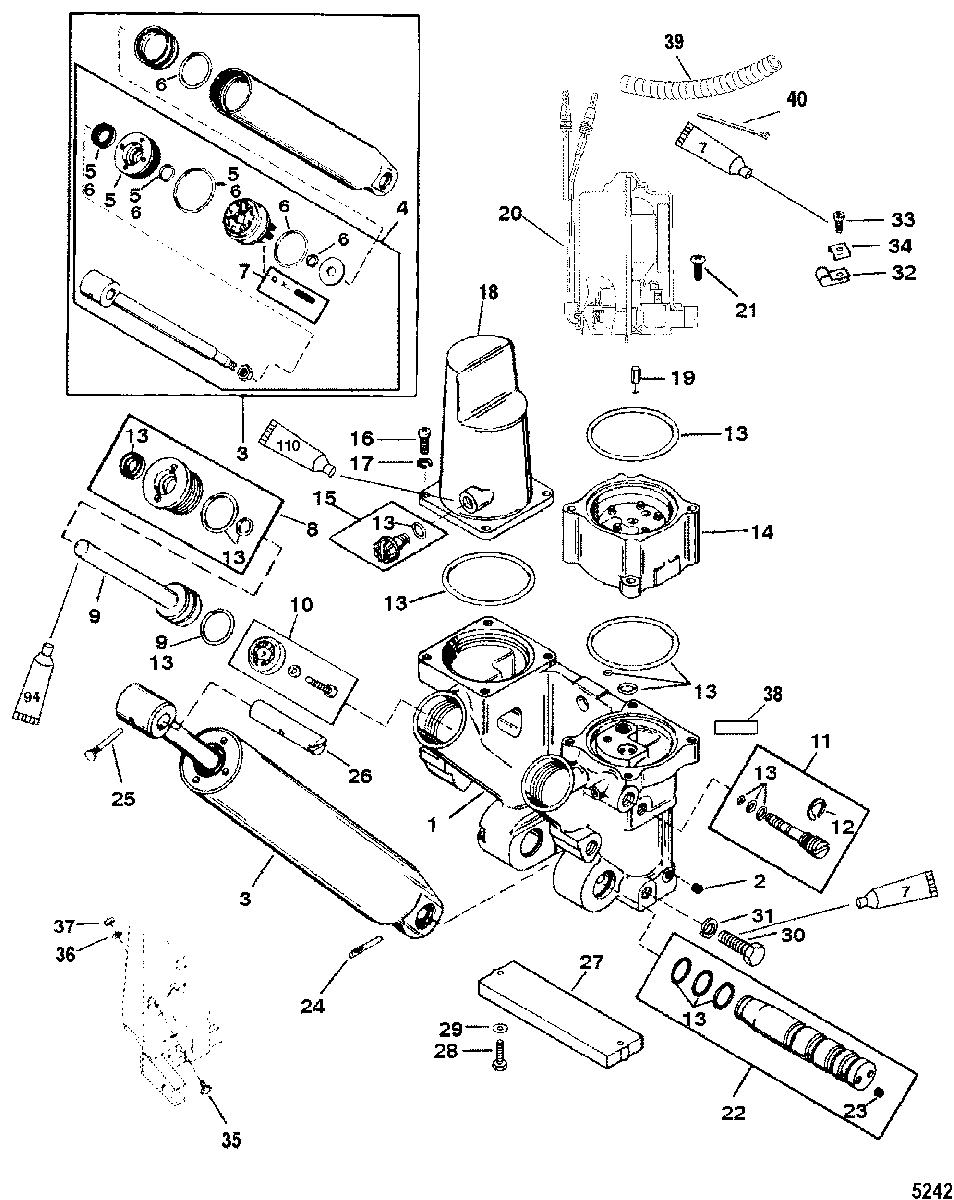

Power Trim Components (Removeable Pump Housing) для Mercury - XR-6 0G960500 THRU 1B226999
-
№АртикулНазвание
-
-855998A11 POWER TRIM ASSEMBLY, CompletePOWER TRIM ASSEMBLY, Complete
-
1811604F MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
222-878089 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
38M0078330 CYLINDER ASSEMBLY, TiltCYLINDER ASSEMBLY, Tilt
-
48M0078330 ROD, Trim PistonROD, Trim Piston
-
58M0090322 GUIDE KITGUIDE KIT
-
6811607A1 REPAIR KITREPAIR KIT
-
78M0078330 CHECK VALVE KITCHECK VALVE KIT
-
81100-8M0021648 GUIDE ASSEMBLYGUIDE ASSEMBLY
-
9878413A1 PISTON ASSEMBLY
(PORT)PISTON ASSEMBLY
(PORT) -
9878414T01 PISTON ASSEMBLY
(STBD.)PISTON ASSEMBLY
(STBD.) -
1035-12184A1 TRIM FILTER ASSEMBLYTRIM FILTER ASSEMBLY
-
11893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
1253-815949001 E RINGE RING
-
13811612A3 O-RING KITO-RING KIT
-
14811617T1 PUMPPUMP
-
1519-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
1610-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1712-4002315 WASHERWASHER
-
18811611 COVERCOVER
-
19828710 DRIVE JOINTDRIVE JOINT
-
208M0031551 TRIM MOTOR
(BREAKDOWN ON POWER TRIM MOTOR)TRIM MOTOR
(BREAKDOWN ON POWER TRIM MOTOR) -
2110-881768A1 SCREW
(LONG)SCREW
(LONG) -
2110-811616 SCREW
(SHORT)SCREW
(SHORT) -
22878241A03 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
2322-878089 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
2417-878267 PIN, GroovePIN, Groove
-
2517-821539 PIN, TrilobePIN, Trilobe
-
2699625002 SHAFTSHAFT
-
2797-818298Q1 ANODE KITANODE KIT
-
2810-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3010-4000377 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
3112-4002319 WASHERWASHER
-
3254-26550 CLAMPCLAMP
-
3310-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
348M0084613 C WASHERC WASHER
-
358M0045383 STRIKER PLATESTRIKER PLATE
-
3613-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3711-46335 NUT, (.375-24)NUT, (.375-24)
-
3837-435301 DECAL, Caution-Power TrimDECAL, Caution-Power Trim
-
3932-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
-
4054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
