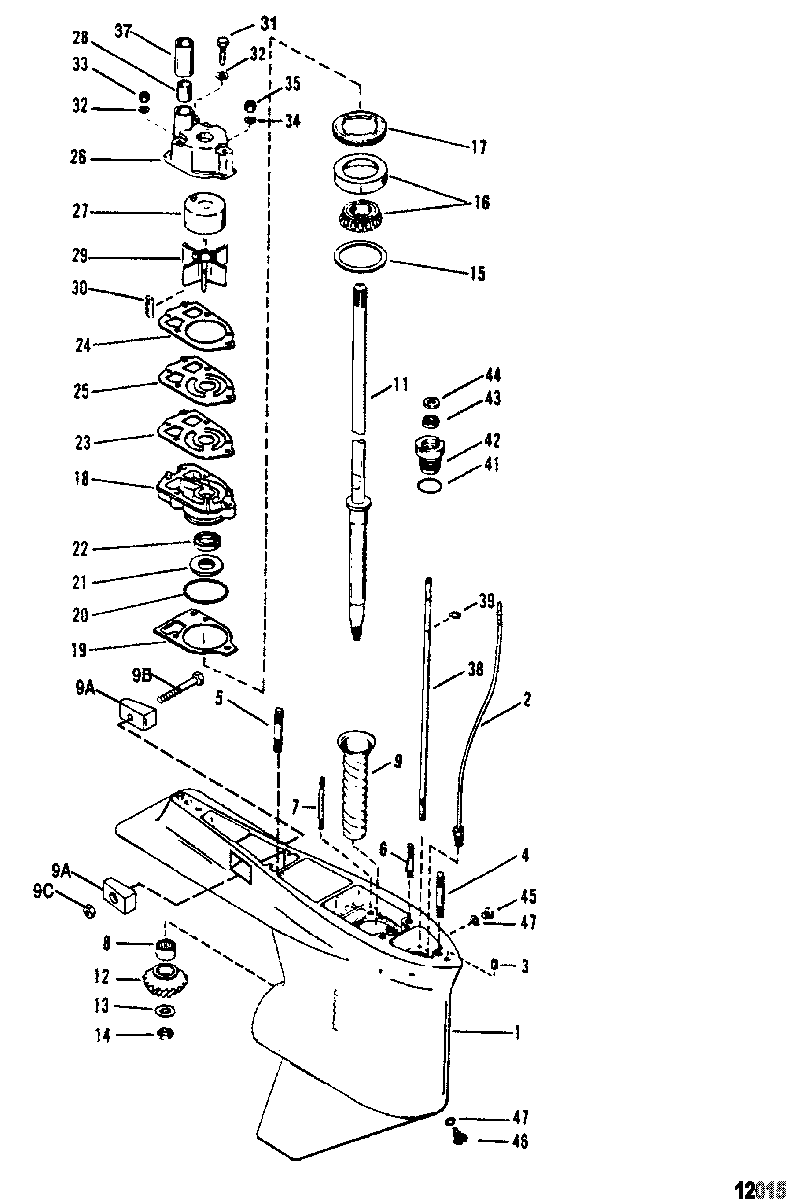

GEAR HOUSING(DRIVESHAFT) - COUNTER ROTATION для Mercury - XR-6 0D082000 THRU 0G303045
-
№АртикулНазвание
-
11647-9148T47 GEAR HOUSING ASSEMBLY (BASIC) (BLACK)
DESIGN II W/ANODESGEAR HOUSING ASSEMBLY (BASIC) (BLACK)
DESIGN II W/ANODES -
11647-9148T47 GEAR HOUSING ASSEMBLY (BASIC) (GRAY)
DESIGN II W/ANODESGEAR HOUSING ASSEMBLY (BASIC) (GRAY)
DESIGN II W/ANODES -
222-85822A10 CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)
-
317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
416-8M0034464 STUD, (.438 x 3.69)STUD, (.438 x 3.69)
-
516-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
616-8M0034463 STUD, (.312 x 3.38)STUD, (.312 x 3.38)
-
716-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
831-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
923-43998 SLEEVE (OLD DESIGN)SLEEVE (OLD DESIGN)
-
9A97-826134Q ANODE
DESIGN IIANODE
DESIGN II -
9B10-4000333 SCREW, (M6 x 40)
DESIGN IISCREW, (M6 x 40)
DESIGN II -
9C11-401386 NUT, (M6)
DESIGN IINUT, (M6)
DESIGN II -
1145-897625T DRIVESHAFTDRIVESHAFT
-
12N.S.S. Not Sold Separate, Pinion Gear (PART OF 43-18572A1 OR 43-18475A1)Not Sold Separate, Pinion Gear (PART OF 43-18572A1 OR 43-18475A1)
-
1312-92721 WASHERWASHER
-
1411-35921 NUT, (.625-18)NUT, (.625-18)
-
1515-8M0063267 SHIM SETSHIM SET
-
1631-36387A1 BEARING, RollerBEARING, Roller
-
178245191 RETAINERRETAINER
-
1846-8M0077147 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1927-426311 GASKETGASKET
-
2025-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
2126-89238 SEAL, OilSEAL, Oil
-
2226-16977 SEAL, OilSEAL, Oil
-
2327-8M0090319 GASKETGASKET
-
2427-858524 GASKETGASKET
-
25324351 FACE PLATEFACE PLATE
-
2646-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
2748752T INSERTINSERT
-
2826-38970 SEALSEAL
-
2947-89984T3 IMPELLERIMPELLER
-
3028-8M0032834 KEYKEY
-
3110-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
3212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3311-8267119 NUT, (.250-28)NUT, (.250-28)
-
3412-36001 WASHERWASHER
-
3511-13436 NUTNUT
-
3723-29804T SLEEVESLEEVE
-
38789022 SHIFT SHAFT (USE W/O E-RING)SHIFT SHAFT (USE W/O E-RING)
-
38789022 SHAFT
USE WITH E-RINGSHAFT
USE WITH E-RING -
3953-29641 E RING
USE WITH E-RINGE RING
USE WITH E-RING -
4012-191833 WASHER, FiberWASHER, Fiber
-
4125-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
4223-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
4326-8164641 SEAL, OilSEAL, Oil
-
4412-77674 WASHERWASHER
-
4510-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
4622-8M0058389 SCREW, MagneticSCREW, Magnetic
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-46-96148A8 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-89238A2 SEAL KITSEAL KIT
