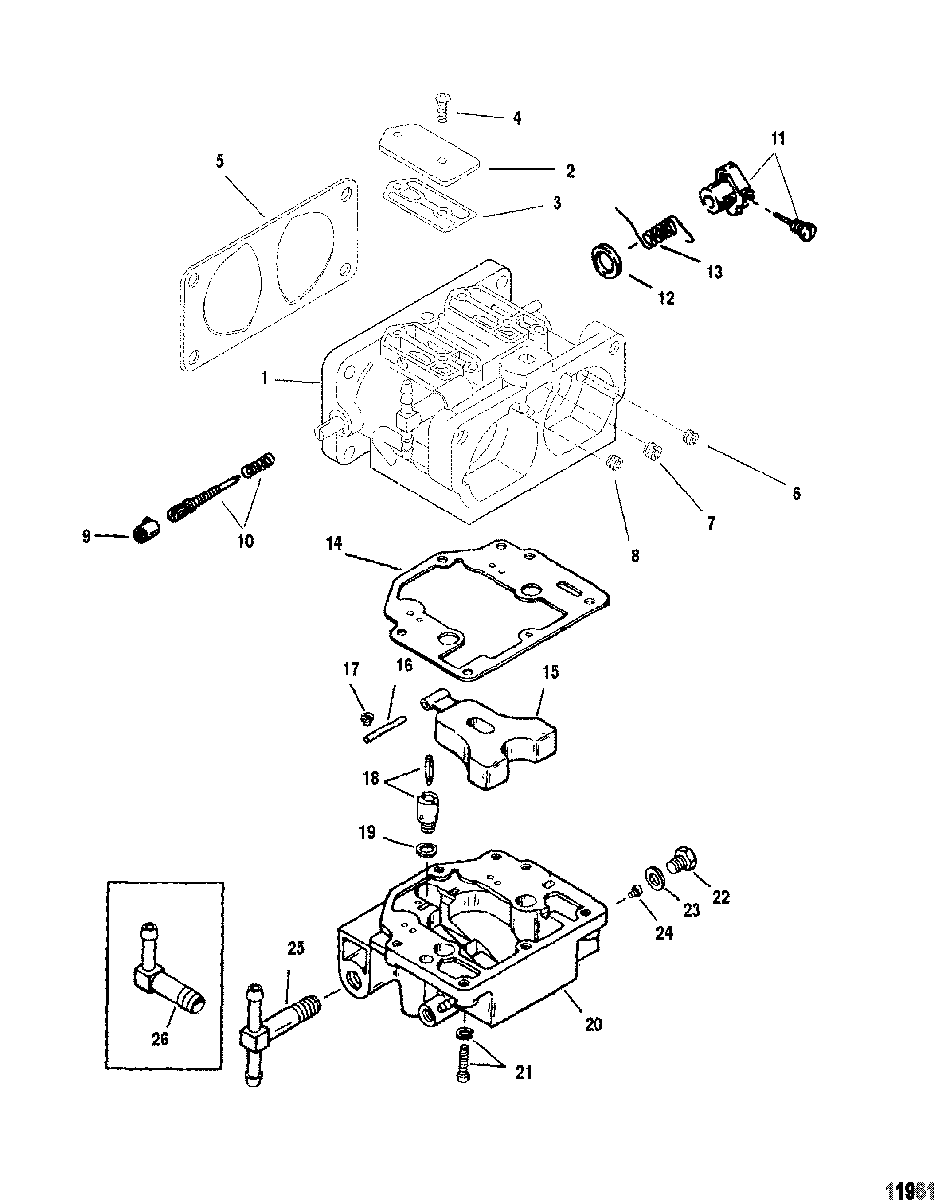

Carburetor для Mercury - V-200 0G303046 THRU 0G760299

№

Артикул

Название
1

3326-828272T37 CARBURETOR, Top
(135 - WMV-1)

CARBURETOR, Top
(135 - WMV-1)
1

3326-828272T38 CARBURETOR, Center
(135 - WMV-1)

CARBURETOR, Center
(135 - WMV-1)
1

3326-828272T39 CARBURETOR, Bottom
(135 - WMV-1)

CARBURETOR, Bottom
(135 - WMV-1)
1

3326-828272T40 CARBURETOR, Top
(150 - WMMV-2)

CARBURETOR, Top
(150 - WMMV-2)
1

3326-828272T41 CARBURETOR, Center
(150 - WMMV-2)

CARBURETOR, Center
(150 - WMMV-2)
1

3326-828272T42 CARBURETOR, Bottom
(150 - WMMV-2)

CARBURETOR, Bottom
(150 - WMMV-2)
1

3326-828272T43 CARBURETOR, Top
(XR6/Magnum III WMV-3)

CARBURETOR, Top
(XR6/Magnum III WMV-3)
1

3326-828272T44 CARBURETOR, Center
(XR6/Magnum III WMV-3)

CARBURETOR, Center
(XR6/Magnum III WMV-3)
1

3326-828272A45 CARBURETOR, Bottom
(XR6/Magnum III WMV-3)

CARBURETOR, Bottom
(XR6/Magnum III WMV-3)
1

3326-828272T46 CARBURETOR, Top
(175 - WMV-4)

CARBURETOR, Top
(175 - WMV-4)
1

3326-828272T47 CARBURETOR, Center
(175 - WMV-4)

CARBURETOR, Center
(175 - WMV-4)
1

3326-828272T48 CARBURETOR, Bottom
(175 - WMV-4)

CARBURETOR, Bottom
(175 - WMV-4)
1

3326-828272T49 CARBURETOR, Top
(200 - WMV-5)

CARBURETOR, Top
(200 - WMV-5)
1

3326-828272T50 CARBURETOR, Center
(200 - WMV-5)

CARBURETOR, Center
(200 - WMV-5)
1

3326-828272T51 CARBURETOR, Bottom
(200 - WMV-5)

CARBURETOR, Bottom
(200 - WMV-5)
1

3326-828272T37 CARBURETOR, Top
(135 - WMV-1A)

CARBURETOR, Top
(135 - WMV-1A)
1

3326-828272T38 CARBURETOR, Center
(135 - WMV-1A)

CARBURETOR, Center
(135 - WMV-1A)
1

3326-828272T39 CARBURETOR, Bottom
(135 - WMV-1A)

CARBURETOR, Bottom
(135 - WMV-1A)
1

3326-828272T40 CARBURETOR, Top
(150 - WMMV-2A)

CARBURETOR, Top
(150 - WMMV-2A)
1

3326-828272T41 CARBURETOR, Center
(150 - WMMV-2A)

CARBURETOR, Center
(150 - WMMV-2A)
1

3326-828272T42 CARBURETOR, Bottom
(150 - WMMV-2A)

CARBURETOR, Bottom
(150 - WMMV-2A)
1

3326-828272T43 CARBURETOR, Top
(XR6/Magnum III WMV-3A)

CARBURETOR, Top
(XR6/Magnum III WMV-3A)
1

3326-828272T44 CARBURETOR, Center
(XR6/Magnum III WMV-3A)

CARBURETOR, Center
(XR6/Magnum III WMV-3A)
1

3326-828272A45 CARBURETOR, Bottom
(XR6/Magnum III WMV-3A)

CARBURETOR, Bottom
(XR6/Magnum III WMV-3A)
1

3326-828272T46 CARBURETOR, Top
(175 - WMV-4A)

CARBURETOR, Top
(175 - WMV-4A)
1

3326-828272T47 CARBURETOR, Center
(175 - WMV-4A)

CARBURETOR, Center
(175 - WMV-4A)
1

3326-828272T48 CARBURETOR, Bottom
(175 - WMV-4A)

CARBURETOR, Bottom
(175 - WMV-4A)
1

3326-828272T49 CARBURETOR, Top
(200 - WMV-5A)

CARBURETOR, Top
(200 - WMV-5A)
1

3326-828272T50 CARBURETOR, Center
(200 - WMV-5A)

CARBURETOR, Center
(200 - WMV-5A)
1

3326-828272T51 CARBURETOR, Bottom
(200 - WMV-5A)

CARBURETOR, Bottom
(200 - WMV-5A)
2

1395-809743 COVER

COVER
3

1395-809758 GASKET

GASKET
4

1395-8087391 SCREW

SCREW
5

27-828292 GASKET

GASKET
6

1399-3026 JET, (.036)
(Top/Center) (135) (Port)

JET, (.036)
(Top/Center) (135) (Port)
6

1399-7570 JET, .040
(Bottom) (135) (Port)

JET, .040
(Bottom) (135) (Port)
6

1399-3251 JET, (.034)
(Top) (150) (Port)

JET, (.034)
(Top) (150) (Port)
6

1399-3251 JET, (.034)
(Center) (150) (Port)

JET, (.034)
(Center) (150) (Port)
6

815633038 JET, (.038)
(Bottom) (150) (Port)

JET, (.038)
(Bottom) (150) (Port)
6

815633042 JET, Idle Air Vent
(.042-Top/Center) (XR6/Magnum III) (Port)

JET, Idle Air Vent
(.042-Top/Center) (XR6/Magnum III) (Port)
6

815633048 JET, (.048)
(Bottom) (XR6/Magnum III) (Port)

JET, (.048)
(Bottom) (XR6/Magnum III) (Port)
6

810741 JET, (.030)
(Top/Center) (175) (Port)

JET, (.030)
(Top/Center) (175) (Port)
6

815633038 JET, (.038)
(Bottom) (175) (Port)

JET, (.038)
(Bottom) (175) (Port)
6

815633052 JET, (.052)
(Top) (200) (Port)

JET, (.052)
(Top) (200) (Port)
6

815633028 JET, (.028)
(Centered) (200) (Port)

JET, (.028)
(Centered) (200) (Port)
6

1399-3252 JET, (.032)
(Bottom) (200) (Port)

JET, (.032)
(Bottom) (200) (Port)
-

8107493 GASKET SET, Carburetor

GASKET SET, Carburetor
-

1395-8116913 REPAIR KIT, Carburetor

REPAIR KIT, Carburetor
-

27-815791A92 GASKET SET, Engine

GASKET SET, Engine
