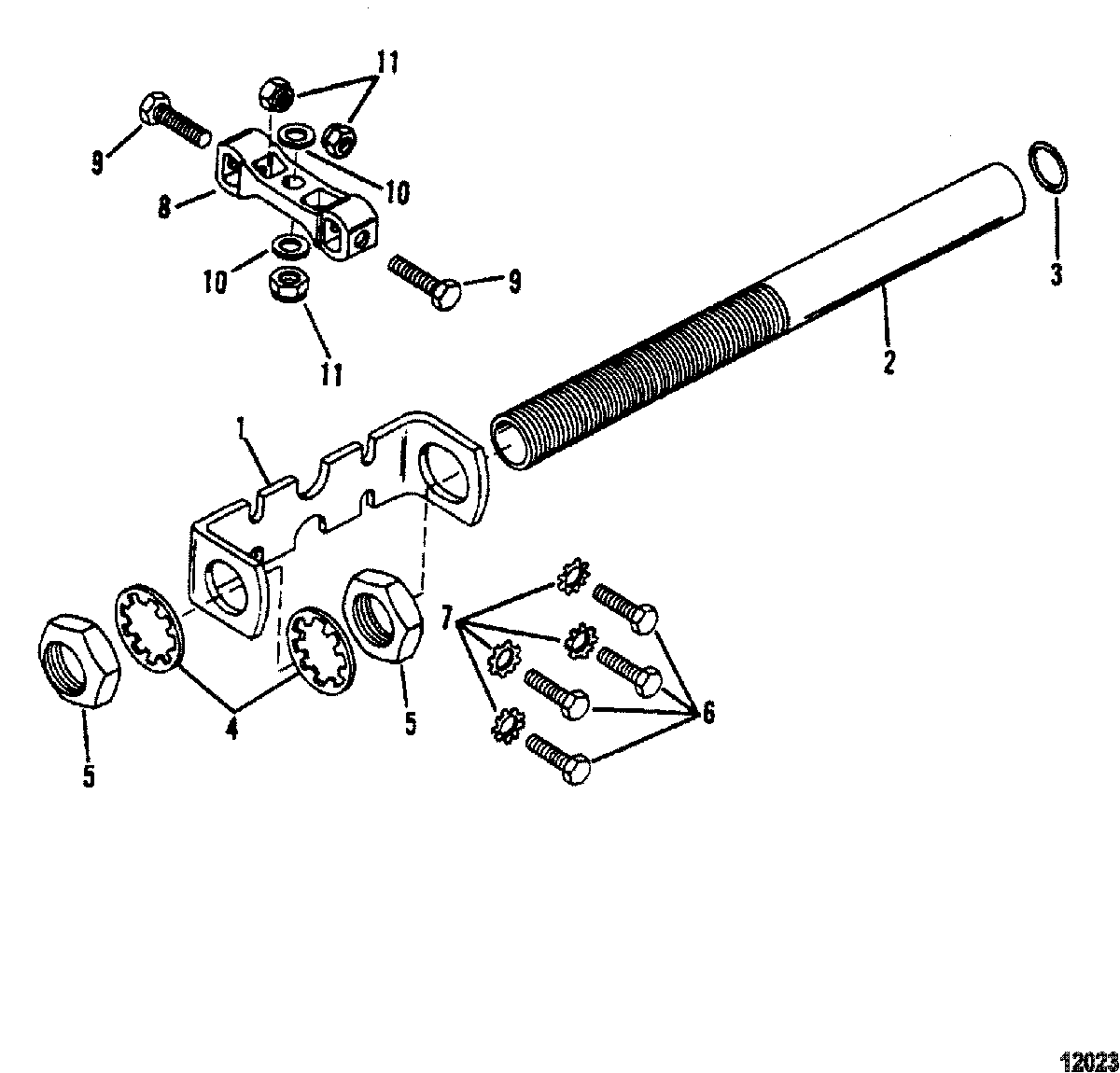

STEERING ATTACHING KIT для Mercury - V-200 0D082000 THRU 0G303045
-
№АртикулНазвание
-
-92876A8 ATTACHING KIT, Steering (SINGLE)ATTACHING KIT, Steering (SINGLE)
-
141055A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
271565A2 TUBE ASSEMBLYTUBE ASSEMBLY
-
325-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
413-821203 LOCKWASHERLOCKWASHER
-
511-8M0041651 NUT, (.875-14)NUT, (.875-14)
-
610-38601 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
713-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
8850791T COUPLINGCOUPLING
-
910-73732 SCREW, (.375-24 x 1.120)SCREW, (.375-24 x 1.120)
-
1012-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1111-8M0042636 NUT, (.375-24)NUT, (.375-24)
