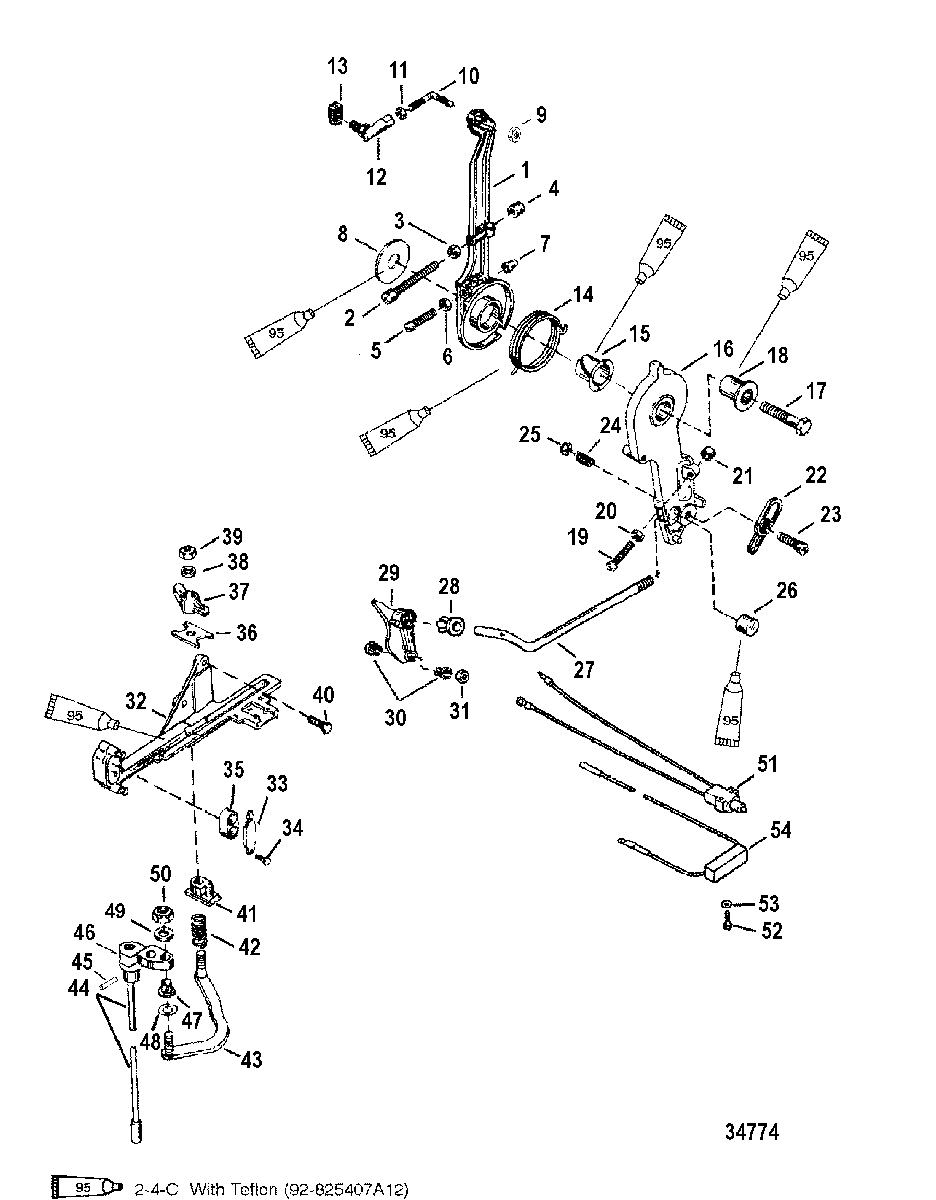

THROTTLE LEVER AND SHIFT SHAFT для Mercury - V-200 (EFI) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    41094A3 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 2
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 3
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 4
    26852 CAP, Nylon
    CAP, Nylon
  • 5
    10-13627 SCREW, (.190-32 x 1.250)
    SCREW, (.190-32 x 1.250)
  • 6
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 7
    48039 CAP
    CAP
  • 8
    12-46765 WASHER, (.390 x 1.50 x .120)
    WASHER, (.390 x 1.50 x .120)
  • 9
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 10
    76035 ROD
    ROD
  • 11
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 12
    62459T BALL JOINT ASSEMBLY
    BALL JOINT ASSEMBLY
  • 13
    74897T PIVOT
    PIVOT
  • 14
    24-823235 SPRING
    SPRING
  • 15
    23-55171 BUSHING
    BUSHING
  • 16
    410952 LEVER
    LEVER
  • 17
    10-818165 SCREW, (.375-16 x 1.75)
    SCREW, (.375-16 x 1.75)
  • 18
    23-55164 BUSHING
    BUSHING
  • 19
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 20
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 21
    26852 CAP, Nylon
    CAP, Nylon
  • 22
    39483 LATCH
    LATCH
  • 23
    10-69026 SCREW, (.250-28 x .880)
    SCREW, (.250-28 x .880)
  • 24
    24-20099 SPRING
    SPRING
  • 25
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 26
    14638 BARREL
    BARREL
  • 27
    14634 ROD
    ROD
  • 28
    23-932481 BUSHING
    BUSHING
  • 29
    8142392 CAM
    CAM
  • 30
    23-26856 BUSHING
    BUSHING
  • 31
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 32
    814283A2 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 33
    98889 LATCH
    LATCH
  • 34
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 35
    39519 CUP
    CUP
  • 36
    52100 WEAR PLATE
    WEAR PLATE
  • 37
    8M0036768 LATCH
    LATCH
  • 38
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 39
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 40
    10-53167T SCREW, (.312-18 x .880)
    SCREW, (.312-18 x .880)
  • 41
    814284 GUIDE BLOCK
    GUIDE BLOCK
  • 42
    24-20099 SPRING
    SPRING
  • 43
    67073A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 44
    79932A16 SHIFT SHAFT ASSEMBLY
    (LONG)
    SHIFT SHAFT ASSEMBLY
    (LONG)
  • 44
    79932A17 SHIFT SHAFT ASSEMBLY
    (X-LONG)
    SHIFT SHAFT ASSEMBLY
    (X-LONG)
  • 45
    NSS NOT SOLD SEPARATE, Roll Pin
    NOT SOLD SEPARATE, Roll Pin
  • 46
    NSS NOT SOLD SEPARATE, Lever-Shift Shaft-Upper
    NOT SOLD SEPARATE, Lever-Shift Shaft-Upper
  • 47
    23-26856 BUSHING
    BUSHING
  • 48
    13-29720 WAVE WASHER
    WAVE WASHER
  • 49
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 50
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 51
    87-814281A1 IDLE STABILIZING SHIFT KIT
    150/175
    IDLE STABILIZING SHIFT KIT
    150/175
  • 52
    10-77478 SCREW, (#6-32 x .875)
    150/175
    SCREW, (#6-32 x .875)
    150/175
  • 53
    12-27882 WASHER
    150/175
    WASHER
    150/175
  • 54
    17461A3 RESISTOR MODULE
    150/175
    RESISTOR MODULE
    150/175
