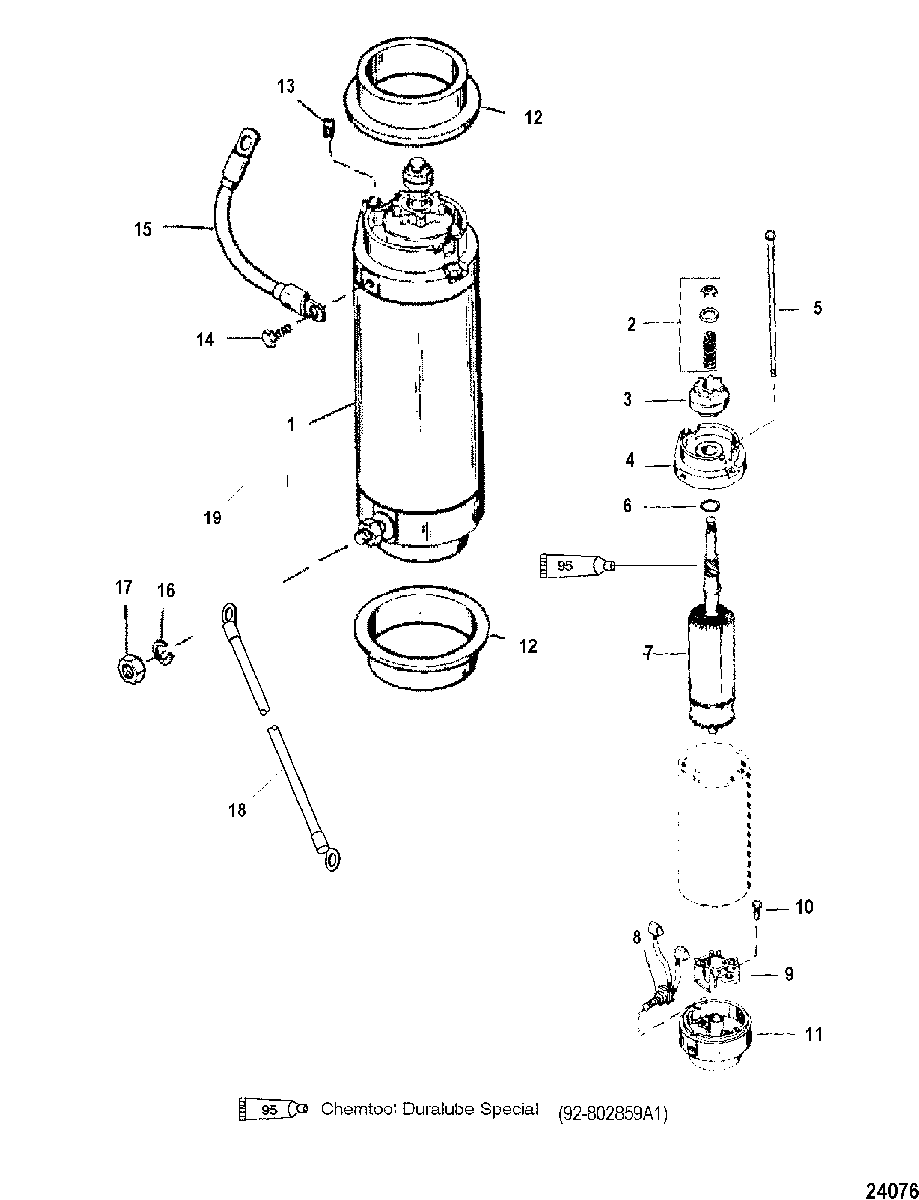

STARTER MOTOR(CENTRIFUGAL BENDIX) для Mercury - V-200 EFI (2.5L) 0T409000 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    50-893893 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    90645 DRIVE KIT
    DRIVE KIT
  • 3
    13310T1 PINION ASSEMBLY
    PINION ASSEMBLY
  • 4
    75660 PLATE
    PLATE
  • 5
    10-749681 THRU BOLT
    THRU BOLT
  • 6
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 7
    792161 ARMATURE
    ARMATURE
  • 8
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 9
    898265014 HOLDER
    HOLDER
  • 10
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 11
    15386001 END CAP
    END CAP
  • 12
    23-8M0034918 COLLAR
    COLLAR
  • 13
    8M0043376 STOP, Rubber
    STOP, Rubber
  • 14
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 15
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black
    CABLE ASSEMBLY, (6.00 Inches) Black
  • 16
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 17
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 18
    84-88439A25 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 19
    37-8272822 DECAL, Warning, High Voltage
    DECAL, Warning, High Voltage
