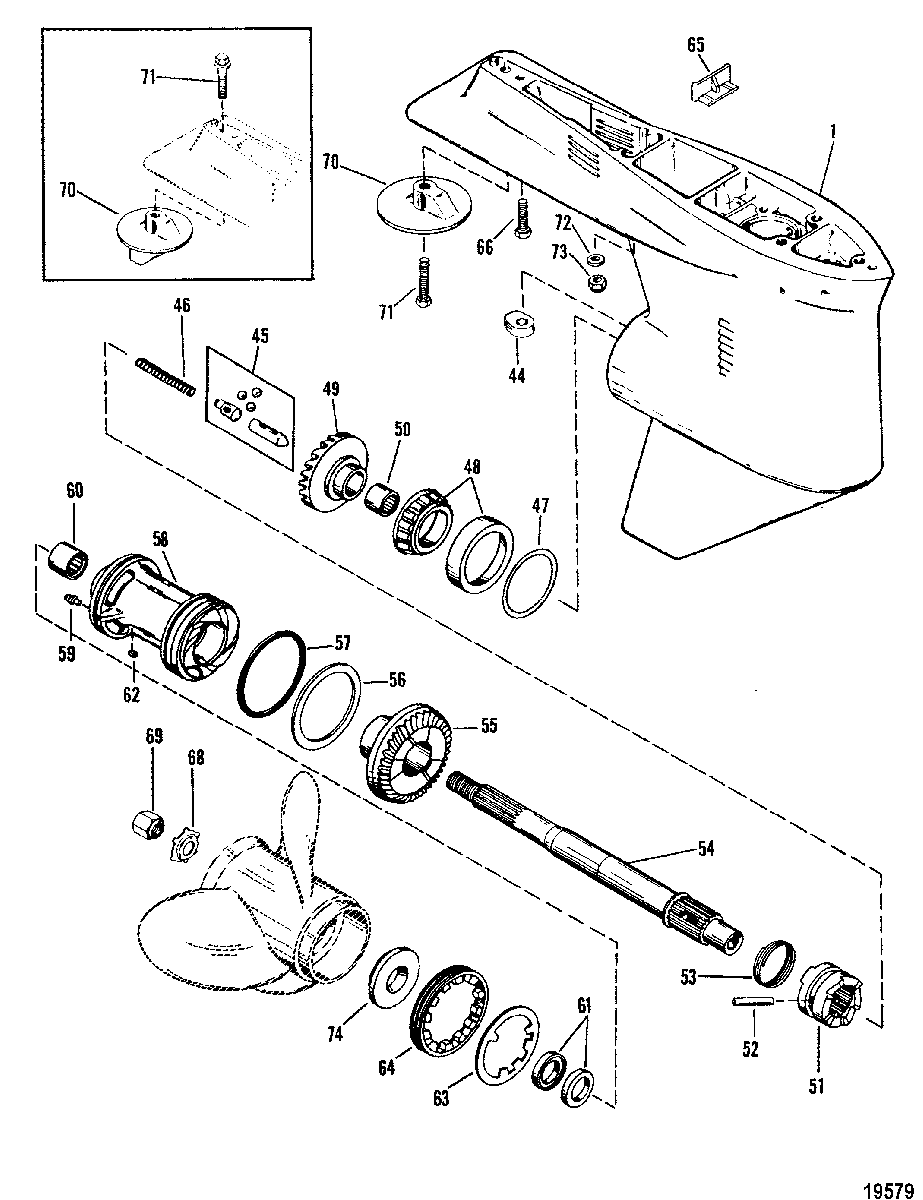

Gear Housing(Propshaft)(XR4/Magnum II) для Mercury - V-200 (2.5L) 1991 ONLY 0C291520 THRU 0D081999

  • №
    Артикул
    Название
  • -
    1674-814247T3 GEAR HOUSING BLACK
    COMPLETE
    GEAR HOUSING BLACK
    COMPLETE
  • -
    1674-814247T3 GEAR HOUSING GRAY
    COMPLETE
    GEAR HOUSING GRAY
    COMPLETE
  • -
    1674-814247T3 GEAR HOUSING BLACK
    COMPLETE
    GEAR HOUSING BLACK
    COMPLETE
  • -
    1674-814247T3 GEAR HOUSING GRAY
    COMPLETE
    GEAR HOUSING GRAY
    COMPLETE
  • 1
    1674-814247T8 GEAR HOUSING (BLACK)
    BASIC
    GEAR HOUSING (BLACK)
    BASIC
  • 1
    1674-814247T9 GEAR HOUSING (GRAY)
    BASIC
    GEAR HOUSING (GRAY)
    BASIC
  • 1
    1674-814247T1 GEAR HOUSING, Basic Black
    GEAR HOUSING, Basic Black
  • 1
    1674-814247T1 GEAR HOUSING , Basic Gray
    GEAR HOUSING , Basic Gray
  • 44
    760394 SHIFT CAM
    SHIFT CAM
  • 45
    850315A1 CAM FOLLOWER ASSEMBLY
    CAM FOLLOWER ASSEMBLY
  • 46
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 47
    15-8M0063266 SHIM SET
    SHIM SET
  • 48
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 49
    43-16279A2 FORWARD GEAR
    FORWARD GEAR
  • 50
    31-30895T ROLLER BEARING
    ROLLER BEARING
  • 51
    52-822539T CLUTCH
    CLUTCH
  • 52
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 53
    24-30893 SPRING
    SPRING
  • 54
    44-12238T PROPELLER SHAFT
    PROPELLER SHAFT
  • 55
    NSS NOT SOLD SEPARATE, Reverse Gear (Part of 43-16279A2)
    NOT SOLD SEPARATE, Reverse Gear (Part of 43-16279A2)
  • 56
    12-76358 THRUST WASHER, BEARING CARRIER
    THRUST WASHER, BEARING CARRIER
  • 57
    25-29976 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 58
    41529T2 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 59
    22-98727 FITTING, Grease
    FITTING, Grease
  • 60
    31-30956T ROLLER BEARING, BEARING CARRIER
    ROLLER BEARING, BEARING CARRIER
  • 61
    26-76868 SEAL
    SEAL
  • 62
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 63
    14-52700 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 64
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 65
    8M0039169 FILLER BLOCK
    FILLER BLOCK
  • 66
    10-30206 SCREW, (.375-16 x 1.00) (SOCKET HEAD)
    SCREW, (.375-16 x 1.00) (SOCKET HEAD)
  • 66
    10-65210 SCREW, (.375-16 x 1.00) (HEX HEAD)
    SCREW, (.375-16 x 1.00) (HEX HEAD)
  • 68
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 69
    11-52707Q1 NUT, Propeller
    NUT, Propeller
  • 70
    97-15300 TRIM TAB
    TRIM TAB
  • 71
    10-15797 SCREW, ANODIC PLATE
    SCREW, ANODIC PLATE
  • 70
    97-31640Q4 TRIM TAB ASSEMBLY
    TRIM TAB ASSEMBLY
  • 71
    10-66024 SCREW, (.437-14 x 1.75)
    SCREW, (.437-14 x 1.75)
  • 72
    12-45176 WASHER, (.453 x .812 x .105), DRIVE SHAFT HOUSING STUDS
    WASHER, (.453 x .812 x .105), DRIVE SHAFT HOUSING STUDS
  • 73
    11-34933 NUT, (.437-20), DRIVE SHAFT HOUSING STUDS
    NUT, (.437-20), DRIVE SHAFT HOUSING STUDS
  • 74
    13191Q01 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
  • -
    27-815791A92 GASKET SET
    (135/150)
    GASKET SET
    (135/150)
  • -
    27-815791A92 GASKET SET
    (XR4/Magnum II/175)
    GASKET SET
    (XR4/Magnum II/175)
  • -
    27-815791A92 GASKET SET
    (200)
    GASKET SET
    (200)
